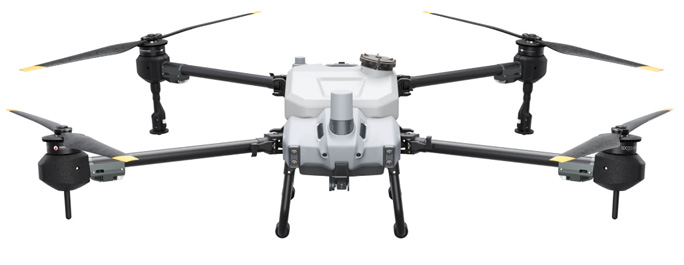

AGRAS T20P
The AGRAS T20P is light and nimble while packing powerful performance. It can carry a spraying payload of up to 5.28 Gallons and a spreading payload of up to 9.2 Gallons, and is equipped with a Dual Atomized Spraying System, DJI Terra, Active Phased Array Radar and Binocular Vision. It supports multiple operations from surveying, mapping, to spraying and spreading, offering superior performance and versatility at best value.
Light and Nimble
The AGRAS T20P features a four-rotator and new tilted truss design that reduces its size by 77% for easy handling by one person. Perfect size for optimal function.
Spraying System
Dual atomization for even spraying
Magnetic Drive Impeller Pump
The new magnetic transmission design completely isolates the pesticide from the motor, making the aircraft corrosion-proof and ultra-durable. Quick disassembly by hand for easy cleaning.
Dual Atomized Centrifugal Sprinkler
The dual-atomized spray disc ensures even droplets and more efficient pesticide usage. The proprietary centrifugal valve prevents leakage, avoids over-fertilization, pollution, and reduces pesticide use while protecting the environment.
Enhanced spreading efficiency for superior performance
T20P Spreading System 9.2 Gallon
1 tonne of fertilizer per hour
The T20P Spreading System now supports greater payload weight and capacity of up to 9.2 Gallons.
Real-time weighing
The aircraft is equipped with a weighing sensor that monitors the spread quantity and remaining payload
Fast disassembly and cleaning
The spreading device can be dismantled in 3 minutes and washed with water.
Omnidirectional Obstacle Sensing
Active Phased Array Radar + Binocular Vision
Mapping, spraying and spreading, all in one
The AGRAS T20P combines mapping(with D-RTK 2 mobile station), spraying and spreading functions, while its UHD camera and adjustable gimbal enable easy capture of your desired view. Farmland and orchard images can be captured in real time, and local maps can be generated using the remote control without fully internet connection. The system detects land boundaries and obstacles automatically, for quicker planning of flight routes over farmland and hilly orchards.
Turbocharged remote controller for effortless mapping
The 8-core processor makes mapping of 6.67 hectares possible in 10 minutes. The payload for each flight is maximized with intelligent route planning, for greater efficiency. The large 7-inch high brightness screen offers a broader view with refined detail. A wide range of custom physical buttons provides flexible control.
Robustly tested for ultimate reliability
The core components are designed to withstand complex and harsh farmland environments. They have passed a host of rigorous tests such as waterproofing, dust prevention, corrosion prevention, high and low temperature, and aging tests, to ensure peace of mind for the user.
Ultra-fast charging
12000W Multifunctional Inverter Generator with new EFI technology and 15% fuel saving. The charging station produces 1500W AC output, sufficient to power the remote controller, water pump, reloader, lights, and other components. Fast charging of two batteries in 9 minutes, with the 13000mAh Intelligent Flight Battery
D12000I Multifunctional Inverter Generator
20L tank charges 60 batteries
- Capacity up to 30000 mAh
- 9-min ultra-fast charging
- 220V/380V utility power input
- (Advanced Pro Combo supports)
Smart Charger
- Battery Station provides 7,200 watts of charging power and can charge a battery in 10 minutes. It also has a backup power system and supports dual-channel alternated charging with power adaptation and safer operation.
T20P Intelligent Flight Battery
- Capacity up to 13,000 mAh
- 11.5C while discharging, 6C while charging
- warranty coverage of 1,500 charging cycles
DJI Agras Intelligent Cloud
With the DJI Agricultural Cloud Platform and P4 Multispectra, PHANTOM 4 RTK or AGRAS aircraft, users can carry out field patrols, land leveling monitoring, seedling identification, long-term growth analysis, and variable spraying/spreading operations using prescription maps. Paired with the DJI P4 Multispectral, the platform allows you to perform variable spraying/spreading operations with precision, based on the full-cycle growth of the crops and the farmland’s prescription map. The feature is useful in for the spraying of fertilizers on rice, fertilizers and defoliants on cotton crops, and nutrient solutions on soybeans and corn.
