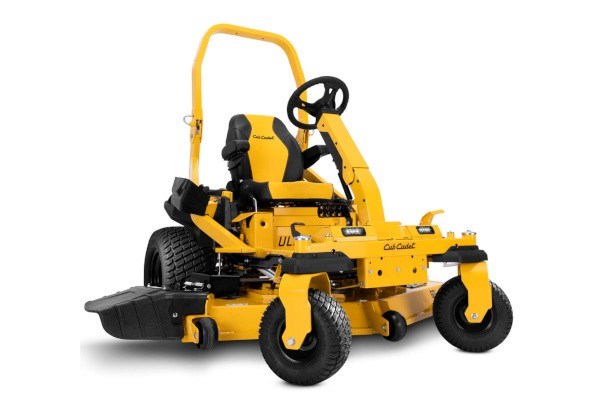

Cub Cadet ZTXS5 60
The Cub Cadet® Ultima Series ZTXS5 60 is a 60-inch zero-turn lawn mower with a 24 HP engine. It features an AeroForce™ Max reinforced fabricated deck, which is designed to give you a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. The Synchro-Steer™ technology provides 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees.
- Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
- A 24 HP* Kawasaki FS Series V-twin V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
- Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8.5 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
- A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear
Shopping Tools
ZTXS5 60 Features & Benefits
Excellent Stability On Hills
Synchro-Steer™ technology delivers four-wheel control, providing straight-line mowing on hillsides and slopes up to 20-degrees
Premium Cut
AeroForce™ Max reinforced fabricated steel cutting decks designed to deliver high quality results and mow a wide area of grass to help minimize cutting time.
Strong, Durable Frame
A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system helps protect against wear and tear
Turf Master® Tires
Turf Master® tires designed to help minimize turfing and provide traction and stability on hills.
Ride In Comfort
SoftTouch steering wheel and an adjustable steering column that tilts for easy steering and great handling on hills and uneven terrain.
Easy Maintenance
An open frame design and hinged/removable floor pan allow easy access to the deck and engine for easy maintenance
ZTXS5 60 Specs & Compare
Engine
- Engine Brand - Kawasaki®
- Engine Model - FS Series
- Engine Model Number - 730R
- Engine Displacement - 726cc
- Engine Output - 24HP
- Starter Type - Electric
- Fuel Tank Capacity - 5.5 gal. US (20.82 L)
- Cylinders - Twin
- Engine Start - Ignition Key
- Engine Oil Capacity - 2.1 qt US ( 2 L)
- Lubrication - Fully pressurized
- Charging System - 12 amp regulated
- Fuel Gauge - Yes
- Governor - Mechanical
- Choke - Choke-a-matic
- Air Filter - Single element
- Oil Filter - Yes
- Fuel Delivery - Carburetor
Battery
- Battery - 210 CCA
- Battery Type - AGM (Absorbent Glass Mat)
- Battery Voltage - 12V
Drive System
- Transmission - Hydro-Gear ZT 3200
- Forward Speed - 8.5 MPH / 13.7 km/h
- Reverse Speed - 3.5 MPH / 5.6 km/h
- Drive System - Hydrostatic
Cutting Deck
- Deck Cutting Width - 60 in
- Deck Wash - No
- Deck Material - 10-gauge steel with 2-gauge reinforcement
- Deck Engagement (PTO) - Electric
- Deck Construction - Fabricated
- Blade(s) - Three
- Deck Lift - Foot pedal with Dial Adjust
- Cutting Height Range - 1" - 4.75"
- Anti-Scalping - Three gauge wheels
- Deck Positions - 17
Chassis
- Frame - 1.5" x 3" tubular steel
- Turning Radius - 0°
- ROPS - Yes
- Rear Tow Hitch - Yes
- Corrosion Protection - Yes
Controls
- Cruise Control - No
- Brakes - Disc
- Steering Control - Steering Wheel
Comfort
- Seat Type - 24" high back
- Armrests - Yes
- Seat Adjustment - Lever
- Front Caster Suspension - No
Wheels
- Rear Tires - 23"x 12"-12"
- Front Tires - 13"x 6.5"-6"
- Tire Tread - Turf Master / Multi Trac
Additional Specifications
- Hour Meter - Yes
- Mulch Kit - Available separately
- Headlight(s) - Dual-LED
- Cup Holder - Yes
- Operator Presence System - Yes
- Parking Brake - Foot Controlled
- Model Number - 47RKCAB8A10
Specifications
- Series - Ultima Series™ ZTXS
Disclaimer
- Specifications
Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website. - Horsepower
As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
