Case IH Products Magnum 380 RowTrac

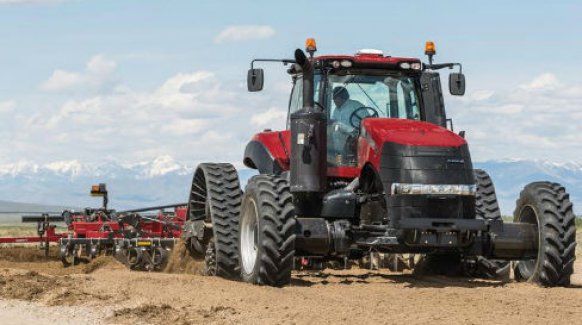

Case IH Products Magnum 380 RowTrac for sale at H&R Agri-Power

Double tap to zoom

Case IH Products Magnum 380 RowTrac for sale at H&R Agri-Power



Efficient power. Increased productivity. Operator comfort.
The high horsepower, 4WD Magnum series delivers what you need most when field conditions are tough.

Maximum Versatility for the Way You Farm


  • A fixed-frame row crop machine that turns like a traditional tractor, yet floats like a Quadtrac.
  • With 7 different row crop settings, the Magnum Rowtrac can be customized to fit between nearly any row spacing to reduce the compaction without damaging crops.
  • Available on Magnum 310, 340, and 380.



Field Leading Power and Performance
Case IH Magnum tractor 6.7 and 8.7L engines combine class-leading horsepower with proven emissions technology. What does that mean to you? Optimum power and fuel efficiency from an engine that has a legacy of performing in the toughest agricultural applications.

Reliable and Durable
FPT engines are developed and tested in Burr Ridge, Illinois. Our 6.7 and 8.7 L engines have clocked over 25 million hours on North American farms, field-tested and proven in the conditions you face.

Power Growth for Tough Operations
FPT engines are designed to develop up to 14% power growth, providing the power you need when you need it. They also feature a power boost of up to 35 additional horsepower to maintain speed and productivity with PTO applications.

Powerful and Proven
Case IH has been committed to an SCR-only solution for its unmatched overall fluid efficiency and power. Plus, it eliminates the need for additional components such as DPF and CEGR. You can enjoy greater productivity since the system allows for 600 hours between oil changes and doesn’t require regeneration.

Fuel Efficiency Without Compromise
With industry-exclusive options, Magnum engines can offer the next level of innovation like engine braking, which reduces drivetrain wear and improves machine control. Transmission


Power that Puts You in Total Control
Today’s powerful lineup of Magnum tractors is engineered to make your job easier and more productive, allowing you to keep up with the demands of farming. And, with two industry-leading transmissions to choose from, you can be assured you have the most efficient power for your operation.

CVXDrive Transmission

Total Power Control
Industry leading CVXDrive Transmission delivers uninterrupted power to the ground, incorporating three ranges to be more efficient and deliver more power for tough jobs. Plus, with ActiveStop (or power neutral), the engine holds the tractor in place, letting you more easily start and stop on inclines without using the clutch or brake.

Simple Operation
Go from zero to 25 mph standard (30 mph opt.) simply by moving a lever. CVXDrive automatically selects the best transmission range for the desired speed or load, eliminating the need for clutching and shifting.

Maximum Fuel Efficiency
In combination with the Diesel Saver APM system, CVXDrive automatically chooses the most fuel efficient combination of engine speed and drivetrain selection to save fuel and reduce costs.

PowerDrive Powershift Transmission

Ultra-Smooth Shifting & Power Transfer
Proven 19-speed full powershift transmission delivers ultra-smooth shifting and power transfer for field or road, allowing for maximum productivity.

Fuel Saving
Diesel SaverTM Auto Productivity Management (APM) allows maximum fuel efficiency by managing the engine RPM and transmission speed. You set the speed, rpm and shift frequency, and your transmission does the rest, so the job gets done faster and at the lowest possible cost.

Durable & Reliable
Powershift transmissions are sized for high horsepower demands, to achieve maximum reliability and durability - even in heavy draft load applications.


Make Case IH
Model Magnum 380 Rowtrac (2018-Present)
Engine Performance
Advertised Engine Power, Rated, hp (kW) 380 (283)
Maximum Engine Power, hp (kW) 435 (324)
Rated Engine Speed, rpm 2000
Power Boost, hp (kW) 55 (41)
Fuel Tank capacity, gal (L) 178 (674)
Diesel Exhaust Fluid (DEF) tank capacity, gal (L) 26 (99)
PTO Performance
PTO Horsepower, Basic / Optional Transmission, hp (kW) 315 (235)
PTO Speeds, rpm 1000 std; 540 / 1000 opt
PTO operational Type (Independent; Live; Continuous) Independent
Basic Engine
Engine Make Case IH FPT
Engine Model 8.7 L
Number of Cylinders 6
Displacement, cu in (L) 531 (8.7)
Engine Bore, in (mm) 4.61 (117)
Engine Stroke, in (mm) 5.31 (135)
Block Design, Replaceable Liners Wet liners
Aspiration, Turbocharged or Naturally Aspirated eVGT Turbocharged, Aftercooled
Fuel System
Fuel System Description High Pressure Common Rail
Fuel System Control, Electronic or Mechanical Electronic
Fuel Injection to combustion chamber, Direct or Indirect Direct
Emission and Exhaust Treatment
Emission Level, US EPA Tier Tier 4B / Final
Selective Catalytic Reduction (SCR) w/Diesel Exhaust Fluid (DEF) SCR w/ DEF
Exhaust Gas Recirculation (EGR) No
Cleanup Catalyst (CUC) CUC standard
Diesel Oxidation Catalyst (DOC) DOC standard
Diesel Particulate Filter (DPF) No
Exhaust Pipe, Vertical stack or Horizontal Vertical stack
Cooling System
Fan Drive Type BorgWarner Visctronic
Electrical System
System Rating, Volts 12
Alternator Rating, Amps 200
Basic Transmission Configuration
Manufacturer's Description CVXDrive
Transmission Type Continuously variable
Number of Forward / Reverse Speeds Infinite, 4F / 2R ranges
Maximum Speed Forward, mph (kph) 25 (40)
Creeper Range Available Standard with CVXDrive
Shuttle (Forward-Reverse) Available Yes
Optional Transmission 1
Manufacturer's Description No option
Transmission Type No option
Number of Forward / Reverse Speeds No option
Optional Transmission 2
Manufacturer's Description No option
Transmission Type No option
Number of Forward / Reverse Speeds No option
Wheel or Track Configuration
Drive Wheels or Tracks; 2WD, 4WD, 2WD / 4WD, 2 Tracks or 4 Tracks 2 Rear tracks + 2 MFD front tires
Steering Configuration: Front Steer, Frame Articulated, or Track-type Steer Front Steer
Rear Axle Assembly
Final Drive Location and Description Inboard / Planetary
Axle Output End, Flange or Bar Flange w/ drive sprocket
Axle Bar Diameter, in (mm) No bar axle
Front Axle
Suspended Front Axle Available Optional
Service Brake Type Wet disc
Hydraulic System
Hydraulic System Type Pressure-flow compensating (PFC)
Main Hydraulic Pump Type Variable Displacement
Implement Pump Flow, gpm (Lpm) 44 (166)
Optional Pump Flow, gpm (Lpm) 59 (224) or 75 (282)
Number of Standard Remote Valves 4 std.; 5th or 6th opt.
3-Point Hitch Features
3-Point Hitch Category Category 3 / 4N
Optional Hitch Category No 3N setting w/quick coupler
Draft Sensing or Lift Control Electronic position and/or draft control
Draft Link Ends Telescopic Adjustable quick coupler
3-Point Hitch Lift Capacity
Standard Lift Capacity 24 Inches behind pin, lb (kg) 19,900 (9026), quick coupler
Optional Lift Capacity 24 Inches behind pin, lb (kg) No 3N setting w/quick coupler
Standard Lift Capacity at lift pin, lb (kg) np
Optional Lift Capacity at lift pin, lb (kg) No option
Drawbar Description Category 4, adjustable
Wheelbase / Trackbase
Wheelbase, 2WD, in (mm) No 2WD
Wheelbase/Trackbase, MFD/4WD or Track, in (mm) 124 (3150)
Length, 2WD, incl. Hitch/Drawbar, in (mm) No 2WD
Length, MFD/4WD or track, incl. Hitch/Drawbar, in (mm) 249 (6332)
Vertical Dimensions
Height to Top of Cab, in (mm) 136 (3450)
Height to Top of ROPS raised, in (mm) No open ROPS
Width w/Tires or Tracks
Overall Width, with standard wheels or tracks, in (mm) 93 (2362) min.; 182 (4623) max.
Weight (w/Tires or Tracks)
Weight, 2WD w/ROPS, lb (kg) No 2WD
Weight, MFD/4WD w/ROPS, lb (kg) No open ROPS
Weight, 2WD w/Cab, lb (kg) No 2WD
Weight, MFD/4WD or Tracks w/Cab, without ballast, lb (kg) 41,848 (18982) estimated average
Weight, Total allowable, w/maximum ballast, lb (kg) np
Tire / Track Size
Front Tire Size, 2WD No 2WD
Front Tire Size orTrack Width, MFD/4WD or Track IF420/85 R38 R1W
Rear Tire Size or Track Width 16, 18, 21, 24, 30 (406, 457, 553, 610, 762) Track (MY2019)
Sales Literature
Literature Number CIH08051401
Literature Date 8/1/2014
Secondary Literature Source
Secondary Literature Number Manual 47754918
Secondary Literature Date 9/1/2014
Other Documentation
Document Number TA-1517-18
Document Date 6/1/2018
Status and Entry Dates
Manufacturing Status, Current or Archive Current
First Entry Date 9/21/2017
Revision Date 8/9/2018
