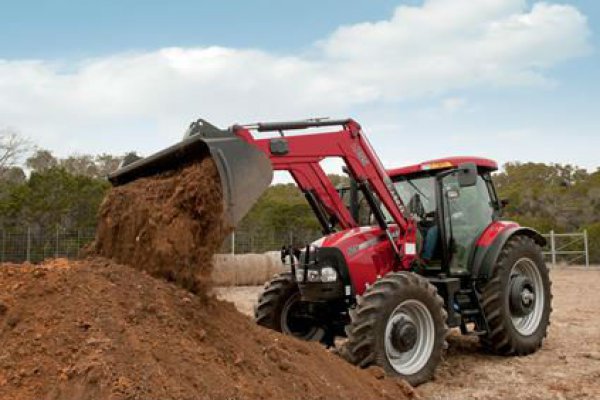

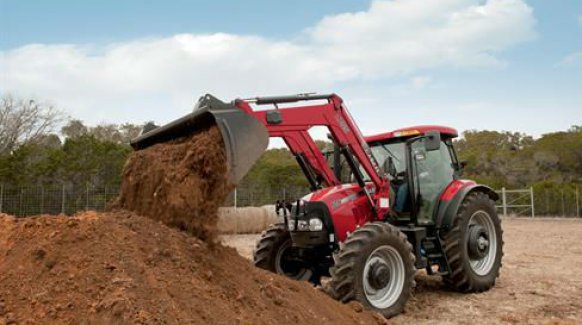

Efficient power. Increased productivity. Operator comfort.
The high horsepower, 4WD Magnum series delivers what you need most when field conditions are tough.
Maximum Versatility for the Way You Farm
- Highest horsepower row crop tractor with industry-leading fuel efficiency for maximum productivity.
- No job is too tough with reliable power, advanced hydraulics, and industry-best turning radius. No day is too long with the Magnum’s comfortable cab engineered for a smooth, quiet ride.
- Available on all Magnum models.
Field Leading Power and Performance
Case IH Magnum tractor 6.7 and 8.7L engines combine class-leading horsepower with proven emissions technology. What does that mean to you? Optimum power and fuel efficiency from an engine that has a legacy of performing in the toughest agricultural applications.
Reliable and Durable
FPT engines are developed and tested in Burr Ridge, Illinois. Our 6.7 and 8.7 L engines have clocked over 25 million hours on North American farms, field-tested and proven in the conditions you face.
Power Growth for Tough Operations
FPT engines are designed to develop up to 14% power growth, providing the power you need when you need it. They also feature a power boost of up to 35 additional horsepower to maintain speed and productivity with PTO applications.
Powerful and Proven
Case IH has been committed to an SCR-only solution for its unmatched overall fluid efficiency and power. Plus, it eliminates the need for additional components such as DPF and CEGR. You can enjoy greater productivity since the system allows for 600 hours between oil changes and doesn’t require regeneration.
Fuel Efficiency Without Compromise
With industry-exclusive options, Magnum engines can offer the next level of innovation like engine braking, which reduces drivetrain wear and improves machine control. Transmission
Power that Puts You in Total Control
Today’s powerful lineup of Magnum tractors is engineered to make your job easier and more productive, allowing you to keep up with the demands of farming. And, with two industry-leading transmissions to choose from, you can be assured you have the most efficient power for your operation.
Total Power Control
Industry leading CVXDrive Transmission delivers uninterrupted power to the ground, incorporating three ranges to be more efficient and deliver more power for tough jobs. Plus, with ActiveStop (or power neutral), the engine holds the tractor in place, letting you more easily start and stop on inclines without using the clutch or brake.
Go from zero to 25 mph standard (30 mph opt.) simply by moving a lever. CVXDrive automatically selects the best transmission range for the desired speed or load, eliminating the need for clutching and shifting.
Maximum Fuel Efficiency
In combination with the Diesel Saver APM system, CVXDrive automatically chooses the most fuel efficient combination of engine speed and drivetrain selection to save fuel and reduce costs.
PowerDrive Powershift Transmission
Ultra-Smooth Shifting & Power Transfer
Proven 19-speed full powershift transmission delivers ultra-smooth shifting and power transfer for field or road, allowing for maximum productivity.
Diesel SaverTM Auto Productivity Management (APM) allows maximum fuel efficiency by managing the engine RPM and transmission speed. You set the speed, rpm and shift frequency, and your transmission does the rest, so the job gets done faster and at the lowest possible cost.
Durable & Reliable
Powershift transmissions are sized for high horsepower demands, to achieve maximum reliability and durability - even in heavy draft load applications.
|Model||Magnum 220 Wheeled (2018-Present)|
|Advertised Engine Power, Rated, hp (kW)||220 (164)|
|Maximum Engine Power, hp (kW)||260 (194)|
|Rated Engine Speed, rpm||2100|
|Power Boost, hp (kW)||40 (30)|
|Fuel Tank capacity, gal (L)||160 (600)|
|Diesel Exhaust Fluid (DEF) tank capacity, gal (L)||17.5 (66)|
|PTO Horsepower, Basic / Optional Transmission, hp (kW)||185 (138)|
|PTO Speeds, rpm||540 / 1000|
|PTO operational Type (Independent; Live; Continuous)||Independent|
|Engine Make||Case IH FPT|
|Engine Model||6.7 L|
|Number of Cylinders||6|
|Displacement, cu in (L)||411 (6.7)|
|Engine Bore, in (mm)||4.095 (104)|
|Engine Stroke, in (mm)||5.20 (132)|
|Block Design, Replaceable Liners||Parent bore|
|Aspiration, Turbocharged or Naturally Aspirated||Wastegate Turbocharged w/air to air intercooler|
|Fuel System Description||High Pressure Common Rail|
|Fuel System Control, Electronic or Mechanical||Electronic|
|Fuel Injection to combustion chamber, Direct or Indirect||Direct|
|Emission and Exhaust Treatment|
|Emission Level, US EPA Tier||Tier 4B / Final|
|Selective Catalytic Reduction (SCR) w/Diesel Exhaust Fluid (DEF)||SCR w/ DEF|
|Exhaust Gas Recirculation (EGR)||No|
|Cleanup Catalyst (CUC)||CUC standard|
|Diesel Oxidation Catalyst (DOC)||DOC standard|
|Diesel Particulate Filter (DPF)||No|
|Exhaust Pipe, Vertical stack or Horizontal||Vertical stack|
|Fan Drive Type||Viscous|
|System Rating, Volts||12|
|Alternator Rating, Amps||200|
|Basic Transmission Configuration|
|Transmission Type||Full Powershift|
|Number of Forward / Reverse Speeds||19F / 6R|
|Maximum Speed Forward, mph (kph)||25 or 30 (40 or 50)|
|Creeper Range Available||See CVXDrive option|
|Shuttle (Forward-Reverse) Available||Yes|
|Optional Transmission 1|
|Transmission Type||Continuously variable|
|Number of Forward / Reverse Speeds||Infinite, 4F / 2R ranges|
|Optional Transmission 2|
|Manufacturer's Description||19F/6R PowerDrive, 30 mph/50kph|
|Transmission Type||Full powershift|
|Number of Forward / Reverse Speeds||19F / 6R|
|Wheel or Track Configuration|
|Drive Wheels or Tracks; 2WD, 4WD, 2WD / 4WD, 2 Tracks or 4 Tracks||4WD|
|Steering Configuration: Front Steer, Frame Articulated, or Track-type Steer||Front Steer|
|Rear Axle Assembly|
|Final Drive Location and Description||Planetary / Inboard|
|Axle Output End, Flange or Bar||Bar|
|Axle Bar Diameter, in (mm)||4.0 (102)|
|Suspended Front Axle Available||Optional|
|Service Brake Type||Wet disc|
|Hydraulic System Type||Pressure-flow compensating (PFC)|
|Main Hydraulic Pump Type||Variable Displacement|
|Implement Pump Flow, gpm (Lpm)||41 (155) w/PowerDrive|
|Optional Pump Flow, gpm (Lpm)||43 (162) w/ CVXDrive|
|Number of Standard Remote Valves||3 std.; 4th or 5th opt.|
|3-Point Hitch Features|
|3-Point Hitch Category||Category 3 / 3N|
|Optional Hitch Category||No option|
|Draft Sensing or Lift Control||Electronic position and/or draft control|
|Draft Link Ends Telescopic||Yes; quick coupler opt.|
|3-Point Hitch Lift Capacity|
|Standard Lift Capacity 24 Inches behind pin, lb (kg)||13,600 (6170)|
|Optional Lift Capacity 24 Inches behind pin, lb (kg)||13,000 (5900) w/ quick coupler|
|Standard Lift Capacity at lift pin, lb (kg)||np|
|Optional Lift Capacity at lift pin, lb (kg)||np|
|Drawbar Description||Category 3, adjustable|
|Wheelbase / Trackbase|
|Wheelbase, 2WD, in (mm)||No 2WD|
|Wheelbase/Trackbase, MFD/4WD or Track, in (mm)||118 (3000)|
|Length, 2WD, incl. Hitch/Drawbar, in (mm)||No 2WD|
|Length, MFD/4WD or track, incl. Hitch/Drawbar, in (mm)||234 (5944)|
|Height to Top of Cab, in (mm)||126.2 (3206)|
|Height to Top of ROPS raised, in (mm)||No open ROPS|
|Width w/Tires or Tracks|
|Overall Width, with standard wheels or tracks, in (mm)||119 (3020) bar axle ends|
|Weight (w/Tires or Tracks)|
|Weight, 2WD w/ROPS, lb (kg)||No 2WD|
|Weight, MFD/4WD w/ROPS, lb (kg)||No open ROPS|
|Weight, 2WD w/Cab, lb (kg)||No 2WD|
|Weight, MFD/4WD or Tracks w/Cab, without ballast, lb (kg)||21,500 (9750)|
|Weight, Total allowable, w/maximum ballast, lb (kg)||25,243 (11450)|
|Tire / Track Size|
|Front Tire Size, 2WD||No 2WD|
|Front Tire Size orTrack Width, MFD/4WD or Track||380/85 R34, R1W|
|Rear Tire Size or Track Width||480/80 R46, R1W Duals|
|Secondary Literature Source|
|Secondary Literature Number||CIH12121301|
|Secondary Literature Date||12/1/2013|
|Status and Entry Dates|
|Manufacturing Status, Current or Archive||Current|
|First Entry Date||9/21/2017|
