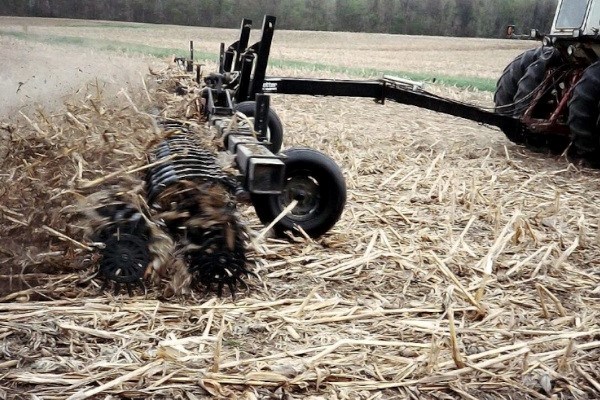

The 3400/3500 Min-Till Rotary Hoe has 13" of additional stagger, making it an ideal fit for higher-residue operations. It is the insurance policy that saves emerging plants as the spoon-bill wheels break open soil crust. Extended distance between the front and rear wheels provides excellent residue flow-through. The Min-Till Rotary Hoe also knocks out weeds without the use of herbicides, aerates wet residue before planting, and helps prevent blowing sand. It is designed for no-till and min-till farming operations with heavier residue conditions.
  • Get a Quote Value Your Trade Request Brochure
  • Send to a Friend
  • Payment Calculator

    • Get information on the 3400 Rigid Min-Till

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the 3400 Rigid Min-Till

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on 3400 Rigid Min-Till

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

3400 Rigid Min-Till Features & Benefits

  • Short- and long-cast arms stagger wheels 21" to facilitate residue flow
  • Wheels spaced on approximately 3 1/4" centers across width of machine
  • Spoon-bill wheel teeth are mounted on individual, spring-cushioned cast arms, allowing better soil contact with each wheel
  • Very fuel-efficient, with low horsepower requirements; can be operated at speeds of 7-10 mph
  • Available with a wide array of options to fit the needs of your operation (gauge wheels, helper springs, trash guards, and rear parking stand for folding models; see options tab above for details)
  • Rigid (3400 model) available in 12', 15', 21', 28', 30', and 34' widths
  • 180° flat-folding (3500 model) available in 25', 28', 30', 34', 41', 46', and 60' widths
  • Breaks up crusted soil to improve emergence
  • Mechanically rips out young weeds
  • Aerates and fluffs soil around growing plants
  • Incorporates herbicides and small seeds in one fast pass

3400 Rigid Min-Till Specs & Compare

  • Hitch: Mounted three-point category II/III
  • Hoe wheels: 21" diameter hoe wheels equipped with sealed gothic arch ball bearing
  • Riveted wheel assembly: 16 forged, self-sharpening, spoon-bill teeth
  • Down pressure: 18 lbs. with standard springs
  • Cylinders: 3000 psi with hoses on folding models
  • Safety features: SMV emblem, reflectors, light kit
  • Convenience features: Operator shield and parking stands





3400 Rigid Min-Till

Model

Toolbar Dimensions

Gang
Sections

Working
Width

Transport
Width

Row
Configuration

Quantity of
Hoe Wheels

Weight
(lbs.)

3412

4" x 4" x 1/4" x 149"

3

12'-5"

12'-5"

4R30, 6R22

42

1,612

3415

4" x 4" x 1/4" x 184"

4

15'-4"

15'-4"

4R40, 6R30, 8R22

52

1,894

3421

5" x 7" x 1/4" x 255"

6

21'-2"

21'-2"

6R40, 8R30, 12R20

72

2,527

3428

5" x 7" x 1/4" x 338"

8

28'-2"

28'-2"

8R40, 16R20

96

3,247

3430

5" x 7" x 1/4" x 366"

8

30'-6"

30'-6"

10R36, 12R28, 12R30

104

3,641

3434

5" x 7" x 1/4" x 408"

8

34'-0"

34'-0"

10R40, 14R28, 18R22

116

4,424
