Optimal performance on level fields

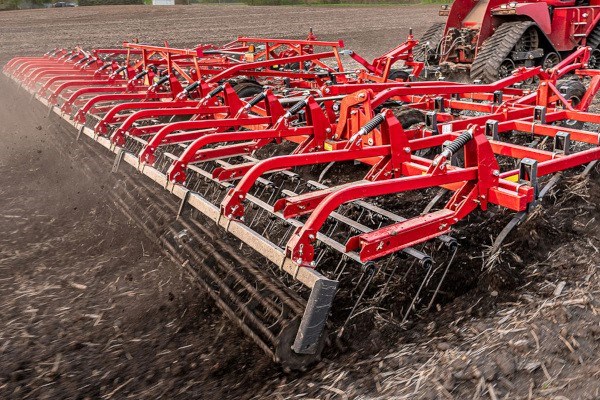

The Wil-Rich XL2 field cultivator is designed to meet the demands of level field conditions, delivering a smooth, planter-ready seedbed. As an industry leader in secondary tillage, the XL2’s level lift hitch ensures optimal weight transfer to the tractor, providing stability and efficiency for high-speed planting.
Excellent agronomic performance
A secondary tillage pass can be crucial for achieving a leveled surface, smooth operation of the sowing unit, and maximum effectiveness of soil herbicides. It also aids in creating an ideal seedbed, ensuring uniform emergence, and controlling weed seedlings to prevent interspecific competition. Give your crop the best chance to thrive while minimizing risks with the Wil-Rich XL2 field cultivator.
The industry standard
Prepare a seedbed, mechanically control weeds, and incorporate fertilizer or herbicides with the Wil-Rich XL2 field cultivator. It’s engineered to produce a consistent field finish, so you can grow a more uniform crop. The Wil-Rich design has proven itself over many years of use, becoming known as the industry standard in field cultivators. The reliable A-hitch is the standard hitch style on the XL2 field cultivator. It includes a weight transfer kit, which shifts weight onto the hitch to improve towing stability.
Thorough tillage performance without plugging
To achieve consistent results with a field cultivator, no strip of soil should be left untouched. However, if the shanks are spaced too closely together, the cultivator can plug up or create windrows of residue. That’s why Wil-Rich engineered a split-the-middle shank pattern on the field cultivator. Shanks on each rank work in the middle of the untilled area left by the preceding shanks. This ensures consistent tillage across the width of the implement without plugging or windrowing issues.
Single spring shanks for shallower depths and finer tillage
The single-spring shank is perfect for shallower working depths and achieving finer tillage performance. It provides excellent ground following capabilities with 150 lbs of trip pressure.
Double spring shanks for tougher conditions and deeper tillage
The double-spring is a better choice for tougher ground conditions or deeper tillage needs. It offers a pre-set downforce of 300 lbs.
MODEL | 11XL2 25 | 11XL2 25-27 | 11XL2 30-32 | 11XL2 30-39 | 13XL2 32 |
Number of tines | 43 | 47 | 55 | 67 | 55 |
Cutting width, ft | 25.1 | 27.4 | 32.1 | 39.1 | 32.1 |
Inner wing, ft | 7 | 7 | 9.3 | 9.3 | 9.3 |
Outer wing, ft | 7-Jan | 7 | 9-Jan | 9.3 | - |
Number of tires | 8 | 8 | 10 | 12 | 10 |
Transport width, ft | 16.1 | 16.1 | 16.1 | 16.1 | 18.4 |
Transport height, ft | 10 | 12 | 14 | 13 | 12.75 |
Weight*, lbs | 8,800 | 9,000 | 11,500 | 13,500 | 12,500 |
Horsepower requirement | 225-290 | 193-245 | 225-290 | 275-350 | 225-290 |
MODEL | 13XL2 32-34 | 13XL2 32-42 | 13XL2 32-45 | 13XL2 37 |
Number of tines | 59 | 73 | 77 | 63 |
Cutting width, ft | 34.4 | 42.6 | 44.9 | 36.75 |
Inner wing, ft | 9-Jan | 9.3 | 9.3 | 11.7 |
Outer wing, ft | - | 5 | 6 | - |
Number of tires | 10 | 12 | 12 | 10 |
Transport width, ft | 18 | 18 | 18 | 18 |
Transport height, ft | 13.8 | 13.4 | 13.4 | 14.9 |
Weight*, lbs | 12,700 | 15,200 | 15,400 | 13,200 |
Horsepower requirement | 235-300 | 245-375 | 315-405 | 260-335 |
MODEL | 13XL2 37-42 | 13XL2 37-50 | 13XL2 46-50 | 13XL2 55 | 13XL2 55-60 |
Number of tines | 73 | 85 | 87 | 95 | 103 |
Cutting width, ft | 42.6 | 49.6 | 50.75 | 55.4 | 60.1 |
Inner wing, ft | 11.7 | 11.7 | 9.3 | 11.7 | 11.7 |
Outer wing, ft | - | 6 | 7 | 9.3 | 9.3 |
Number of tires | 10 | 12 | 16 | 16 | 16 |
Transport width, ft | 18.4 | 18.4 | 18.4 | 18.4 | 18.4 |
Transport height, ft | 15.5 | 15.5 | 13.5 | 15.5 | 15.5 |
Weight*, lbs | 15,500 | 16,200 | 19,800 | 20,800 | 21,300 |
Horsepower requirement | 295-375 | 350-450 | 350-450 | 385-495 | 425-540 |
