The ultimate finisher on uneven terrain

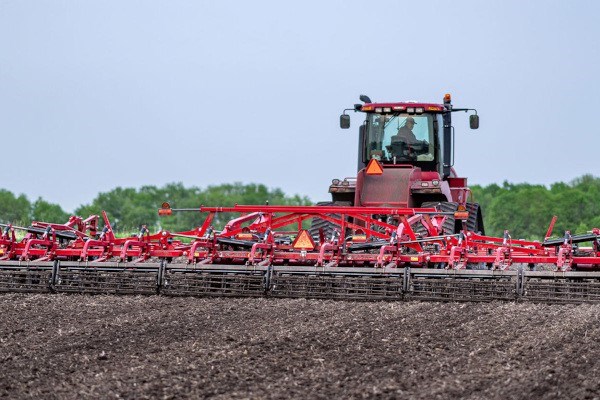

The Wil-Rich QX2 field cultivator stands out as the industry standard in secondary tillage, providing an exceptional finishing touch before high-speed planting. Designed for the most challenging field conditions, the QX2’s floating hitch delivers precise depth control on uneven terrain, promoting excellent germination and higher yields.
Excellent agronomic performance
A secondary tillage pass can be critical to achieving a leveled surface, smooth running of the sowing unit, and maximum effect of soil herbicides. It also helps in setting a consistent seedbed for even emergence. Give your crop the best chance to succeed while reducing risks with the Wil-Rich QX2 field cultivator.
Thorough tillage performance without plugging
To achieve consistent results with a field cultivator, no strip of soil should be left untouched. However, if the shanks are spaced too closely together, the cultivator can plug up or create windrows of residue. That’s why Wil-Rich engineered a split-the-middle shank pattern on the field cultivator. Shanks on each rank work in the middle of the untilled area left by the preceding shanks. This ensures consistent tillage across the width of the implement without plugging or windrowing issues.
Single spring shanks for finer tillage
A single-spring shank is ideal for finer tillage performance. It provides excellent ground following capabilities with 150 lbs of trip pressure.
Double spring for tougher conditions
The double-spring option is a better choice for tougher ground conditions. It offers a downforce of 300 lbs.
Multi-section design provides superior ground following
The Wil-Rich QX2 field cultivator is engineered with three or five sections that closely follow ground contours, even on wider models. This flexibility helps maintain consistent tillage depth in all conditions. It’s the go-to solution for farmers seeking exceptional performance in secondary tillage and preparation for high-speed planting. Designed for strength and versatility, the QX2 offers precise depth control with its floating hitch, making it ideal for uneven terrain.
Choose between two hitch designs
The Wil-Rich QX2 field cultivator comes with a floating A-frame hitch as standard, but you can opt for a floating T-frame hitch for enhanced maneuverability. The Wil-Rich QX2 has been meticulously engineered with lighter frames, allowing earlier access to your fields, even in challenging wet conditions.
A-hitch
The reliable A-hitch is the standard hitch style on the Wil-Rich QX2. It includes a weight transfer kit, which shifts weight onto the hitch to improve towing stability.
T-hitch for a tighter turning radius
The T-hitch option allows for a tighter turning radius, since the narrower profile provides extra clearance between the hitch and rear tractor wheels. Like the A-hitch, it has a weight transfer kit that shifts weight onto the hitch for improved towing stability.
The T-hitch is exclusively offered for five-section models featuring a 13 ft mainframe.
MODEL | 13QX² 32 | 13QX² 32-34 | 13QX² 32-42 | 13QX² 32-45 | 13QX² 37 |
Number of shanks | 55 | 59 | 73 | 77 | 63 |
Cutting width, ft | 32.1 | 34.4 | 42.6 | 44.9 | 36.75 |
Inner wing, ft | 9.3 | 9.3 | 9.3 | 9.3 | 11.7 |
Outer wing, ft | - | - | 5-Jan | 6 | - |
Number of tires | 12 | 12 | 14 | 14 | 12 |
Transport width, ft | 18.4 | 18.4 | 18.4 | 18.4 | 18.4 |
Transport height, ft | 13 | 14 | 13 | 13 | 14.9 |
Weight*, lbs | 13,500 | 13,700 | 16,300 | 16,500 | 14,300 |
Horsepower requirement | 225-290 | 235-300 | 245-375 | 315-405 | 260-335 |
MODEL | 13QX² 37-42 | 13QX² 37-50 | 13QX² 46-50 | 13QX² 55 | 13QX² 55-60 |
Number of shanks | 73 | 85 | 87 | 95 | 103 |
Cutting width, ft | 42.6 | 49.6 | 50.75 | 55.4 | 60.1 |
Inner wing, ft | 11-Jan | 11.7 | 9.3 | 11.7 | 11.7 |
Outer wing, ft | - | 6 | 7 | 9.3 | 9.3 |
Number of tires | 12 | 14 | 18 | 18 | 18 |
Transport width, ft | 18 | 18 | 18 | 18 | 18.4 |
Transport height, ft | 15.5 | 15.5 | 13.5 | 15.5 | 15.5 |
Weight*, lbs | 16,500 | 17,300 | 20,500 | 21,600 | 22,000 |
Horsepower requirement | 295-375 | 350-450 | 350-450 | 385-495 | 425-540 |
