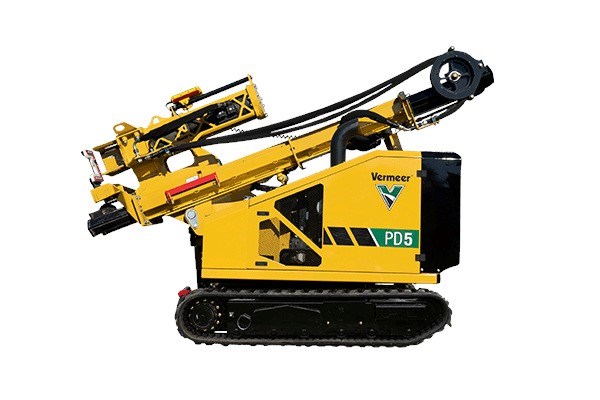

Vermeer PD5 Pile Driver
- Lightweight and small machine ideal for smaller installs or jobsites with less space
- Transport this machine quickly and efficiently
- Machine-integrated controls
Shopping Tools
PD5 Pile Driver Features & Benefits
On-machine control
Operators can remain off the machine and walk beside it, with conveniently placed controls to allow for intuitive operation and operator comfort.
Transportation ease
A small machine with a transport width of 87 in (221 cm), a transport height of 98 in (249 cm) and a transport length of 11.7 ft (3.6 m) allows more than one machine to be hauled on certain trailers
Compact design
A small machine with a transport width of 87 in (221 cm), a transport height of 98 in (249 cm) and a transport length of 11.7 ft (3.6 m) allows more than one machine to be hauled on certain trailers.
Setup and teardown are quick and convenient with a rotating platform and a mast that can stay fully assembled and stow parallel with the tracks, making it convenient for the entire crew to move to the next job.
Maintain accuracy
The PD5 has an optional laser receiver and an optional compatible third-party GPS system that can provide visual input to the operator, which can help improve productivity and alignment of the machine to the specified pile location.
Your access to MORE: VermeerOne™
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real-time data to make smarter decisions, and help maximize productivity and profitability.
PD5 Pile Driver Specs & Compare
| GENERAL DIMENSIONS AND WEIGHTS | |
| Maximum pile height - 15' (4.6 m) mast | 15.5 ft |
| Maximum operating height - 15' (4.6 m) mast | 19.6 ft |
| Operating weight - 15' (4.6 m) mast | 10380 lbs |
| Operating length | 9.2 ft |
| Operating width | 12.5 ft |
| Transport height - 15' (4.6 m) mast | 8.2 ft |
| Transport length - 15' (4.6 m) mast | 11.7 ft |
| Transport width with track shield folded up | 87 in |
| Transport width - 15' (4.6 m) mast | 87 in |
| Track width | 84 in |
| ENGINE OPTION ONE | |
| Make and Model | CAT C2.2T CRDI |
| Gross Horsepower | 48.8 hp |
| Number of Cylinders | 4 |
| Cooling Medium | Liquid |
| Fuel Type | Ultra Low Sulfur Diesel |
| EPA Certification Family | Tier 4F/EU Stage IIIB |
| ENGINE - OPTION TWO | |
| Make and Model | CAT C2.2T |
| Gross Horsepower | 60 hp |
| Number of Cylinders | 4 |
| Cooling Medium | Liquid |
| Fuel Type | Diesel |
| EPA Certification Family | Tier (Stage IIIA CA) |
| ELECTRICAL SYSTEM | |
| Voltage | 12 volts |
| Battery CCA Rating | 950 |
| Battery Group Class | 31 |
| FLUID CAPACITIES | |
| Fuel Tank | 25 gal |
| Engine crankcase with filter | 2.5 gal |
| Hydraulic Tank | 35 gal |
| FEATURES | |
| Laser receiver | Optional |
| Controls | Machine-integrated |
| Telematics | Standard |
| Mast | Hammer pull-down |
| Rotating platform | Standard |
| GROUND DRIVE | |
| Hydraulic pump type | Parker PGP315 Gear |
| Maximum Transport Speed | 2.6 mph |
| Track drive | Rubber tracks |
| HAMMER | |
| Maximum angle (direction of travel)10 deg | 10 deg |
| Maximum angle (perpendicular to travel)10 deg | 10 deg |
| Impact drive type | High-frequency hammer |
| Maximum hammer impact | 1340 bpm |
| Maximum Hammer Energy | 850 Joules |
| Maximum pile dimension (round - large opening) | 9.3 in |
| Maximum pile dimension (square - large opening) | 8.3 in |
