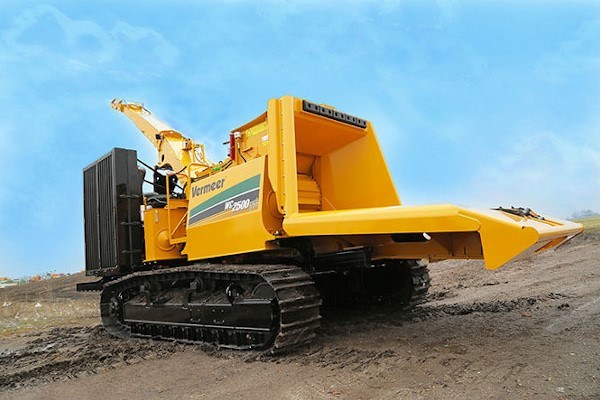

WC2500TX Features & Benefits

Powerful performance

With the variable-speed, dual-infeed conveyor chains operators can concentrate on loading the machine, not pushing the material through.

A compact design to maneuver more easily in the woods, on tight jobsites and down narrow paths, but packs 600 hp (447 kW) of power to meet your production demands.

SmartCrush technology allows you to increase down pressure when difficult material enters the cutting drum.

Maneuverability

Efficiently move the machine around jobsites without the need for additional support equipment. The track undercarriage offers 29 in (73.7 cm) of belly clearance and rising chain rollers for material cleanout.

Convenient control

The ACS monitors the machine's health.

Flexible chip sizing

An optional microchip and macrochip drum design maximizes productivity and knife position is designed to make jobsite knife changing easier.

Your access to MORE: VermeerOne™

VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real-time data to make smarter decisions, and help maximize productivity and profitability.

WC2500TX Specs & Compare

GENERAL DIMENSIONS AND WEIGHTS
Maximum Length (Operation)28.4 ft
Maximum Length - Transport26.1 ft
Maximum Width (Transport)118 in
Maximum Height (Transport)11.6 ft
Weight - Engine Option Two48500 lbs
Sound Power122
ENGINE - OPTION ONE
Make and ModelCummins QSX15 Tier 4 Final
Number of Cylinders6
Gross Horsepower (Maximum)600 hp
Torque (Max)2050 ft-lb
Fuel Tank Capacity200 gal
Max Fuel Consumption31 gph
Fuel TypeUltra-low sulfur diesel
Air CleanerTwo-stage direct flow
Oil FilterSpin-on
Recommended OilCES 20078 or 20081
Oil Volume with Filter52 qt
Maximum Angle of Continuous Operation45 deg
Cooling MediumLiquid
Coolant Capacity (Engine and Radiator)23 gal
Alternator105
FanReversible
Clutch TypePT Tech electronically controlled dry
Clutch Drive EngagementHydraulic
ENGINE - OPTION TWO
Make and ModelCummins QSX15 Tier 3
Number of Cylinders6
Gross Horsepower (Maximum)600 hp
Torque (Maximum)1875 ft-lb
Fuel Tank Capacity200 gal
Max Fuel Consumption31 gph
Fuel TypeUltra-low sulfur diesel
Air CleanerTwo-stage direct flow
Oil FilterSpin-on
Recommended OilCES 20078 or 20081
Oil Volume with Filter52 qt
Maximum Angle of Continuous Operation45 deg
Cooling MediumLiquid
Coolant Capacity (Engine and Radiator)23 gal
Alternator100
FanReversible
Clutch TypePT Tech electronically controlled dry
Clutch Drive EngagementHydraulic
DRUM/DISC CUTTING SYSTEM
Material Capacity25 in
Thickness.5 in
Width34 in
Diameter36 in
Speed1169 rpm
Weight With Shaft3163 lbs
Safety Lock - Number of Positions2 to 4
TypeAdjustable
Knife Thickness.6 in
MaterialA8 chipper steel
Useable Edges1
Knife Size8.5 or 17
Number of Bolts/Knife4 or 5
Replaceable Threaded Knife BlockHex nut
Fixture MethodBolt
Bedknife Size34" wide
Bedknife Thickness1.5 in
Bedknife MaterialCold-formed low-carbon bar
Bedknife - Number of Useable Edges2
Number of Pockets2 or 4
Replaceable Wear PlatesYes
Number of Replaceable Wear Plates8
CUTTER DRIVE COMPONENTS - ENGINE OPTION ONE
Number of Bearings2
Bore5.4 in
TypePillow block
ManufacturerDodge
Dynamic Capacity166000 lbs
Static Capacity236000 lbs
Belt Idler/TensionerSlide engine
Belt Type12 rib 5 V
INFEED ROLLER
Infeed Roller Width34 in
Maximum Feed Height27 in
Infeed Roller Weight575 lbs
Infeed Roller Diameter28 in
Tooth DesignStraight knives
Drive MotorWS-series
Drive PlanetaryAuburn Model 9
Drive Displacement6.9 cu-in
Drive ManufacturerWhite
Feed Roller Down Pressure1530
Feed Roller OrientationHorizontal
Number of Feed RollersOne upper, one conveyor
Number of Knives12
Feed Roller Distance to Drum1 in
Feed Roller Speed98 ft/min
DISCHARGE SYSTEM
Chute Height132 in
Bottom Thickness.1 in
Bottom Replaceable Wear PlateAR 400
Wear Plate Thickness.2 in
Top Thickness.2 in
Side Wall Thickness.2 in
Deflector Thickness.2 in
Rotation TypeHydraulic
Rotational LockHydraulic
Side Deflector Angle14 deg
Up Deflector Angle22 deg
Down Deflector Angle14 deg
DISCHARGE SYSTEM 2 - TOP LOAD
Chute Height194.5 in
Bottom Thickness.1 in
Wear Plate Thickness.2 in
Top Thickness.2 in
Side Wall Thickness.2 in
Deflector Thickness.2 in
Up Deflector Angle18 deg
Down Deflector Angle90 deg
HYDRAULIC SYSTEM
Tank capacity33 gal
Recommended Oil TypeHy-Power 68, 46, or 32
System TypeOpen-center
Filtration MethodIntake suction screens and return filter
Pump Flow at Maximum RPM16 gpm
System relief pressure4000 psi
Auto Reverse PSI3750 psi
Flow ControlTwo - feed roller and infeed conveyor
Oil Cooler1
HYDRAULIC SYSTEM - TRACK
Tank capacity33 gal
Pump Flow at Maximum RPM38 gpm
System relief pressure4786 psi
ELECTRICAL SYSTEM
System Voltage24V
BatteryGroup 8D 1400 CCA (dual)
Standard GaugesYes
Deluxe GaugesNo
SwitchesPush button
ControllerDanfoss MC-050
DisplayDP10
Shutdown SystemYes
Radio Remote ControlYes
CHASSIS
Frame Description8" x 4" x .375" wall rectangular tubing
Toolbox DescriptionLockable
Brake TypeAir
Trailer Light TypeLED
Track pad width20 in
Track Gauge97 in
Track Pitch132 in
Ground pressure8.4 psi
OTHER OPTIONS
Special PaintYes
Extended WarrantyYes
Adjustable Height Discharge ChuteNo
INFEED CONVEYOR
Feed Table Width98 in
Feed Table Length - Option One10 ft
Feed Conveyor TypeDual independent chain
Material Construction.50" thick
Infeed Floor ConstructionAR400 wear plate
Infeed Slope6 deg
Number of Infeed Chains2
Replaceable Chain SlidesYes
