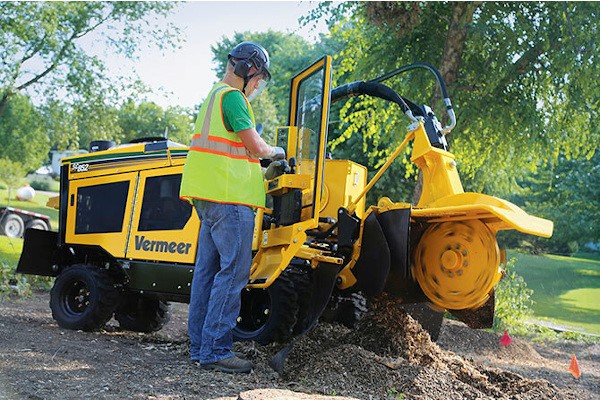

Vermeer SC852 Stump Cutter
- Maximized cutting dimensions
- Feature rich for stump grinding professionals
- Designed to tackle tough jobs, day after day
Shopping Tools
SC852 Stump Cutter Features & Benefits
Powerful Performance
The SC852 stump cutter, equipped with a Deutz TD2.9L Tier 4 Final engine, delivers 74 hp (55 kW) of powerful stump grinding performance.
A unique four-bar linkage maximizes cutting width by moving the cutter wheel away from the machine as the boom drops.
SmartSweep™ control system helps improve efficiency and productivity at the stump while helping to minimize wear and tear on the machine.
Capable design
With ample ground clearance, the machine cruises over challenging terrain.
Get into tight spots with side-mounted controls that are easy to reach, and an auxiliary control station that lets the operator lead or follow the machine through narrow confines.
Without the dual wheels installed, the SC852 is only 35 in (89 cm) wide, allowing it to enter narrow backyard gates and access tight jobsites.
Maintain a safe distance by choosing the optional remote control, which allows you to operate the cutter from up to 100 ft (30 m) away.
Maximized efficiency
Reduce maintenance time through features like hinged doors and removable panels that give you easy access to service areas.
A standard backfill blade minimizes the need for manual cleanup on the job.
Options for both the Vermeer cutting system (VCS) or Yellow Jacket™ cutter system give you the choice to select the wheel that is right for your operation and ground conditions.
Enhanced maneuverability during transport is achieved with variable drive speed, which also provides greater control while grinding.
Operator safety
The operator presence system allows the cutter wheel to automatically stop when the operator releases the hydraulic cutter wheel controls.
The swing out control station helps protect the operator from thrown objects while providing optimal visibility at the stump.
Your access to MORE: VermeerOne™
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real time data to make smarter decisions, and help maximize productivity and profitability.
SC852 Stump Cutter Specs & Compare
| GENERAL DIMENSIONS AND WEIGHTS | |
| Length | 147 in |
| Width | 35 in |
| Height | 80 in |
| Overall Width Transport (without duals) | 35 in |
| Overall Width Transport (with duals) | 56 in |
| Weight - Engine Option One | 4460 lbs |
| Sound Power | 110 dB(A) |
| ENGINE - OPTION ONE | |
| Make and Model | Deutz TD2.9L Tier Four Final |
| Number of Cylinders | 4 |
| Gross Horsepower (Maximum) | 74 hp |
| Torque (Max) | 192 ft-lb |
| Fuel Tank Capacity | 13.5 gal |
| Max Fuel Consumption | 3.9 gph |
| Fuel Type | Diesel |
| Air Cleaner | Two-stage dry type with maintenance-free precleaner, restriction indicator, evacuator valve and safety element |
| Oil Filter | Spin on |
| Recommended Oil | 15W40 |
| Oil Volume with Filter | 6.8 qt |
| Maximum Angle of Continuous Operation | 20 deg |
| Cooling Medium | Water / anti-freeze |
| Coolant Capacity (Engine and Radiator) | 3.9 gal |
| Alternator | 95 Amp |
| Fan | Remote variable speed suction |
| Clutch Type | Hydrostatic Transmission |
| CUTTERWHEEL SYSTEM | |
| Cutterwheel Diameter without Teeth | 23 in |
| Cutterwheel Thickness | 1.1 in |
| Cutterwheel Speed | 930 rpm |
| Cutterwheel Straight Line Dimension | 72 in |
| Cutterwheel Cut Above Ground | 31 in |
| Cutterwheel Cut Below Ground | 25 in |
| Tooth Description | Yellow Jacket Cutting System |
| Number of Teeth | 26 |
| Number of Indexes | 2 per tooth |
| Number of Pockets | 26 |
| Reversible Pockets | Yes - Standard |
| Cutterwheel Guard | Standard |
| Chip Containment | 28.2 cu ft |
| CUTTERWHEEL DRIVE COMPONENTS | |
| Lower Gearbox | 90 Degree |
| Oil Type - Lower Gearbox | Syn 75W90 |
| Oil Capacity - Lower Gearbox | 2.7 qt |
| Driveshaft | Standard |
| Driveshaft - U Joints | 2 Standard w/ double lip seals |
| HYDRAULIC SYSTEM | |
| Tank capacity | 18.4 gal |
| Recommended Oil Type | Vermeer HyPower 68 |
| System Type | 2 closed loops and 2 open loop |
| Filtration Method | Suction strainers and 3 micron return filter |
| Pump Flow at Maximum RPM | 15.8 gpm |
| System relief pressure | 3000 psi |
| Directional Control | Electric over hydraulic |
| Oil Cooler | Standard |
| ELECTRICAL SYSTEM | |
| System Voltage | 12V |
| Battery | 950 CCA |
| Standard Gauges | Hour meter, fuel gauge, tachometer |
| Warning Lights | Low oil pressure and high engine temperature |
| Switches | Cutterwheel drive engagement; AutoSweep adjustment, differential lock, Control panel selector (swingout or auxiliary), two-speed ground drive, blade, steering, boom controls and creep switches plus propel system joystick. |
| Controller | Vermeer ACS |
| Shutdown System | High coolant or hyd oil temp, low oil pressure |
| Radio Remote Control | Functions include: propel forward/reverse; boom up/down, boom left/right, steering left/right, blade up/down (optional), AutoSweep settings, travel speed high/low, differential lock, engine throttle |
| CHASSIS | |
| Frame Description | Swing out control station with 3 available positions plus auxiliary control station |
| Control Station Description | Abrasion resistant coated polycarbonate, 3/16 inch thick |
| Operator Vision Shield Description | None |
| Steerable Axle Type | Hydraulic, oscillating |
| Tires - Option One | Front: 20x8.00-10 |
| Wheels - Option One | Front: 10 inch x 6 inch rim |
| Axle/Suspension | Rigid at dual drive wheels; oscillating front steerable axle |
| Tires - Standard | Rear: Duals, 23x8.5-14 |
| Wheels - Standard | Rear: 14 inch x 6 inch rim |
| Brake Type | Spring applied, hydraulic release at planetary drives |
| GROUND DRIVE | |
| Low Speed Travel | 60 ft/min |
| High Speed Travel | 130 ft/min |
| OPTION ONE | |
| Chip Blade Dimension | Standard feature, 34 inches wide, 13.75 inches tall |
| Blade Travel Above Ground | 14 in |
| REMOTE CONTROL OPTION | |
| Radio Remote Control | Optional |
| Remote Functions | Engine start/stop, throttle, cutter wheel engage, swing, raise/lower |
| Remote Display | LED |
| Remote Range | 300' |
| OTHER OPTIONS | |
| Special Paint | Optional |
| Extended Warranty | 2 year/2000 hour or 3 year/3000 hour |
| Preventive Maintenance | Optional |
