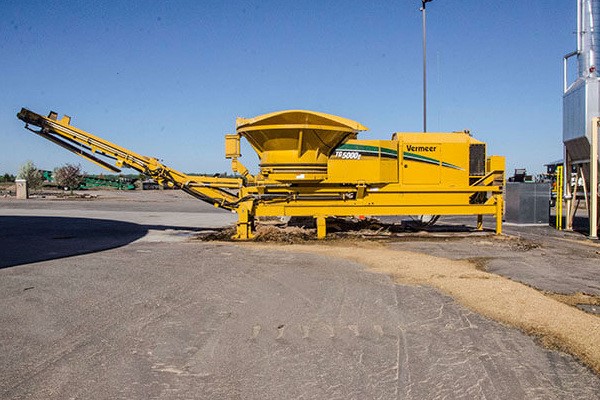

TG5000E Tub Grinder Features & Benefits

Proven performance

A large tub opening allows for loading of large amounts of material to improve productivity.

The grinder features a 500-hp (373-kW) WEG® totally-enclosed, fan-cooled electric motor for the mill, a 60-hp (44.7-kW) motor for the hydraulic pump, and a 2-hp (1.5-kW) motor for the hydraulic cooling fan.

The Series III duplex drum offers proven cutting performance, and reversible hammers and tips nearly double the wear life of single-sided designs and simplify daily maintenance.

Jobsite efficiency

Monitor real-time performance and data via the on-rig display or remote control.

A reversing Flexxaire® cooling fan adjusts the pitch of the blades based on temperature, which can increase power and improve processing efficiency.

Safety

The patented Thrown Object Restraint System (TORS) reduces the amount and distance of thrown objects and has a smooth underside for better material flow.

The optional Damage Defense system reduces the likelihood of certain metal contaminants from entering the hammermill by reacting to the initial contact with the contaminant and reversing the feed system to allow removal of the contaminant.

TG5000E Tub Grinder Specs & Compare

GENERAL DIMENSIONS AND WEIGHTS - NON LOADER
Maximum Length - Transport29.3 ft
Maximum Length - Conveyor Unfolded51.3 ft
Maximum Width (Transport)8.4 ft
Maximum Height (Transport)11.8 ft
Weight - Engine Option One42080 lbs
Front Mount Pad Weight (Operation)14800 lbs
Rear Mount Pad Weight (Operation)30650 lbs
MILL MOTOR
Make and ModelWEG W22
Gross Horsepower (Maximum)500 hp
Torque (Max)1451 ft-lb
Cooling MediumAir
Torque LimiterPT Tech - Continuously engaged, friction type
ELECTRIC FAN MOTOR OPTION 1 - 460 V / 60 HZ
ManufacturerWeg W22
FrameNEMA 145T
Horsepower2 hp
Voltage460
Frequency60
Phase3
Rated Speed1750 rpm
EnclosureTEFC
Full Load Amps2.61
Locked Rotor Amps19.6
Service Factor1.25
Duty CycleS1
NEMA DesignB
Insulation ClassF
Full Load Torque5.9 ft-lb
Locked Rotor (%)240%
Break Down300%
Ambient Temperature40 c
Nominal Efficiency86.5 (NEMA Premium Efficiency)
Power Factor0.84
Approximate Weight51 lbs
Added ItemsTerminal Block, NEMA C-Face Mount
Drive TypeDirect
ELECTRIC HYDRAULIC MOTOR OPTION 1 - 460 V / 60 HZ
ManufacturerWeg W22
FrameNEMA 364/5TS
Horsepower60 hp
Voltage460
Frequency60
Phase3
Rated Speed1775 rpm
EnclosureTEFC
Full Load Amps68.3
Locked Rotor Amps451
Service Factor1.25
Duty CycleS1
NEMA DesignB
Insulation ClassF
Full Load Torque175 ft-lb
Locked Rotor (%)240%
Break Down260%
Ambient Temperature40 c
Nominal Efficiency95 (NEMA Premium Efficiency)
Power Factor0.87
Approximate Weight869 lbs
Added ItemsTerminal Block, NEMA C-Face Mount, Short Shaft
Drive TypeDirect
ELECTRIC MILL MOTOR OPTION 1 - 460 V / 60 HZ (SOFT START)
ManufacturerWeg W22
FrameNEMA L447/9T
Horsepower500 hp
Voltage460
Frequency60
Phase3
Rated Speed1785 rpm
EnclosureTEFC
Full Load Amps561
Locked Rotor Amps4040
Service Factor1
Duty CycleS1
NEMA DesignB
Insulation ClassF
Full Load Torque1451 ft-lb
Locked Rotor (%)250%
Break Down260%
Ambient Temperature40 c
Nominal Efficiency96.2 (NEMA Premium Efficiency)
Power Factor0.86
Approximate Weight3462 lbs
Added ItemsTerminal blocks; thermostats; inverter duty; D.E. ground brush & insulated N.D.E bearing
Drive TypeDirect
ELECTRIC MILL MOTOR OPTION 1 - 460 V / 60 HZ (VFD)
ManufacturerWeg W22
FrameNEMA 586/7T
Horsepower500 hp
Voltage460
Frequency60
Phase3
Rated Speed1790 rpm
EnclosureTEFC
Full Load Amps567
Locked Rotor Amps4026
Service Factor1.15
Duty CycleS1
NEMA DesignN
Insulation ClassF
Full Load Torque1454 ft-lb
Locked Rotor (%)260%
Break Down260%
Ambient Temperature40 c
Nominal Efficiency96.1 (NEMA Premium Efficiency)
Power Factor0.85
Approximate Weight4041 lbs
Added ItemsTerminal blocks; thermostats; inverter duty; D.E. ground brush & insulated N.D.E bearing
Drive TypeDirect
ELECTRIC FAN MOTOR OPTION 2 - 380 V / 50 HZ
ManufacturerWeg W22
FrameIEC 90L
Horsepower2 hp
Voltage380
Frequency50
Phase3
Rated Speed1445 rpm
EnclosureTEFC
Full Load Amps3.21
Locked Rotor Amps23.8
Service Factor1
Duty CycleS1
NEMA DesignN
Insulation ClassF
Full Load Torque7.3 ft-lb
Locked Rotor (%)230%
Break Down300%
Ambient Temperature40 c
Nominal Efficiency85.6
Power Factor0.83
Approximate Weight51 lbs
Added ItemsTerminal Block, NEMA C Face Mount
Drive TypeDirect
ELECTRIC HYDRAULIC MOTOR OPTION 2 - 380 V / 50 HZ
ManufacturerWeg W22
FrameIEC 225S/M
Horsepower60 hp
Voltage380
Frequency5000%
Phase300%
Rated Speed1475 rpm
EnclosureTEFC
Full Load Amps83.9
Locked Rotor Amps663
Service Factor1
Duty CycleS1
NEMA DesignN
Insulation ClassF
Full Load Torque213 ft-lb
Locked Rotor (%)250%
Break Down270%
Ambient Temperature40 c
Nominal Efficiency94.7
Power Factor0.86
Approximate Weight926 lbs
Added ItemsTerminal Block, NEMA C Face Mount
Drive TypeDirect
ELECTRIC MILL MOTOR OPTION 2 - 380 V / 50 HZ (SOFT START)
ManufacturerWeg W22
FrameIEC 355M/L
Horsepower500 hp
Voltage38000%
Frequency6000%
Phase3
Rated Speed1790 rpm
EnclosureTEFC
Full Load Amps688
Locked Rotor Amps5227
Service Factor1.15
Duty CycleS1
NEMA DesignN
Insulation ClassF
Full Load Torque1454 ft-lb
Locked Rotor (%)260%
Break Down260%
Ambient Temperature40 c
Nominal Efficiency96.1
Power Factor0.85
Approximate Weight4041 lbs
Added ItemsTerminal Blocks; thermostats, inverter duty; D.E. ground brush & insulated N.D.E. bearing
Drive TypeDirect
ELECTRICAL PANEL (SOFT START)
Height87 in
Width72 in
Depth27 in
Weight1800 lbs
ELECTRICAL PANEL (VFD)
Height93 in
Width119 in
Depth28 in
Weight3020 lbs
FEED SYSTEM
Tub Table Thickness.4 in
Tub Table TypeT1 Steel
Table Tilt Degrees91 deg
Millbox Opening24.2" x 47.9" (61.4 cm x 121.5 cm)
Inside Diameter of Tub8 ft
Inside Flare Diameter - At Base of Tub8.1 ft
Inside Flare Diameter - At Tub Opening12.3 ft
Depth of Tub5 ft
Tub Capacity11.3 cu yd
Wall Thickness.3 in
Wall TypeT1 Steel
Loading Height10.6 ft
Drive TypeContinuous sprocket
Drive Chain120H roller chain
Drive TensionerStandard
Drive MotorOpen loop
Tub Roller Quantity8 carrier, 8 guide (16 total)
Tub Speed10 rpm
Tub Agitators4
SAFETY SYSTEM
Thrown Object Restraint SystemPivoting tub cover assembly
Tub Cover DescriptionHydraulically activated
Tub Cover Positions2
Rotor DeflectorStandard
Falling Object Protection at Control StationOverhead and side protection
DUPLEX DRUM
Drum Diameter22.5 in
Tip Diameter28.6 in
Drum Cutting Width46 in
Drum Skin Thickness1.8 in
Drum Speed1785 rpm
Bearing Typespherical roller
Number of Hammers8
Number of Cutters16
Cutter Block Types
Center Retention Pin Dimensions2" (5.1 cm)Block style single bolt wide 3" x 3.5" (7.6 cm x 8.9 cm) wide; 2-bolt 2" x 3" (5.1 cm x 7. 6 cm) narrow
Number of Wipers2
SCREENS
Screen Weight400 lbs
Screen Dimensions49.5" x 28.5" x 14.9" (126 cm x 72.4 cm x 37.8 cm)
Screen TypeFabricated from abrasion resistant steel (qty 2)
Breaker Bar TypeT1 steel, replaceable
Breaker Bar Dimensions2.5" x 3" (6.4 cm x 7.6 cm)
Screen Area2714 sq in
Distance - Screen to Millbox Wall11 in
DISCHARGE SYSTEM - SINGLE BELT DESIGN
Length24 ft
Width36 in
Belt DesignOne piece, 330# with V-cleat
SpliceFlexco R2 stainless steel
Return Roller Quantity5 standard and 1 vibrating roller
Idler Roller Diameter8 in
Standard Drive Roller Diameter12.8 in
Magnetic Drive Roller Diameter12.8 in
Drive MotorGeroler
Belt Speed640 ft/min
Load Height14 ft
HYDRAULIC SYSTEM
Tank capacity95 gal
Recommended OilHy-Power 68
Filtration MethodIn-tank return filters (qty 2)
Number of Coolers1
IMPLEMENT HYDRAULICS
System TypeOpen loop
Pump TypeGear
Pump Flow at Maximum RPM19.2 gpm
System relief pressure2800 psi
TUB DRIVE HYDRAULICS
System TypeOpen loop
Pump TypeGear
Pump Flow at Maximum RPM19.2 gpm
System relief pressure2800 psi
ELECTRICAL SYSTEM
System Voltage24 VDC
System ProtectionFused
CONTROL STATION
Display TypeAnalog hydraulic gauges, LCD multifunction
Machine InformationYes
Operational FaultsYes
GaugesAuxiliary hydraulic system pressure, tub rotation hydraulic system pressure, conveyor hydraulic system pressure
SwitchesMoisture proof, toggle switch
RADIO REMOTE CONTROL
Display TypeLCD multifunction
Engine InformationMotor start/stop
Motor InformationYes
Machine InformationYes
Operational FaultsYes
SwitchesSealed membrane
Operating Range300' (91.4 m)
Battery TypeAA (qty 6)
Channel Setting50 channels
CHASSIS
Frame DescriptionContinuous I-beam
OTHER OPTIONS - TUB GRINDER
ScreensOptional
Special Tools GroupOptional
Special PaintOptional
Extended WarrantyOptional
Preventative MaintenanceOptional
