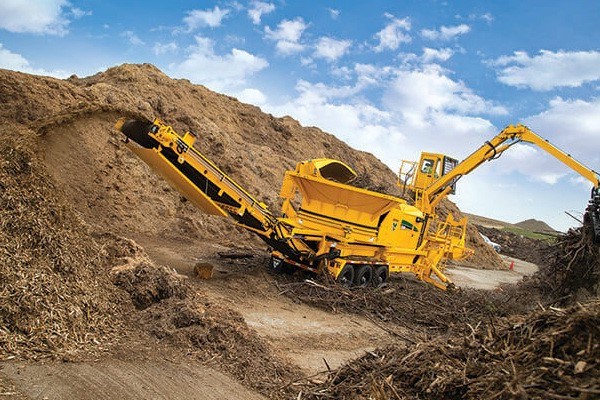

TG5000 Tub Grinder Features & Benefits

Proven performance

A large tub opening allows for loading of large amounts of material to improve productivity.

The TG5000 is powered by a 540-hp (403-kW) Caterpillar® C15 Tier 4 Final engine, with a maximum fuel consumption of 27 gph (102 L/hr). A 540-hp (403-kW) Tier 3 engine option is available for lesser-emission regulated countries.

The Series III duplex drum is built off the proven cutting performance of previous Vermeer duplex drum designs and makes maintenance more convenient with enhancements such as an independently secured wedge system and enhanced drum balancing.

Jobsite efficiency

The loader’s electric-over-hydraulic controls provide the flexibility for an operator to use their preferred control configuration (Vermeer, SAE or ISO), as well as three operating modes with varying joystick sensitivity.

Monitor real-time performance and data via the on-machine display or remote control.

An optional loader cab with grapple increases efficiency and can lift up to 3,500 lb (1,587.6 kg) at full reach.

A reversing Flexxaire® cooling fan adjusts the pitch of the blades based on temperature, which can increase power and improve processing efficiency.

Safety

The patented Thrown Object Restraint System (TORS) reduces the amount and distance of thrown objects and has a smooth underside for better material flow.

The optional Damage Defense system reduces the likelihood of certain metal contaminants from entering the hammermill by reacting to the initial contact with the contaminant and reversing the feed system to allow removal of the contaminant.

Your access to MORE: VermeerOne™

VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real time data to make smarter decisions, and help maximize productivity and profitability.

TG5000 Tub Grinder Specs & Compare

GENERAL DIMENSIONS AND WEIGHTS - NON LOADER
Maximum Length - Transport39.2 ft
Maximum Length - Conveyor Unfolded61.1 ft
Maximum Width (Transport)8.4 ft
Maximum Height (Transport)13.1 ft
Weight - Tandem Axle51000 lbs
Weight - Triple Axle53000 lbs
Tongue Weight - Tandem Axle16500 lbs
Tongue Weight - Triple Axle16000 lbs
Axle Weight - Tandem Axle34500 lbs
Axle Weight - Triple Axle37000 lbs
Sound PowerSound Power LwA=116.6 dB(A) At the lower control panel = 96.4 dB(A)
GENERAL DIMENSIONS AND WEIGHTS - LOADER
Maximum Length - Transport45.5 ft
Maximum Length - Conveyor Unfolded67.5 ft
Maximum Reach of Loader27 ft
Maximum Width (Transport)8.4 ft
Maximum Height (Transport)13.1 ft
Maximum Height - Cab in Operating Position18.8 ft
Weight - Engine Option One68000 lbs
Weight - Triple Axle68000 lbs
Tongue Weight - Engine Option One24000 lbs
Axle Weight44000 lbs
Sound PowerSound Power LwA=116.6 dB(A) At the lower control panel = 96.4 dB(A) In the loader cab = 76.8 dB(A)
ENGINE - OPTION ONE
Make and ModelCAT C15 T4F Stage V
Number of Cylinders6
Gross Horsepower (Maximum)540 hp
Torque (Max)1823.3 ft-lb
Fuel Tank Capacity251 gal
Max Fuel Consumption28 gph
Fuel TypeUltra Low Sulfur Diesel
Air CleanerPrimary & Secondary Backup Filter with precleaner and electric restriction indicator
Oil FilterSpin-on
Recommended OilCAT DEO-ULS OR API CJ-4, OR ACEA E9. CAT LABEL 350-0684 IS RECOMMENDED
Oil Volume with Filter40.2 qt
Cooling MediumLiquid
Coolant Capacity (Engine and Radiator)20 gal
Air to Boil Temperature125 deg
Alternator24 Volt, 190 Amp
Fan42" Dia, Variable Pitch, Reversible
Clutch TypePT Tech
Clutch EngagementPush Button
ENGINE - OPTION TWO
Make and ModelCAT C15 Tier 3
Number of Cylinders6
Gross Horsepower (Maximum)540 hp
Torque (Max)1819 ft-lb
Fuel Tank Capacity251 gal
Max Fuel Consumption27 gph
Fuel TypeDiesel
Air CleanerPrimary & Secondary Backup Filter with precleaner and electric restriction indicator
Oil FilterSpin-on
Recommended OilAPI CC/CD
Oil Volume with Filter42 qt
Cooling MediumLiquid
Coolant Capacity (Engine and Radiator)24 gal
Alternator24 Volt, 200 Amp
Fan42" Dia, Fixed Pitch, Reversible
Clutch TypePT Tech
Clutch EngagementPush Button
FEED SYSTEM
Tub Table Thickness0.375 in (9.5 mm)
Tub Table TypeT1 Steel
Table Tilt Degrees91 deg
Millbox Opening24.4 x 46.9 in (61.9 x 119.1 cm)
Inside Diameter of Tub7.8 ft
Inside Flare Diameter - At Base of Tub8.3 ft
Inside Flare Diameter - At Tub Opening12.3 ft
Depth of Tub5.1 ft
Wall Thickness.3 in
Wall TypeT1 Steel
Loading Height10.7 ft
Drive TypeContinuous sprocket
Drive Chain120H roller chain
Drive TensionerAutomatic hydraulically tensioned mechanical slide
Drive MotorOpen loop
Tub Roller Quantity8 carrier, 8 guide
Tub Speed10 rpm
Tub Agitators4
SAFETY SYSTEM
Thrown Object Restraint SystemPivoting tub cover assembly
Tub Cover DescriptionHydraulically activated
Tub Cover PositionsTransport and Operate with Hydraulic Lock. Transport also has mechanical lock
Rotor DeflectorStandard
Falling Object Protection at Control StationOverhead and side protection
DUPLEX DRUM
Drum Diameter22.5 in
Tip Diameter29 in
Drum Cutting Width44 in
Drum Skin Thickness1.5 in
Drum Speed2050 rpm
Tip Speed15612 rpm
Bearing TypeSpherical roller
Bearing - Inner Race Diameter4.3 in
Bearing - Dynamic Capacity136000 lbs
Number of Hammers7
Number of Cutters14
Cutter Block TypesBlock style single bolt wide 3"x3.5" wide; 2 bolt 2"x3" narrow
Center Retention Pin Dimensions2"
Number of Wipers4
SCREENS
Screen Dimensions47" x 29" x 3/4"
Screen TypeAR 400, Reversible, Qty 2
Breaker Bar TypeReplaceable T1 Steel Bar
Breaker Bar Dimensions2.5" x 3"
Number of Sides4 Usable Edges
Screen Area2700 sq in
DRIVELINE - ENGINE OPTION ONE
Drive ShaftCustom 1810
U - JointsGreased (qty 2)
DISCHARGE SYSTEM - SINGLE BELT DESIGN
Width36 in
Belt DesignStandard: 3-ply 330 V-Cleated Heavy Duty: Straight Warp Single Ply 330# both with V-cleat
SpliceStandard: Armored Stainless Steel Cable Heavy Duty: Super Screw
Return Roller Quantity5 Standard and 1 Vibrating Roller
Idler Roller Diameter8 in
Standard Drive Roller Diameter12.8 in
Magnetic Drive Roller Diameter12.8 in
Drive MotorEaton
Belt Speed778 ft/min
Load Height14 ft
HYDRAULIC SYSTEM
Tank capacity90 gal
Recommended OilHY POWER 68
Filtration MethodIn Tank Return Filters (qty 2) with suction strainer
Number of Coolers1
IMPLEMENT HYDRAULICS
ComponentsConveyor
System TypeOpen Loop
Pump TypeGear
Pump Flow at Maximum RPM20.7 gpm
System relief pressure3000 psi
TUB DRIVE HYDRAULICS
System TypeLoad Sense, Pressure Compensated
Pump TypeAxial Piston, Variable Displacement
Pump Flow at Maximum RPM22.1 gpm
System relief pressure3045 psi
Motor SeriesEaton VIS45
CLUTCH HYDRAULICS
Tank capacity21 gal
Recommended OilVMF Gold
Filtration MethodSpin on High Pressure
Number of Coolers1
System TypeOpen Loop
Pump TypeGear
Pump Flow at Maximum RPM10.6 gpm
System relief pressure260 psi
LOADER HYDRAULICS
System TypeLoad Sense, Pressure Compensated
Pump TypeAxial Piston, Varible Displacement
Pump Flow at Maximum RPM54.2 gpm
System relief pressure3335 psi
ELECTRICAL SYSTEM
System Voltage24 Volt
BatteryGroup 8-D, 1155 CCA (Qty 2)
System ProtectionFused
CONTROL STATION
Display TypeLCD Multi-Function
Engine InformationOperational, Diagnostic and System Parameters
Machine InformationOperational, Diagnostic and System Parameters
Operational FaultsSAE J1939 Diagnostic Codes
GaugesFuel Level, Tub Pressure, Conveyor Pressure, Auxillary Hydraulic Pressure,
SwitchesMoisture Proof, Toggle Style
RADIO REMOTE CONTROL
Display TypeLCD Multi-Function
Engine InformationOperational, diagnostic and system parameters
Machine InformationOperational, diagnostic and system parameters
Operational FaultsSAE J1939 diagnostic codes
SwitchesSealed Membrane
Operating Range300 feet
Battery Type(qty 6) AA Alkaline
Channel Setting50 channels
LOADER CAB
Display TypeDP10
Engine InformationOperational, diagnostic and system parameters
Machine InformationOperational, diagnostic and system parameters
Operational FaultsSAE J1939 diagnostic codes
GaugesLoader Hydraulic Pressure
SwitchesMoisture Proof, Toggle Style
CHASSIS
Frame DescriptionContinuous I-beam
Hitch TypeReplaceable king pin 2"
Fender DescriptionBolt On, 3/16" Formed Steel
Brake TypeAir Actuated w/ Spring Applied Park Brake
Trailer Light Type12/24 Volt LED
AXLE/SUSPENSION
Axle TypeTandom Axle Over-Slung Spring Suspension (Non-Loader)
Capacity20000 lbs
Tires - Option One445/50R22.5 Aluminum Hub Piloted Super Singles
Wheels - Option One22.5
Ground Clearance - Option One11 in
AXLE/SUSPENSION - OPTION TWO
Axle TypeTriple Axle Over-Slung Spring Suspension (Non-loader and loader)
Capacity20000 lbs
Tires - Option One445/50R22.5 Steel Hub Piloted Super Singles
Wheels - Option One22.5
Ground Clearance - Option One11 in
LOADER
Loader Reach27 ft
Pedestal/Cab Rotation370 deg
Loader Lift Capacity at Full Reach3500 lbs
Loader Lift Capacity at 10 ' (3.05 m)12250 lbs
Grapple TypeMultiple Tine, Continuous 360 Degree Rotation
Grapple Rotation360 deg
Grapple Weight1315 lbs
Loader ControlsElectric over hydraulic
Climate ControlsA/C & Heat
RadioAM/FM/WB/AUX/ SIRIUS SATELLITE RADIO READY with two 4" speakers
Window Type3/8" Polycarbonate
Front Intrusion Guard5/8" diameter rods welded wire mesh
OPTIONAL AIR COMPRESSOR
Air Compressor BrandMi-T-M
Engine13 hp Honda
Maximum Pressure175 psi
Maximum Air Flow29 cfm
Tank capacity30 gal
OTHER OPTIONS - TUB GRINDER
ScreensOptional
Special Tools GroupOptional
Special PaintOptional
Extended WarrantyOptional
Preventative MaintenanceOptional
