LS3600TX Features & Benefits

Ease of maintenance

The hydraulically-operated side door provides full exposure to the rotor, comb and belly conveyor to minimize maintenance time. The service area has been designed to allow you to perform maintenance without overhead obstructions.

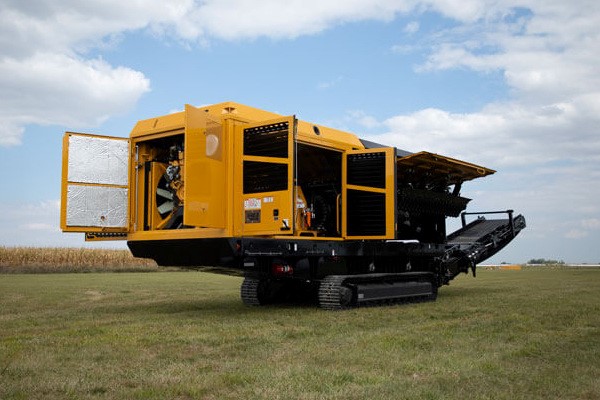

The maintenance-friendly and highly accessible engine bay design includes large access doors, multiple ladder points and a large service platform to help with ease of maintenance and serviceability.

The belly conveyor can be removed without detaching the discharge conveyor — allowing for minimally invasive service.

The service jog feature at the operator's station allows you to rotate the rotor, enabling necessary maintenance on both the rotor and the tips.

Adjustability

The design of the LS3600TX gives your operation versatility with the ability to control the size of the material by adjusting the spacing between the comb and rotor.

This 10-ft (3 m) welded rotor comes equipped with a 21-tooth configuration consisting of both tall and short teeth. Reliability and maintenance were kept front of mind — as evident by the dual-bolt quick-change teeth.

The comb constantly monitors cylinder pressure and will open when the set pressure is reached, providing protection to the rotor, transmission and driveline.

Productivity

The machine features a reversible mechanical transmission for efficient power transfer, maximizing productivity. A torque limiter automatically disengages the drive at max torque to help protect critical components.

Driveline confidence

A torque limiter automatically disengages the drive when max torque is experienced — helping protect critical machine components.

LS3600TX Specs & Compare

GENERAL DIMENSIONS AND LENGTHS
Maximum Length - Transport28 ft
Maximum length - working47.3 ft
Maximum Width (Transport)8.3 ft
Maximum Height (Transport)11.5 ft
Maximum weight71650 lbs
ENGINE
Make and ModelCAT C13B T4F/Stage V
Number of Cylinders6
Gross Horsepower (Maximum)456 hp
Torque (Maximum)2082 ft-lb
Fuel Tank Capacity146 gal
Max Fuel Consumption19.3 gph
Fuel TypeUltra-low sulfur diesel (<15 ppm)
Diesel exhaust fluid capacity17.3 gal
Air CleanerDry-type with primary and secondary elements and restriction indicator
Oil FilterFull-flow, spin-on
Recommended OilAPI CJ-4, 15W-40
Oil Volume with Filter45 qt
Cooling MediumLiquid (Nitrite-free, pre-diluted 50/50)
Coolant Capacity (Engine and Radiator)13.7 gal
Air to boil temperature134° F (56° C)
Alternator24 V, 150 A
FanMulti-wing (variable pitch)
Fan - CACElectric (variable speed)
Transmission TypeReversing dual clutch
Planetary typeGearbox
Torque LimiterBall detent
Driveline brake typeSingle caliper disk
Sound Power112.9 db(A)
INFEED HOPPER SYSTEM
Infeed hopper width86 in
Infeed hopper depth44 in
Infeed hopper length (with extension)145.8 in
Infeed hopper capacity10.2 cu yd
Loading Height10.5 ft
Hopper extension constructionIntegrated steel with hydraulic cylinder
Hopper extension height18 in
Hopper extension depth3 in
Hopper extension length67 in
Hopper extension loading height11.2 ft
Feed opening88-in (225-cm) wide x 145.75-in (370-cm) long
ROTOR OPTION ONE
Rotor weight5700 lbs
Rotor diameter24.5 in
Tip Diameter39.5 in
Short tip diameter36.8 in
Rotor length10.1 ft
Rotor skin thickness1.3 in
Rotor Speed30 rpm
Tip speed310 ft/min
Number of mounts21
Number of Tips21
Tip typesTall/short
Wear Plate Thickness.5 in
BELLY CONVEYOR SYSTEM
Length12.8 ft
Width41 in
Belt Design1-ply — 330# with V-cleat — steel mesh
SpliceContinuous
Tail pulley diameter9 in
Drive pulley diameter9 in
Drive MotorFixed displacement
Belt Speed784 ft/min
DISCHARGE CONVEYOR SYSTEM
Length22.3 ft
Width48 in
Belt Design3-ply — 330# with V-cleat
SpliceR2 stainless steel cable
Return Roller Quantity2
Tail pulley diameter12 in
Drive pulley diameter12.8 in
Drive MotorFixed displacement
Belt Speed824 ft/min
Load Height8 ft - 14 ft (2.43 m - 4.3 m)
HYDRAULIC SYSTEM
Tank capacity40 gal
Recommended OilVermeer HyPower 68
Filtration MethodDual in-tank return filters
Number of Coolers1
IMPLEMENT HYDRAULICS
ComponentsNine section
System TypeOpen loop
Pump Type23/8 CC tandem
Pump Flow at Maximum RPM12.7 gpm/4.4 gpm (61.9 L/min / 16.6 L/min)
System relief pressure2900 psi
BELLY CONVEYOR HYDRAULICS
System TypeClosed loop
Pump TypeVariable piston
Pump Flow at Maximum RPM32.5 gpm
System Pressure3336 psi
Motor typeOrbital
DISCHARGE CONVEYOR HYDRAULICS
System TypeClosed loop
Pump TypeVariable piston
Pump Flow at Maximum RPM32.5 gpm
System Pressure3336 psi
Motor typeOrbital
FAN DRIVE HYDRAULICS
System TypeClosed loop
Pump TypeVariable piston
Pump Flow at Maximum RPM16.3 gpm
System relief pressure3626 psi
Motor typeSeries 40 - axial piston
Fan type (FWD/REV)Multi-wing (variable pitch)
ELECTRICAL SYSTEM
System Voltage24 V
Battery8D-MHD, 1,400 CCA (qty. 2)
System ProtectionFused
CONTROL STATION
Display TypeLCD touchscreen
Engine InformationYes
Machine InformationYes
Operational FaultsYes
GaugesNo
SwitchesSealed membrane CAN bus keypad
RADIO REMOTE CONTROL
Display TypeLCD
Engine InformationYes
Machine InformationYes
Operational FaultsYes
GaugesNo
SwitchesSealed membrane
Operating Range300 ft (91.4 m)
Battery TypeAA (qty. 6)
Channel Setting50 channels
CHASSIS
Frame DescriptionUnit body construction
TRACKS
Track TypeN.1 FL6 triple grouser
Type of IdlerFL6 track roller
Number of Idlers9
Track Drive Pump TypeClosed loop
Pump Flow at Maximum RPM29.4 gpm
System relief pressure4061 psi
Track Drive Motor TypeBent axis piston
Track Brake TypeHydraulic release
Max high speed1.7 mph
Low Speed Travel1.2 mph
Track length axle to idler-sprocket10.86 ft (3.31 m)
Track Width - Option One17.7 in (45 cm)
Track Width Option One - Ground Bearing Pressure - Soft Ground15.4 psi
OTHER OPTIONS
Tips2 tip options
Overband magnetOptional
Dust suppressionOptional
Foldable rear hopper extensionOptional
Extended WarrantyOptional
Preventative MaintenanceOptional
Special PaintOptional
Vermeer Confidence Plus Asset Protection ProgramOptional
