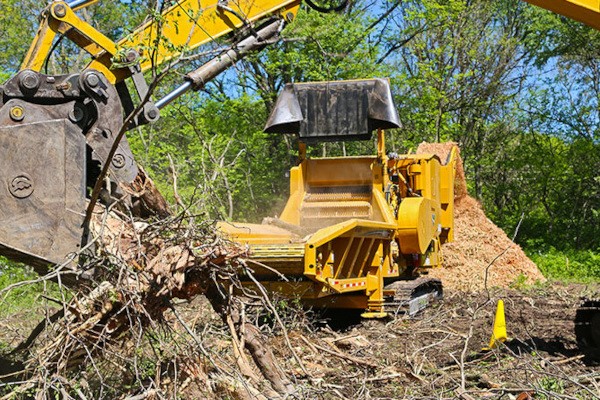

HG6800TX Horizontal Grinder Features & Benefits

Productive and powerful

For enhanced flexibility within a single machine, a dedicated chip drum, adjustable for product size ranging from .125 in - 1 in (.3 cm - 2.5 cm), is available.

The HG6800TX features low sidewalls to aid in feeding whole trees with minimal restriction, reducing the number of operator interactions with the material after loading and allowing the operator to focus on the next load.

The Series III hardfaced duplex drum offers durability and convenient maintenance, with the ability to remove and replace single hammers and balance the drum externally.

Intelligent operation

The SmartFeed system monitors engine rpm and adjusts grinding speed for optimal machine performance.

The optional Damage Defense system reduces the likelihood of certain metal contaminants from entering the hammermill by reacting to the initial contact with the contaminant and reversing the feed system to allow removal of the contaminant.

An industry-leading, full-function, wireless remote control lets you adjust machine settings from the cab as conditions change, including control of the infeed settings, engine droop, conveyor height and more.

Component access

Change screens efficiently utilizing the optional screen hoist and the remote control or main machine controls.

Your access to MORE: VermeerOne™

VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real time data to make smarter decisions, and help maximize productivity and profitability.

Safety

Reduce the quantity and distance of thrown material debris with the Thrown Object Deflector (TOD), strategically placed to reduce interference when loading over-length material.

HG6800TX Horizontal Grinder Specs & Compare

GENERAL DIMENSIONS AND LENGTHS - LONG INFEED
Maximum Length - Transport48.1 ft
Maximum Length - Transport with Dolly48.6 ft
Maximum Length (Operation)56.5 ft
Maximum Width (Transport)10 ft
Maximum Width Transport - with Dolly10 ft
Maxium Height (Transport)12 ft
Maximum Height Transport with Dolly12.8 in
Weight92000 lbs
Tongue Weight - Engine Option 1 with Dolly45000 lbs
Axle Weight - Engine Option 1 with Dolly6000 lbs
Weight Engine Option 1 with Dolly105000 lbs
Dolly Weight9500 klbs
ENGINE - OPTION ONE
Make and ModelCaterpillar C27 Tier 4F (Stage 4)
Number of Cylinders12
Gross Horsepower (Maximum)950 hp
Torque (Max)3212 ft-lb
Fuel Tank Capacity350 gal
Max Fuel Consumption47.5 gph
Fuel TypeUltra-low sulfur diesel (<15 ppm)
Air CleanerDry-type with primary and secondary elements and restriction indicator
Oil FilterFull-flow, spin-on
Recommended OilCAT DEO-ULS, or API CJ-4, or ACEA E9 (15w-40)
Oil Volume with Filter71.9 qt
Cooling MediumLiquid
Coolant Capacity (Engine and Radiator)45 gal
Alternator24 Volt
Fan(Qty 2) Variable-speed, reversible
Fan - CACHydraulic (variable speed)
Clutch TypeHydraulic-operated wet clutch with PTO
Clutch EngagementPush-button
Drive Belt TypeV-belt
Sound Power120 dB(A)
ENGINE - OPTION TWO
Make and ModelCaterpillar C27 Tier 2 (Stage II)
Number of Cylinders12
Gross Horsepower (Maximum)950 hp
Torque (Max)3212 ft-lb
Fuel Tank Capacity350 gal
Max Fuel Consumption47.7 gph
Fuel TypeDiesel
Air CleanerDry-type with primary and secondary elements and restriction indicator
Oil FilterFull-flow, spin-on
Recommended OilCAT DEO-ULS, or API CJ-4, or ACEA E9 (15w-40)
Oil Volume with Filter71.9 qt
Cooling MediumLiquid
Coolant Capacity (Engine and Radiator)45 gal
Air to Boil Temperatur126 deg
Alternator24 Volt
Fan(Qty 2) Hydraulically driven, reversible
Clutch TypeHydraulic-operated wet clutch with PTO
Clutch EngagementPush-button
Drive Belt TypeV-Belt
Sound Power120 dB(A)
STANDARD INFEED SYSTEM
Feed Table Width60 in
Feed Table Length - Option One19 ft
Loading Height6 ft
Flare ConstructionIntegrated with infeed
Feed Conveyor TypeWelded slat chain
Drive TypeRadial piston motor
Drive Roller ConstructionWelded steel
Front Idler Roller ConstructionSelf-cleaning steel auger
Infeed Floor ConstructionWelded steel with replaceable UHMW wear plates
Infeed Roller Width56.3 in
Feed opening38-in (96.5-cm) high x 56.4-in (143.3-cm) wide
Infeed roller weight with arm2460 lbs
Infeed roller weight with arm4945 lbs
Infeed Roller Diameter36.1 in
Maximum Feed Height50 in
Material TypeFabricated steel
Tooth DesignSerrated bars
Number of Teeth12
Drive MotorFixed displacement, geroler
Drive Planetary(Qty 2) 34.2:1
Feed Roller Down PressureAdjustable
SAFETY SYSTEM
Thrown Object DeflectorStandard
Deflector PositionVariable
DUPLEX DRUM
Millbox Opening60" W x 38" H
Drum Weight5321 lbs
Drum Diameter28 in
Tip Diameter36.4 in
Drum Cutting Width62.4 in
Drum Skin Thickness1.5 in
Drum Speed1200 rpm
Bearing TypeDouble row, spherical roller
Bearing - Inner Race Diameter6 in
Number of Hammers10
Number of Tips20
Tip option 12-bolt
Tip typesPremium wide
Center Retention Pin Dimensions2" dia x 79.35" L
CHIP DRUM - 9-IN (22.9-CM) KNIVES
Drum Weight6707.5 lbs
Depth of CutAdjustable: .125 in (.31 cm) to 1 in (2.5 cm)
Number of Knives14
Knife Thickness.625 in (1.6 cm)
Useable Edges1
MaterialA8 mod chipper steel
Number of Bolts/Knife4
Replaceable Threaded Knife BlockYes
Number of Pockets14
Shaft diameter6.5 in
Shaft Retention TypeKeyless bushing
CHIP DRUM - 4.5-IN (11.4-CM) KNIVES
Drum Weight6707.5 lbs
Depth of CutAdjustable: 1.125 in (2.86 cm) to 1.5 in (3.81 cm)
Number of Knives14
Knife Thickness.625 in (1.6 cm)
Useable Edges1
MaterialA8 mod chipper steel
Number of Bolts/Knife2
Replaceable Threaded Knife BlockYes
Number of Pockets14
Shaft diameter6.5 in
Shaft Retention TypeKeyless bushing
SCREENS
Screen Weight470 lbs
Screen Dimensions1" thick
Screen TypeAbrasio-resistant steel
Number of Screens2
Screen Area3583 sq in
Millbox lid linerAbrasion-resistant steel
Millbox Lid Liner DimensionsAbrasion resistant steel
Liner Dimensions.75, 1" (1.9 cm, 2.5 cm) thick
Anvil TypeFabricated steel with replaceable wear surfaces
Anvil Dimensions6.6" x 18.2" x 81" (16.7 cm x 46.2 cm x 205.7 cm)
DISCHARGE SYSTEM - SINGLE BELT DESIGN
Length89.3 ft
Width48 in
Belt Design3 ply - 330# or straight warp single ply 330# both with V cleat
SpliceR2-stainless steel or Super splice
Return Roller Quantity6
Idler Roller Diameter12 in
Idler Roller Bearing1-15/16, 4-bolt flange
Standard Drive Roller Diameter12.8 in
Magnetic Drive Roller Diameter12.8 in
Drive MotorFixed displacement, geroler
Drive Motor Bearings1-15/16, 4-bolt flange
Belt Speed877 ft/min
Load Height16.3 ft
HYDRAULIC SYSTEM
Tank capacity100 gal
Recommended OilVermeer HyPower 68
Filtration MethodDual in-tank return filters with suction strainer
Number of Coolers1
IMPLEMENT HYDRAULICS
System TypeOpen-loop, pressure- and flow-compensated
Pump TypeVariable displacement, axial piston
Pump Flow at Maximum RPM63.3 gpm
System Relief Pressure4200 psi
DISCHARGE CONVEYOR HYDRAULICS
System TypeOpen-loop, pressure- and flow-compensated
Pump TypeVariable displacement, axial piston
Pump Flow at Maximum RPM32.3 gpm
System Relief Pressure3000 psi
Motor SeriesChar-Lyn 6000 Series, geroler
FAN DRIVE HYDRAULICS
System TypeOpen-loop, pressure compensated
Pump TypeVariable displacement, axial piston
Pump Flow at Maximum RPM25.7 gpm
Motor SeriesDanfoss KM38
Fan Series - FWD/REVReversible
CLUTCH
Tank capacity21 gal
Recommended OilVermeer VMF Gold
Filtration MethodSpin-on, pressure filter, B6 = 1000
Number of Coolers1
System TypeOpen-loop
Pump TypeFixed displacement, gear pump
Pump Flow at Maximum RPM8.9 gpm
System relief pressure260 psi
ELECTRICAL SYSTEM
System Voltage24 VDC
BatteryGroup 8-D, 1400 CCA (Qty 2)
System ProtectionFused
CONTROL STATION
Display TypeLCD
Engine InformationYes
Machine InformationYes
Operational FaultsYes
Gaugesnone
SwitchesPush-button
RADIO REMOTE CONTROL
Radio remote typeNorth America, South America, Japan: R625-60; All other regions: R524-10
Display TypeLCD
Engine InformationYes
Machine InformationYes
Operational FaultsYes
SwitchesSealed membrane
Operating RangeUp to 300' (91.4 m)
Battery TypeAA (qty 6)
CHASSIS
Frame DescriptionDT6
Tongue DescriptionBolt-on to infeed structure
Hitch TypeFifth wheel
Fender DescriptionFormed steel
Brake TypeAir-actuated with spring-applied parking brake
Trailer Light Type12-24 V LED
AXLE/SUSPENSION
Suspension TypeAir-ride
Manufacturer - Option OneHendrickson
Capacity per Axle20000 lbs
Number of Axles3
Tires - Option One255/70R22.5 Duals
Wheels - Option One22.5"x8.3" hub-piloted steel
Ground Clearance - Option One5.3 in
Tires - Option Two445/50R22.5 LR L (super singles)
Wheels - Option TwoAluminum
Ground Clearance - Option Two5.3 in
TRACKS
Track Frame DescriptionRigid frame with reinforced box section.
Track TypeD5 double grouser
Track Drive Pump TypeVariable displacement, axial piston
Track Drive Motor TypeHydrostatic with planetary transmission
Track Brake TypeSpring-applied, hydraulic-release wet disc parking brake
Track Length on Ground142" (360.7 cm)
Track Width - Option One26" (66 cm)
Track Width Option One - Ground Bearing Pressure - Hard Ground58.3 psi
Track Width Option One - Ground Bearing Pressure - Soft Ground11.4 psi
Type of IdlerD5 excavator rollers
Number of Idlers20
Pump Flow at Maximum RPM57.6 gpm
System relief pressure5000 psi
Maximum Speed2.8 mph
Maximum Creep Speed - (Low)1.4 mph
OPTIONAL AIR COMPRESSOR
Air Compressor BrandMi-T-M
EngineHonda, 11.7 hp
Maximum Pressure175 psi
Maximum Air Flow29 cfm
Tank capacity (5th wheel)30 gal
OTHER OPTIONS
ScreensYes
TipsYes
Special Tools GroupYes
Magnetic discharge conveyor pulleyYes
Extended WarrantyYes
Preventative MaintenanceYes
Special PaintYes
Air CompressorYes
Vermeer Confidence Plus Asset Protection ProgramOptional
