Confident performance

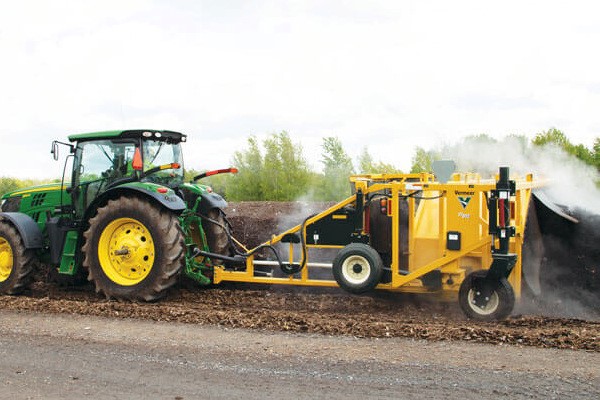

The machine is constructed of four members of structural steel tubing and steel plate. The heavy-duty frame adds rigidity to the unit to help prolong the life of bearings and drum shafts.
The aggressive Vermeer flails ensure aeration and mixing. When properly aerated, the composting cycle is considerably shortened, and site throughput is increased.
A large-diameter drum allows more oxygen to infiltrate the windrow, and a long tongue and adjustable hitch allow for improved visibility and efficient operation.
Ease of maintenance
All grease points are accessible from the ground level.
Safety
Rubber containment curtains draped over the front and back help keep material in the windrow, reducing the quantity and distance of thrown objects.
FRAME | |
Mainframe | Four cross frames constructed of 4 " x 3 " x 3/16 " (10.2 cm x 7.6 cm x 0.5 cm) tubing |
Hitch Frame | 6 " x 3 " x 0.25 " (15.2 cm x 7.6 cm x 0.6 cm) tube |
Sheet Metal | 7 gauge |
GROUND DRIVE | |
Maximum Speed | 20 mph |
PROCESSING TUNNEL | |
Windrow Height | 6 ft |
Windrow Width | 12 ft |
Drum | |
Drum Diameter (including flails) | 35 in |
Length of Drum | 142.8 in |
Number of Flails | 68 |
Flail Dimensions | 0.5 " x 4 " x 12 " (1.3 cm x 10.2 cm x 30.5 cm) |
DRIVE LINE | |
PTO Shaft | Weasler-rated 217 hp (157.3 kW) at 1000 RPM |
Tractor/power unit | Can't exceed 150 hp (111.9 kW) |
Right Angle Gearbox | 1000 RPM [175 hp (130.5 kW) maximum] |
Shaft Coupler | 80 - 2 roller chain coupler |
Drive Line Bearings | 1 15/16 " (1.9 cm) ball bearing |
