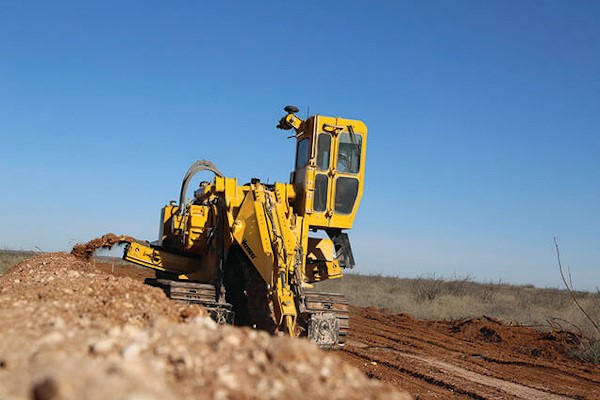

• For trenching projects requiring high horsepower and deep digging depths, Vermeer offers the T1055 trencher
  • When you encounter tough trench digging conditions, the engine speed drops, increasing the torque for more power to pull through
  • Match the optional sectionalized boom to the job for optimal results, minimal tooth wear and reduced vibrations
  • Get a Quote Value Your Trade Request Brochure
  • Send to a Friend
  • Payment Calculator

    • Get information on the T1055III Pipeline Trencher

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the T1055III Pipeline Trencher

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on T1055III Pipeline Trencher

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

T1055III Pipeline Trencher Features & Benefits

Maximum ground penetration and low chain wear

Perform rock excavation effectively with minimal chain wear due to its low-speed, high-torque, splined headshaft motor.

Advanced technology for improved machine efficiency

SmartTEC performance monitoring assists operators with adjustments to machine controls to help improve efficiency and tracks the operational performance of the machine on a consistent platform across all machine models.

Cut a deeper trench with a sectionalized boom

Complimentary to the sectionalized booms, the crumber can be adjusted to accommodate a variety of digging depths.

Elevated operator visibility and comfort

The elevating cab allows optimal visibility and added comfort with the air ride seat.

The sealed cab has self-contained heating and air conditioning with sound attenuating foam.

It is also a rollover protective module (ROPM) and provides falling object protection (FOPS).

T1055III Pipeline Trencher Specs & Compare

TRANSPORT DIMENSIONS
Approach Angle16 deg
Height Range135" (342.9 cm)
Length with 40" (101.6 cm) End Idler and 6 ft (1.83 m) Boom32.2 ft
Length with 40" (101.6 cm) End Idler and 8 ft (2.44 m) Boom34.7 ft
Length with 40" (101.6 cm) End Idler and 10 ft (3.05 m) Boom37.2 ft
Length with 40" (101.6 cm) End Idler and 12 ft (3.66 m) Boom39.7 ft
Length with 40" (101.6 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar)41 ft
Length with 50" (127 cm) End Idler and 8 ft (2.44 m) Boom35.8 ft
Length with 50" (127 cm) End Idler and 10 ft (3.05 m) Boom38.3 ft
Length with 50" (127 cm) End Idler and 12 ft (3.66 m) Boom40.8 ft
Weight Range87,000 lb - 124,000 lb (39,463.5 kg - 56,245.5 kg)
Width Ranges116"-122" (294.6 cm - 309.9 cm)
ENGINE - OPTION ONE
Make and ModelCaterpillar C13 ACERT Tier 3
Gross Horsepower415 hp
Rated Engine RPM2100
Number of Cylinders6
Fuel Tank Capacity184 gal
Operating Range8.8 hours
Fuel Consumption at Full Load20.9 gph
Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles)35 deg
Air CleanerDry-type exhaust aspirated
AspirationTurbocharged and air-to-air aftercooled
Cooling MediumLiquid
Electrical System24 Volt DC
Oil FilterFull flow
ENGINE - OPTION TWO
Make and ModelCaterpillar C13 ACERT Tier 4 Final
Gross Horsepower415 hp
Rated Engine RPM2100
Number of Cylinders6
Fuel Tank Capacity184 gal
Operating Range8.6 hours
Fuel Consumption at Full Load21.3 gph
Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles)35 deg
Air CleanerDry-type with precleaner
AspirationTurbocharged and air-to-air aftercooled
Cooling MediumLiquid
Electrical System24 Volt DC
Oil FilterFull flow
TRACKS
Auto Self LevelNo
Ground Pressure Minimum9.4 psi
Ground Pressure Maximum13.9 psi
Tilt Track AvailableNo
Tilt Track Max Angle0
Track Drive TypeDual path hydrostatic with planetary transmission
Track Length176 in
Track Pad TypeSingle or double grouser
Track Pad Width Ranges24" (61 cm) or 30" (76.2 cm)
Track SizeD7G
Maximum Ground Speed - Low57.1 ft/min
Maximum Ground Speed - High114 ft/min
Parking and Emergency Brakespring-applied, hydraulic release, wet disc brakespring-applied, hydraulic release, wet disc brake
Service BrakesHydrostatic
CONVEYOR
Belt Width30 in
Conveyor Belt Speed Range0-1070 fpm (0-326 m/min)
Conveyor Belt StyleCleated or finger type
Conveyor Length108" or 168" (274.3 cm or 426.7 cm)
Conveyor Shift AvailableYes
Conveyor Shift Distance Range5" or 65" (12.7 cm or 165.1 cm)
Conveyor StyleCurved
Discharge DirectionRight or left
Discharge Height Range64"-78" (162.6 cm - 198.1 cm)
ATTACHMENTS
TrencherYes
Terrain LevelerYes
RockwheelNo
Bucket WheelNo
CAB
CabYes
Control SystemTEC Plus with SmartTEC
Air Conditioner/HeaterYes
Air Suspension SeatNo
AM/FM Stereo with Weather BandYes
ElevatingYes
Pressurized/Filtered AirYes
Rollover Protective Structure (ROPM)Yes
HYDRAULIC SYSTEM
Oil Tank Capacity152 gal
Oil TypeVermeer HyPower 68 or Vermeer HyPower 100
Pressure Setting2500 psi
Pump Flow at Maximum RPM27.9 gpm
Pump Typepressure-and-flow-compensated (load-sensing)
