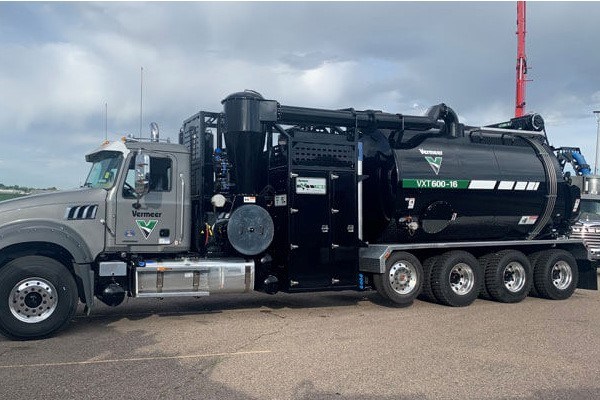

Vermeer VXT600 Vacuum Truck
- 12-yd spoil tank
- 1,200 gal water capacity
- 6,400-cfm blower
- 10-gpm or 19.4- gpm water pump
Shopping Tools
VXT600 Vacuum Truck Features & Benefits
Even weight distribution
The specifically-engineered design of this machine allows for even weight distribution when traveling while maximizing the volume of material hauled.
Ultra quiet
The Jurop 6,400-cfm (181.2-m3/min) blower is capable of 27 inHg (.91 bar) while keeping noise at a minimum.
Side stow boom
The side stow boom allows for quick jobsite setup by allowing the dig tube to always stay connected.
Spoil tank vibrator
An optional vibrator allows for a more efficient way of dumping.
Available winter options
Optional water heater and winter packages for operation in cold climates are available for this vacuum excavator.
VXT600 Vacuum Truck Specs & Compare
| TRUCK | |
| Compatibility | 11-cu-yd spoil tank option |
| Length | 406 in (1031 cm) |
| Width | 100 in (254 cm) |
| Height | 156 in (396 cm) |
| Gross Vehicle Weight Rating (GVWR) | 79000 lbs (35833.8 kg) |
| Truck model | Kenworth T880 |
| Engine | PACCAR |
| Engine model | MX-13 |
| Horsepower | 510 hp (380 kW) |
| Transmission | Allison |
| TRUCK - OPTION TWO | |
| Compatibility | 11-cu-yd spoil tank option |
| Length | 413 in (1049 cm) |
| Width | 100 in (254 cm) |
| Height | 156 in (396 cm) |
| Gross Vehicle Weight Rating (GVWR) | 92000 lbs (41730.5 kg) |
| Truck model | Mack Granite |
| Engine | Mack |
| Engine model | MP8 |
| Horsepower | 505 hp (377 kW) |
| Transmission | M-drive |
| TRUCK - OPTION THREE | |
| Compatibility | 16-cu-yd spoil tank option |
| Length | 466 in (1184 cm) |
| Width | 100 in (254 cm) |
| Empty weight | 48000 lbs (21772.4 kg) |
| Height | 156 in (396 cm) |
| Gross Vehicle Weight Rating (GVWR) | 105000 lbs (47627.2 kg) |
| Truck model | Kenworth T880 |
| Engine | PACCAR |
| Engine model | MX-13 |
| Horsepower | 510 hp (380 kW) |
| Transmission | Allison |
| TRUCK - OPTION FOUR | |
| Compatibility | 16-cu-yd spoil tank option |
| Length | 473 in (1201 cm) |
| Width | 100 in (254 cm) |
| Height | 156 in (396 cm) |
| Truck model | Mack Granite |
| Engine | Mack |
| Engine model | MP8 |
| Horsepower | 506 hp (377 kW) |
| WATER TANK | |
| Compatibility | 11-cu-yd spoil tank option |
| Water capacity | 1300 gal (4921 kg) |
| Number of Tanks | 1 |
| High pressure pump flow rate | 19.2 gpm (72.7 L/min) |
| High Pressure Pump | 4000 psi (275.8 bar) |
| High pressure hose length | 75 ft (22.9 m) |
| Low Water Shutoff | Electronic sensor indicators |
| WATER TANK - OPTION TWO | |
| Compatibility | 16-cu-yd spoil tank option |
| Water capacity | 2400 gal (9085 L) |
| Number of Tanks | 1 |
| High pressure pump flow rate | 19.2 gpm (72.7 L/min) |
| High Pressure Pump | 4000 psi (275.8 bar) |
| High pressure hose length | 75 ft (22.9 m) |
| Low Water Shutoff | Electronic sensor indicators |
| SPOIL TANK | |
| Compatibility | 11-cu-yd spoil tank option |
| Spoil tank capacity | 11 cu-yd |
| Door type | Full radius, half-moon rear door |
| Tank Lift Type | 3-stage joist |
| SPOIL TANK - OPTION TWO | |
| Compatibility | 16-cu-yd spoil tank option |
| Spoil tank capacity | 16 cu-yd |
| Door type | Full radius, half-moon rear door |
| Tank Lift Type | 3-stage joist |
| VACUUM | |
| Type of Filters | Dual cyclonic |
| Hose length | 25 ft (7.6 m) |
| Hose width/diameter | 8 in |
| Vacuum | 6400 cfm (181.2 cubic m/min) |
| Vacuum blower type | Jurop Helix 2000 |
| Vacuum Mercury | 27 inHg (0.9 bar) |
| CONTROL PANEL | |
| Gauges | Digital on IFM processor 12-in screen |
| BOOM | |
| Weight | 21 ft (6.4 m) |
| Reach | 26 ft (7.9 m) |
| Hose diameter | 8 in (3.14 cm) |
| Movement | 300 deg rotation |
| Remote ControlI | FM wireless |
| OPTIONS | |
| Hot box | Easy Kleen - 420K BTU (standard) |
| Hydraulic centrifugal 4-in pump | Optional |
