• 500 gal - 1,200 spoil tank
  • 100 gal - 410 gal water capacity
  • 1,025-cfm blower
  • 5.6 gpm water pump
  • Get a Quote Value Your Trade Request Brochure
  • Send to a Friend
  • Payment Calculator

    • Get information on the VX50 Vacuum Excavator

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the VX50 Vacuum Excavator

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on VX50 Vacuum Excavator

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

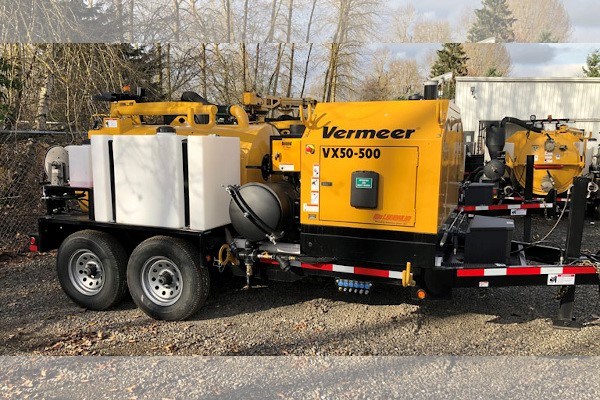

VX50 Vacuum Excavator Features & Benefits

Minimizes cleanup time

This vacuum excavator delivers a high-pressure water spray to the tank interior, helping to simultaneously dump material and clean the inside of the tank, minimizing cleanup time and helping remove difficult debris.

Helps clean the air

Three stage filtration helps prolong filter and blower life and is suitable for wet and dry applications. The cyclones use a vortex system which forces particles into a separate canister and the filtered stream is sent to the final poly filter.

Simple cam-over rear door

Provides a 360-degree positive seal, even under reverse pressure without additional clamping requirements. The highly reliable cam-over door has no in-tank moving parts, so all maintenance is external.

Ease of service

Remote fluid drains and grease points are centrally-located near operator controls for ease of service.

Enhances belt longevity

Remote fluid drains and grease points are centrally-located near operator controls for ease of service.

VX50 Vacuum Excavator Specs & Compare

TRAILER
Compatibility500-gal (1892.7-L) spoil tank option
Length203.5 in (516.9 cm)
Width98.1 in (249.2 cm)
Height85.9 in (218.2 cm)
Empty weight6370 lbs (3025.5 kg)
Gross Vehicle Weight Rating (GVWR)12000 lbs (5443.1 kg)
Trailer axles(2) 6000 lbs (2721 kg)
TRAILER - OPTION TWO
Compatibility800-gal (3028.3-L) spoil tank option
Length237.3 in (602.7 cm)
Width98.1 in (249.2 cm)
Height91.9 in (233.4 cm)
Empty weight7270 lbs (3297.6 kg)
Gross Vehicle Weight Rating (GVWR)18000 lbs (8164.7 kg)
Trailer axles(2) 9000 lbs (4082 kg)
TRAILER - OPTION THREE
Compatibility1200-gal (4542.5-L) spoil tank option
Length268.5 in (682 cm)
Width101.5 in (257.8 cm)
Height112.8 in (286.5 cm)
Empty weight9275 lbs (4207.1 kg)
Gross Vehicle Weight Rating (GVWR)26000 lbs (11793.4 kg)
Trailer axles(2) 15000 lbs (6804 kg)
TRAILER - OPTION FOUR
Compatibility500-gal (1892.7-L) light spoil tank option
Length203.5 in (516.9 cm)
Width98.1 in (249.2 cm)
Height85.9 in (218.2 cm)
Empty weight6250 lbs (2834.9 kg)
Gross Vehicle Weight Rating (GVWR)9999 lbs (4535.5 kg)
Trailer axles(2) 6000 lbs (2721 kg)
TRAILER - OPTION FIVE
Compatibility800-gal (3028.3-L) light spoil tank option
Length237.3 in (602.7 cm)
Width98.1 in (249.2 cm)
Height91.9 in (233.4 cm)
Empty weight7170 lbs (3252.3 kg)
Gross Vehicle Weight Rating (GVWR)16000 lbs (7252.5 kg)
Trailer axles(2) 9000 lbs (4082 kg)
ENGINE
Make and ModelKubota Tier 4 Final
Horsepower49 hp (37 kW)
Fuel tank capacity or type22 gal (83.3 L)
EnclosureYes
WATER TANK
Compatibility500-gal (1892.7-L) spoil tank option
Water capacity250 gal (942 L)
Number of Tanks2
High pressure pump flow rate5.6 gpm (21.2 L/min)
High Pressure Pump3000 psi (206.8 bar)
High pressure hose length50 ft (15 m)
Low Water ShutoffElectric
WATER TANK - OPTION TWO
Compatibility800-gal (3028.3-L) spoil tank option
Water capacity410 gal (1552 L)
Number of Tanks2
High pressure pump flow rate5.6 gpm (21.2 L/min)
High Pressure Pump3000 psi (206.8 bar)3000 psi (206.8 bar)
High pressure hose length50 ft (15 m)
Low Water ShutoffElectric
WATER TANK - OPTION THREE
Compatibility1200-gal (4542.5-L) spoil tank option
Water capacity410 gal (1552 L)
Number of Tanks2
High pressure pump flow rate5.6 gpm (21.2 L/min)
High Pressure Pump3000 psi (206.8 bar)
High pressure hose length50 ft (15 m)
Low Water ShutoffElectric
WATER TANK - OPTION FOUR
Compatibility500-gal (1892.7-L) light spoil tank option
Water capacity100 gal (379 L)
Number of Tanks2
High pressure pump flow rate5.6 gpm (21.2 L/min)
High Pressure Pump3000 psi (206.8 bar)
High pressure hose length50 ft (15 m)
Low Water ShutoffElectric
WATER TANK - OPTION FIVE
Compatibility800-gal (3028.3-L) light spoil tank option
Water capacity250 gal (946 L)
Number of Tanks2
High pressure pump flow rate5.6 gpm (21.2 L/min)
High Pressure Pump3000 psi (206.8 bar)
High pressure hose length50 ft (15 m)
Low Water ShutoffElectric
SPOIL TANK
Compatibility500-gal (1892.7-L) spoil tank option
Spoil tank capacity500 gal (1892.7 L)
Door typeCam-over hydraulic
Tank Lift TypeDual cylinder
SPOIL TANK - OPTION TWO
Compatibility800-gal (3028.3-L) spoil tank option
Spoil tank capacity800 gal (3028.3 L)
Door typeCam-over hydraulic
Tank Lift TypeDual cylinder
SPOIL TANK - OPTION THREE
Compatibility1200-gal (4542.5-L) spoil tank option
Spoil tank capacity1200 gal (4542.5 L)
Door typeCam-over hydraulic
Tank Lift TypeDual cylinder
SPOIL TANK - OPTION FOUR
Compatibility500-gal (1892.7-L) light spoil tank option
Spoil tank capacity500 gal (1892.7 L)
Door typeCam-over hydraulic
Tank Lift TypeDual cylinder
SPOIL TANK - OPTION FIVE
Compatibility800-gal (3028.3-L) light spoil tank option
Spoil tank capacity800 gal (3028.3 L)
Door typeCam-over hydraulic
Tank Lift TypeDual cylinder
VACUUM
Type of Filters2 micron washable
Hose length(2) 15 ft (4.6 m)
Hose width/diameter4 in
Vacuum1025 cfm (29 cubic m/min)
Vacuum blower typePD blower
Vacuum Mercury15 inHg (0.5 bar)
CONTROL PANEL
ControlsCurbside
GaugesAnalog
BOOM
AvailabilityOptional
Weight1200 lbs (544.3 kg)
Reach14 ft (4.3 m)
Movement270 deg on 14-in turret bearings
Remote ControlWireless
OPTIONS
Hot boxOptional
Strong armOptional on 500-gal (1,892.7-L) and 800-gal (3,028.3-L) spoil tank options
Recirculation kitOptional
Hydraulic jackOptional
Reverse PressureStandard on 500-gal (1,892.7-L) and 800-gal (3,028.3-L) spoil tank options; optional on 1200-gal (4542.5-L) spoil tank option
