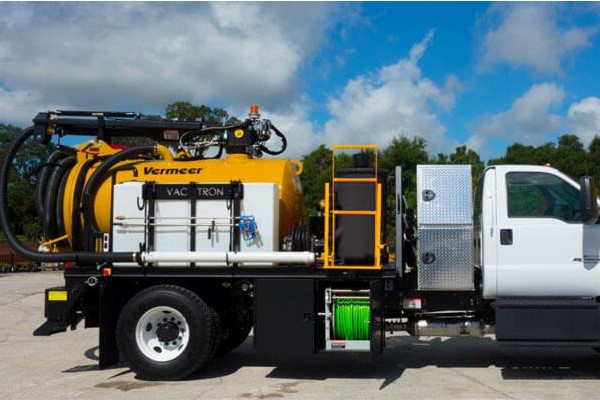

Vermeer JTV873 PTO Vacuum Excavator
- 4-yd spoil tank
- 400-gal of water
- 1,000-cfm blower
- 15-gpm water pump
Shopping Tools
JTV873 PTO Vacuum Excavator Features & Benefits
Helps clean the air
The CVS filter housing has a .5 micron filtration that contains the four-way valve for reverse pressure and an oversized silencer for quiet operation. The silencer is located inside the 28-in (71-cm) diameter cyclone.
Versatile jetter package
The 15-gpm (57-L/min) at 3,000-psi (206.8) water pump with 425-ft x .5-in (129.5-m x 12.7-mm) jetter hose comes with an electric self-retracting hose reel.
Optional strong arm®
With 270-degree rotation, the strong arm supports the weight of the vacuum hose, and the roller head allows for ease of handling by allowing smooth, fluid movements and adjustments.
User friendly hydraulic boom option
The hydraulic boom offers a full six-way function, wireless remote with vacuum valve operation, 330-degree rotation, remote water jet for ease of cleanout and a 5-in (12.7-cm) hose with quick connect to 4-in (10.2-cm) tooling.
Optimized weight, space and cost
All components are controlled from the truck, eliminating the extra weight, space and cost of the pony motor.
JTV873 PTO Vacuum Excavator Specs & Compare
| TRUCK | |
| Length | 345 in (876.3 cm) |
| Width | 102 in (259 cm) |
| Empty weight | 16500 lb (7451.6 kg) |
| Height | 120 in (305 cm) without boom |
| Gross Vehicle Weight Rating (GVWR) | 26000 lb (11793 kg) |
| Truck model | Ford F-650 |
| Engine | PTO driven |
| TRUCK - OPTION TWO | |
| Length | 345 in (876.3 cm) |
| Width | 102 in (259 cm) |
| Empty weight | 18000 lb (8165 kg) |
| Height | 120 in (305 cm) without boom |
| Gross Vehicle Weight Rating (GVWR) | 33000 lb (14969 kg) |
| Truck model | Ford F-750 |
| Engine | PTO driven |
| WATER TANK | |
| Water capacity | 400 gal (1514 L) |
| Number of Tanks | 2 |
| High pressure pump flow rate | 15 gpm (57 L/min) |
| High Pressure Pump | 3000 psi (206.8 bar) |
| High pressure hose length | 425 ft (130 m) |
| Low Water Shutoff | Electric |
| SPOIL TANK | |
| Spoil tank capacity | 800 gal (3028.3 L) |
| Door type | Hydraulic |
| Tank Lift Type | Scissor lift |
| VACUUM | |
| Type of Filters | Cartridge filter 0.5 microns |
| Hose length | 30 ft (9.1 m) |
| Hose width/diameter | 4 in (10.2 cm) |
| Vacuum | 1000 cfm (28 cubic m/min) |
| Vacuum blower type | PD blower |
| Vacuum Mercury | 16 inHg (0.6 bar) |
| CONTROL PANEL | |
| Controls | Curbside |
| BOOM | |
| Availability | Optional |
| Weight | 400 lb (181 kg) |
| Reach | 15 ft (4.6 m) |
| Movement | 330 deg |
| Remote Control | Wireless |
| JETTER PUMP | |
| Waer flow | 15 gpm (57 L/min) |
| Water pressure | 3000 psi (206.8 bar) |
| Jetter hose length | 425 ft |
| Jetter hose diameter | .5 in |
| OPTIONS | |
| Hot box | Optional |
| Strong arm | Optional |
| Recirculation kit | Optional |
| Reverse Pressure | Standard |
