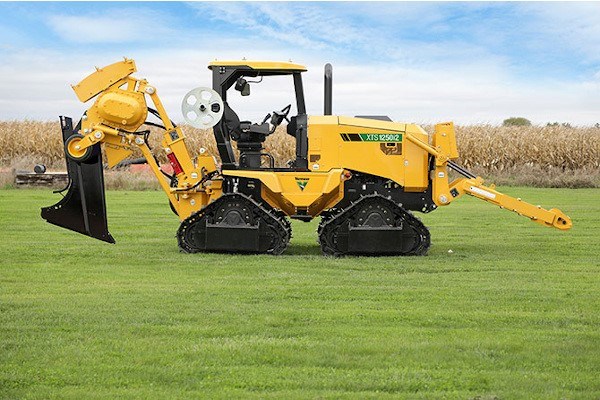

The XTS1250i2 ride-on tractor follows the durability of the XTS1250 ride-on tractor, with steel quad tracks which can offer enhanced floatation and traction in difficult terrain. The XTS1250 has added intelligent features such as onboard diagnostics and other productivity features including EcoIdle™ engine control system and Productivity Zone can help you through harsh ground conditions and tough installs. Plus, with an optional climate-controlled cab for operator comfort, and an optional remote control to help perform maintenance, as well as trailer loading and unloading, the XTS1250i2 helps create a more comfortable, convenient and productive jobsite.
  • Get a Quote Value Your Trade Request Brochure
  • Send to a Friend
  • Payment Calculator

    • Get information on the XTS1250I2 Ride-On Tractor

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the XTS1250I2 Ride-On Tractor

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on XTS1250I2 Ride-On Tractor

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

XTS1250I2 Ride-On Tractor Features & Benefits

PRODUCTIVITY

The XTS1250i2 helps optimize productivity with classic and newly added intelligent features such as EcoIdle™  engine control system and Productivity Zone.

REMOTE CONTROL

Utilize an optional remote control for convenient maintenance and trailer loading and unloading.

VERMEER TELEMATICS-READY

Stay in-sync with, and get optimal productivity out of, your machine by adding Vermeer telematics to this tractor.

STEEL QUAD TRACKS

Four independent steel tracks can offer enhanced flotation and traction with four-wheel and crab steering options.

OPERATOR COMFORT

The XTS1250i2 boasts a quiet ride, convenient controls and an isolated, cushioned operator's platform. An optional all-new climate-controlled cab is also available.

POWER FOR THE JOB

The XTS1250i2 is powered by a 127 hp (95 kW) Duetz TCD3.6L diesel engine which offers efficient power for working in difficult ground conditions.

XTS1250I2 Ride-On Tractor Specs & Compare

GENERAL DIMENSIONS AND WEIGHTS
Weight - Tractor with Closed Cab 21165 lbs
Weight - Tractor with Open Cab 20215 lbs
Length (basic tractor, tracks) 152 in
Width (basic tractor, tracks) 100.5 in
Height (With Four-Post ROPS) 122 in
Height (cab, tracks) 122 in
Ground Clearance (tracks) 20.5 in
Angle of approach (basic tractor, tracks) 20 deg
Roll Over Protection Structure (Closed Cab) 40000 lbs
Roll Over Protection Structure (Open Cab) 40000 lbs
ENGINE - OPTION ONE
Make and Model Deutz TCD 3.6L
Gross Horsepower (Maximum) 127 hp
Maximum Torque 369 ft-lb
Number of Cylinders 4
Maximum Operating Angle (Fore/Aft)* 40 deg
Maximum Operating Angle (Left/Right)* 40 deg
Fuel Type Ultra Low Sulfur Diesel
Net Horsepower 124 hp
Displacement 220 cu-in
Cooling Method Liquid
Aspiration Turbo Charged
Max Fuel Consumption 6.9 gph
Air Cleaner Donsaldson Power Core
Maximum Engine RPM 2300 rpm
Idle Speed 1000 rpm
Rated RPM 2300 rpm
EPA Certification Family Tier 4 (Stage IV)
Run Time at Full Load (hours) 6.3
ENGINE - OPTION TWO
Make and Model Duetz TCD 3.6L
Gross Horsepower 127 hp
Maximum Torque 369 ft-lb
Number of Cylinders 4
Maximum Operating Angle (Fore/Aft)* 40 deg
Maximum Operating Angle (Left/Right)* 40 deg
Fuel Type Ultra Low Sulfur Diesel
Maximum Engine RPM 2300 rpm
Idle Speed 1000 rpm
Rated RPM 2300 rpm
Net Horsepower 124 hp
Displacement 220 cu-in
Cooling Method Liquid
Aspiration Turbo Charged
Max Fuel Consumption 6.9 gph
Air Cleaner Donaldson Power Core
EPA Certification Family Tier 3 (Stage III)
Run Time at Full Load (hours) 6.3
GROUND DRIVE - TRACKS
Outside Turning Diameter (Steel Tracks, Front Steer Only) 57.5 ft
Outside Turning Diameter (Steel Tracks, Front and Rear Steer Only) 36.7 ft
Axle oscillation (front) 8
Axle oscillation (optional rear tilt) Rigid
Track oscillation (center down) 17.8 deg
Track oscillation (center up) 5.6 deg
Ground pressure (basic tractor only) 14.7 psi
Maximum forward transport speed (high) 7.1 mph
Maximum reverse transport speed (high) 7.1 mph
Maximum forward creep speed (low) 3.9 mph
Maximum reverse creep speed (low) 3.9 mph
Maximum forward creep speed (low) 342 ft/min
Maximum reverse creep speed (low) 342 ft/min
HYDRAULIC SYSTEM
Auxiliary Pump Flow at Maximum Engine RPM 17.6 gpm
Auxiliary Pump Relief Pressure 2500 psi
Attachment Pump gpm at Maximum Engine RPM 61.8 gpm
Attachment pump relief 5510 psi
Ground Drive Pump gpm at Maximum Engine RPM 36.7 gpm
Hydraulic Return Filter Rating 1000
ELECTRICAL SYSTEM
System Voltage 12
FLUID CAPACITIES
Fuel Tank 44 gal
Engine Crankcase with Filter 11.1 qt
Hydraulic Tank 31.6 gal
Hydraulic System 35.6 gal
Engine Cooling System (With Cab) 4.9 gal
Engine Cooling System (Without Cab) 4.2 gal
Diesel Exhaust Fluid 2.7 gal
NOISE LEVEL
Sound Level (open air) at operator's ear 83 dBa
Sound Level (In Cab) at Operator's Ear 75 dBa
Sound Level (backhoe) at operator's ear 87 dBa
Guaranteed sound power (CE-rating) 104 dBa
CAB FEATURES
Power Port 12-Volt (2)
LED Lights Interior - LED, Exterior - LED
Radio Standard 2 speakers
FEATURES
Service Brake Type Hydrostatic
Parking Brake Type Spring applied hydraulic release
Quad Tracks Four independent steel tracks bolt on to existing axle
Remote Control Optional
