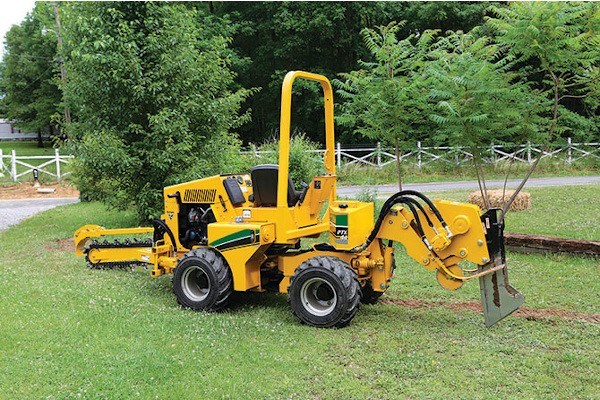

Vermeer PTX44 Plow/Trencher
- Versatile machine for utility contractors
- Customizable for your job
Shopping Tools
PTX44 Plow/Trencher Features & Benefits
Maximum productivity
Features a dedicated plow [24 in (60.9 cm) maximum installation depth] with the option to utilize a forward-mounted trencher [42 in (106.7 cm) maximum trenching depth and 6 in (15.2 cm) maximum trenching width] and/or bore attachment.
Control and visibility
Electronic controls allow the operator to preset the creep speed to optimize performance on longer distance installations, enhancing productivity while maximizing operator comfort.
The operator’s station is located at the center of the service plow directly above the machine’s articulation point, providing excellent visibility of the work area.
Serviceability
Access to hydraulic and engine oil filters does not require removal of any shielding, making service and preventive maintenance more efficient.
Your access to MORE: VermeerOne™
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real-time data to make smarter decisions, and help maximize productivity and profitability.
PTX44 Plow/Trencher Specs & Compare
| GENERAL DIMENSIONS AND WEIGHTS | |
| Weight (basic tractor, rubber tires) | 2940 lbs |
| Weight (basic tractor, rubber tires, option two) | 3188 lbs |
| Weight (basic tractor, tracks) | 3840 lbs |
| Length (basic tractor, rubber tires) | 84.8 in |
| Length (basic tractor, rubber tires, option two) | 84.8 in |
| Length (basic tractor, tracks) | 92.8 in |
| Width (basic tractor, rubber tires) | 48 in |
| Width (basic tractor, rubber tires, option two) | 60 in |
| Width (basic tractor, tracks) | 44.5 in |
| Height (basic tractor, rubber tires) | 89.5 in |
| Height (basic tractor, rubber tires, option two) | 88 in |
| Height (basic tractor, tracks) | 88.5 in |
| Wheel Base (Centerline of Axles) | 48 in |
| Tread Width with Rubber Tires (Centerline to Centerline) | 36 in |
| Tread Width with Rubber Tires Option Two (Centerline to Centerline) | 39 in |
| Tread Width with Rubber Tracks (Centerline to Centerline) | 32.3 in |
| Ground Clearance (rubber tires) | 7.4 in |
| Ground Clearance (rubber tires, option two) | 6.4 in |
| Ground Clearance (tracks) | 6.9 in |
| ENGINE - OPTION ONE | |
| Make and Model | Kubota WG1605 |
| Gross Horsepower (Maximum) | 46.8 hp |
| Maximum Torque | 88.7 ft-lb |
| Cooling Medium | Liquid |
| Fuel Type | Gasoline |
| Emissions rating | EPA Phase 3 and CARB LSI |
| GROUND DRIVE - RUBBER TIRE | |
| Maximum forward transport speed (high) | 2.7 mph |
| Maximum reverse transport speed (high) | 2.7 mph |
| Tire size | 26" x 12" (66 cm x 30.5 cm) |
| GROUND DRIVE - RUBBER TIRE OPTION TWO | |
| Maximum forward transport speed (high) | 2.4 mph |
| Maximum reverse transport speed (high) | 2.4 mph |
| Tire size | 23" x 10.5" (58.4 cm x 26.7 cm) duals |
| GROUND DRIVE - TRACKS | |
| Maximum forward transport speed (high) | 2.4 mph |
| Maximum forward creep speed (low) | 127 ft/min |
| Track width | 11 in |
| AXLE OPTIONS | |
| Front Axle Type | Planetary |
| Rear Axle Type | Planetary |
| Axle load rating (static, per axle) | 14800 lbs |
| Outside Turning Diameter (Rubber Tires, Front Steer Only) | 18.9 ft |
| Outside Turning Diameter (Rubber Tires Option Two, Front Steer Only) | 19.9 ft |
| Service Brake Type | Hydrostatic |
| Parking Brake Type | Drum |
| HYDRAULIC SYSTEM | |
| Auxiliary pump capacity | 10.4 gpm |
| Auxiliary pump relief | 2500 psi |
| Attachment pump capacity | 24 gpm |
| Attachment pump relief | 2900 psi |
| Ground drive pump capacity | 33.3 gpm |
| Ground drive pump relief | 2900 psi |
| CAPACITIES | |
| Fuel Tank | 12 gal |
| Hydraulic Tank | 9 gal |
| Hydraulic System | 11 gal |
| Coolant | 1.3 gal |
