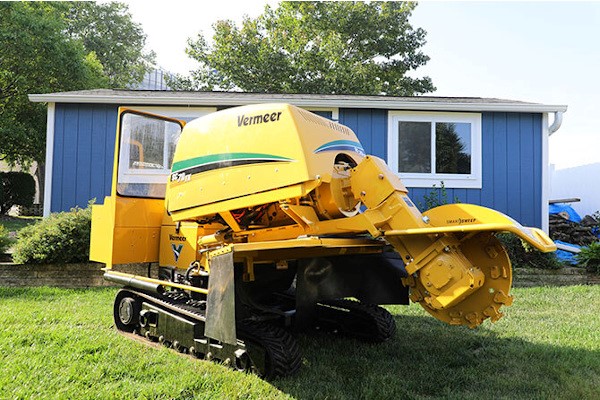

Vermeer SC70TX Stump Cutter
- Productivity powerhouse
- Maximized power delivery at the stump
- Mobility and jobsite flexibility that professionals love
Shopping Tools
SC70TX Stump Cutter Features & Benefits
Designed for productivity
Featuring a 67-hp (49.3-kW) turbocharged Cat diesel engine — the SC70TX is ready for tough cutting jobs.
The ground drive speed helps transport the machine between stumps to increase productivity on the job.
Gearbox drive cutter wheel system directs the maximum amount of horsepower to the cutter wheel for optimal jobsite productivity.
SmartSweep™ control system helps improve efficiency and productivity at the stump while helping to minimize wear and tear on the machine.
Jobsite flexibility
The track system is designed to help you work efficiently and confidently by maximizing stability and minimizing ground disturbance.
Maneuverability is enhanced by the electric-over-hydraulic control system, allowing the operator to navigate the machine in tight spaces.
Options for both the Vermeer cutting system (VCS) or Yellow Jacket™ cutter system give you the choice to select the wheel that is right for your operation and ground conditions.
Optional remote control enables operation of the machine from a distance and enhances jobsite visibility.
Operator safety
The swing out control station helps protect the operator from thrown objects while providing optimal visibility at the stump.
The operator presence system allows the cutter wheel to automatically stop when the operator releases the hydraulic cutter wheel controls.
Your access to MORE: VermeerOne™
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real time data to make smarter decisions, and help maximize productivity and profitability.
SC70TX Stump Cutter Specs & Compare
| GENERAL DIMENSIONS AND WEIGHTS | |
| Length | 141.6 in |
| Width | 51 in |
| Height | 72 in |
| Weight - Engine Option One | 3900 lbs |
| ENGINE - OPTION ONE | |
| Make and Model | CAT C2.2 turbocharged Tier 4 final/Stage V Diesel |
| Gross Horsepower (Maximum) | 67 hp |
| Torque (Max) | 153 ft-lb |
| Fuel Tank Capacity | 12 gal |
| Max Fuel Consumption | 3.8 gph |
| Fuel Type | Ultra-low sulfur diesel |
| Air Cleaner | Dry-type, restriction indicator, evacuator valve, safety element |
| Oil Filter | Spin-on |
| Recommended Oil | 10W-30 |
| Oil Volume with Filter | 8.5 qt |
| Cooling Medium | Water/Antifreeze |
| Coolant Capacity (Engine and Radiator) | 2.9 gal |
| Alternator | 85A |
| Fan | 16.5 in (40.7 cm) |
| Clutch Type | Electric clutch with brake |
| CUTTERWHEEL SYSTEM | |
| Cutterwheel Diameter without Teeth | 23 in |
| Cutterwheel Thickness | 1.1 in |
| Cutterwheel Speed | 948 rpm |
| Cutterwheel Straight Line Dimension | 65 in |
| Cutterwheel Cut Above Ground | 27 in |
| Cutterwheel Cut Below Ground | 16 in |
| Tooth Description | Yellow Jacket cutter system |
| Number of Teeth | 30 |
| Number of Indexes | 2 |
| Number of Pockets | 30 |
| Reversible Pockets | 30 |
| Cutterwheel Guard | Standard |
| Chip Containment | 23 cu ft |
| CUTTERWHEEL DRIVE COMPONENTS | |
| Upper Gearbox | Straight bevel |
| Oil Type | SAE 75W90 synthetic gear oil |
| Oil Capacity | 1.7 qt |
| Lower Gearbox | Straight bevel |
| Oil Type - Lower Gearbox | SAE 75W90 synthetic gear oil |
| Oil Capacity - Lower Gearbox | 2.2 qt |
| Driveshaft | 2 universal joints |
| Driveshaft - U Joints | Two standard with double lip seal |
| HYDRAULIC SYSTEM | |
| Tank capacity | 9.6 gal |
| Recommended Oil Type | Vermeer Hypower 68 |
| System Type | Tandem gear pump, pressure balanced |
| Filtration Method | Full-flow 4 micron return filter, suction strainer |
| Pump Flow at Maximum RPM | 9 gpm |
| System relief pressure | 3000 psi |
| Flow Control | Yes |
| Directional Control | Yes |
| ELECTRICAL SYSTEM | |
| System Voltage | 12 |
| Battery | 950 CCA |
| Warning Lights | Engine faults |
| Switches | Boom swing, boom height, creep propel, ignition, clutch, track gage, track speed range, SmartSweep, throttle |
| Controller | Vermeer C248 with SmartSweep |
| Display | Multifunction display (MFD); Displays - hours, fuel level, engine speed, engine faults and engine status |
| Shutdown System | High engine temperature and low oil pressure |
| Radio Remote Control | Optional, wireless |
| CHASSIS | |
| Control Station Description | Swing-out |
| Operator Vision Shield Description | Abrasion-resistant coated polycarbonate |
| Brake Type | Spring-applied and hydraulically released dual parking brakes |
| TRACK DRIVE SYSTEM | |
| Track Frame Description | Tube and plate |
| Track Type | 9-in (22.9-cm) rubber iron core |
| Track Width - Retracted | 35 in |
| Track Width - Extended | 51 in |
| Track Length on Ground | 51.2 in |
| Number of Idlers | 10 |
| Track Drive Pump Type | Tandem gear pump, pressure balanced |
| System Relief Pressure | 2900 psi (200 bar) |
| Pump Flow at Maximum RPM | 9 gpm |
| Track Drive Motor Type | Integral motor and planetary unit |
| Track Brake Type | Integrated into motor/planetary unit |
| High Speed Travel | 1.6 mph |
| Low Speed Travel | .7 mph |
| Ground Bearing Pressure - Soft Ground | 4.3 psi |
| REMOTE CONTROL OPTION | |
| Radio Remote Control | Optional |
| Remote Functions | E-stop, throttle, cutter wheel clutch, boom swing, boom height, propel, track mode, track speed range, SmartSweep |
| Remote Display | LCD with remote control and machine functions status |
| OTHER OPTIONS | |
| Special Paint | Optional |
| Extended Warranty | Optional |
| Preventive Maintenance | Optional |
| OPERATOR PRESENCE SYSTEM | |
| Description | Yes |
| Sensor Type | Capacitive |
| Quantity/Location | 2 |
| Visual Interface | Yes |
