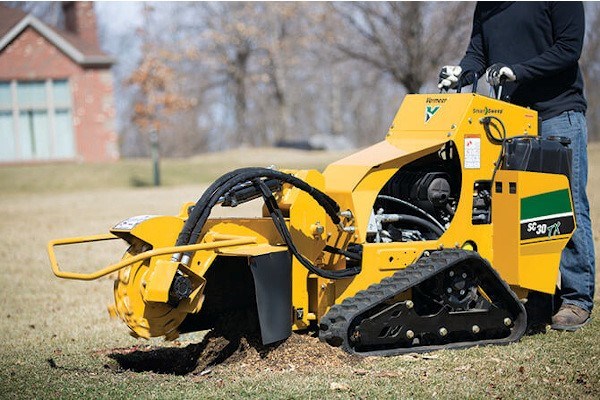

Vermeer SC30TX Stump Cutter
- A compact footprint for maneuverability and access
- Designed with ease of maintenance in mind
- Safety-focused design
Shopping Tools
SC30TX Stump Cutter Features & Benefits
Brains and brawn
Exclusive SmartSweep™ control system monitors engine load and provides continuous feedback, resulting in a smooth and consistent cutter wheel sweep rate.
Options for both the Vermeer cutting system (VCS) or Yellow Jacket™ cutter system give you the choice to select the wheel that is right for your operation and ground conditions.
A 25-hp (18.4-kW) EFI gas engine starts well in colder weather, makes choke cables obsolete and offers improved fuel economy over comparable carbureted gas engines.
Easy to maintain
The hydraulically driven cutter wheel and hydrostatic ground drive eliminate belts or chain drives, reducing service and maintenance needs.
An accessible design provides quick access to the engine and daily service components for ease of maintenance.
Operator safety
The operator presence system allows the cutter wheel to automatically stop when the operator releases the hydraulic cutter wheel controls.
Your access to MORE: VermeerOne™
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real time data to make smarter decisions, and help maximize productivity and profitability.
SC30TX Stump Cutter Specs & Compare
| GENERAL DIMENSIONS AND WEIGHTS | |
| Length | 94 in |
| Width | 35 in |
| Height | 49 in |
| Weight - Engine Option One | 1550 lbs |
| ENGINE - OPTION ONE | |
| Make and Model | Kohler ECH740 |
| Number of Cylinders | 2 |
| Gross Horsepower (Maximum) | 25 hp |
| Torque (Max) | 42 ft-lb |
| Fuel Tank Capacity | 6.8 gal |
| Max Fuel Consumption | 2.4 gph |
| Fuel Type | Gas |
| Air Cleaner | 6 " (15.2 cm) 2-Stage dry |
| Oil Filter | Spin-on |
| Recommended Oil | Kohler oil or API CH4/SJ |
| Oil Volume with Filter | 2 qt |
| Maximum Angle of Continuous Operation | 25 deg |
| Cooling Medium | Air/oil |
| CUTTERWHEEL SYSTEM | |
| Cutterwheel Diameter without Teeth | 16 in |
| Cutterwheel Thickness | .5 in |
| Cutterwheel Speed | 1110 rpm |
| Cutterwheel Straight Line Dimension | 35.5 in |
| Cutterwheel Cut Above Ground | 25 in |
| Cutterwheel Cut Below Ground | 12 in |
| Tooth Description | Yellow Jacket Cutter System |
| Number of Teeth | 16 |
| Number of Indexes | 2 |
| Number of Pockets | 16 |
| Reversible Pockets | Yes |
| Cutterwheel Guard | Yes |
| Chip Containment | 2.2 cu ft |
| CUTTERWHEEL DRIVE COMPONENTS | |
| Lower Gearbox | Hydraulic motor |
| HYDRAULIC SYSTEM | |
| Tank capacity | 9 gal |
| Recommended Oil Type | ISO 68 |
| System Type | Open loop |
| Filtration Method | Inline return filter |
| Pump Flow at Maximum RPM | 16 gpm |
| System relief pressure | 2750 psi |
| Flow Control | Autosweep (option) |
| Directional Control | Standard |
| Oil Cooler | Yes. Fan-cooled |
| ELECTRICAL SYSTEM | |
| System Voltage | 12 |
| Battery405 | |
| Standard GaugesHour meter/tach | |
| SwitchesCutter wheel drive | |
| ControllerYes | |
| CHASSIS | |
| Control Station Description | Fixed-rear |
| TRACK DRIVE SYSTEM | |
| Track Type | Rubber 7 " (17.8 cm) width |
| Track Width - Retracted | 35 " (88.9 cm) |
| Track Width - Extended | 35 " (88.9 cm) |
| Track Length on Ground | 31.4 " (79.7 cm) |
| Type of Idler | Cast |
| Number of Idlers | 5 |
| Track Drive Pump Type | Hydrostatic |
| System Relief Pressure | 2900 psi (200 bar) |
| Pump Flow at Maximum RPM | 11.4 gpm (43.1 L/min) |
| Track Drive Motor Type | Geroter |
| Track Brake Type | Hydrostatic |
| High Speed Travel | 3.2 mph |
| Ground Bearing Pressure - Soft Ground | 3.4 psi |
| OTHER OPTIONS | |
| Special Paint | Per request |
| Extended Warranty | Per request |
| Preventive Maintenance | Per request |
