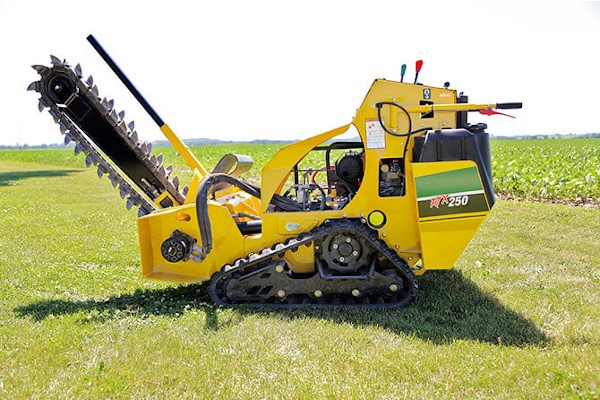

RTX250 Pedestrian Trencher Features & Benefits

Powerful engine

The RTX250 features a 25-hp (18.6-kW) electronic fuel-injected (EFI) engine that starts reliably in a wide variety of temperatures and altitudes.

Enhanced mobility

Rubber tracks offer outstanding traction in soft, rocky or muddy conditions with minimal ground disturbance.

The VZ steering system eliminates the need for additional levers, helping to reduce operator training time.

Even when facing varied terrain and unfavorable ground conditions, the RTX250’s high-mount track design offers outstanding traction and minimizes ground disturbance.

Practical versatility

Engine offers excellent startability in a wide variety of temperatures and altitudes, while issues normally associated with conventional carbureted engines — such as flooding — are eliminated.

The slender profile, with a 35 in (88.9 cm) width, allows the unit to move through narrow yard gates.

Smart safety

Promotes on-the-job safety with an operator presence system that disengages the trencher and ground drives if the operator leaves the controls, in addition to a trenching cleat that restricts backward motion.

RTX250 Pedestrian Trencher Specs & Compare

GENERAL DIMENSIONS AND WEIGHTS
Length79 in
Width34.5 in
Height48 in
Weight1550 lbs
ENGINE - OPTION ONE
Make and ModelKohler Command PRO ECH740
Fuel TypeGas
Gross Horsepower25 hp
Horsepower at Maximum RPM (Gross)25 hp
Displacement45 cu-in
Number of Cylinders2
Cooling MediumForced air
Maximum Operating Angle (Fore/Aft)*25 deg
Maximum Operating Angle (Left/Right)*25 deg
AspirationNatural
HYDRAULIC SYSTEM
Attachment Pump Relief Pressure (Trencher/Forward)2975 psi
Ground Drive Pump Relief Pressure Forward/Reverse2900 psi
Ground Drive Pump gpm at Maximum Engine RPM11.4 gpm
Hydraulic Supply Filter Rating10 micron nominal
Attachment Pump gpm at Maximum Engine RPM16.1 gpm
Hdraulic Return Filter Rating10 micron nominal
CAPACITIES
Fuel Tank6.8 tank
Hydraulic Tank8 gal
Hydraulic System8.5 gal
Engine Oil.5 gal
GROUND DRIVE
Ground Drive TypeHydrostatic
Maximum Forward Transport Speed at Full Throttle3.5 mph
Maximum Reverse Transport Speed at Full Throttle2.5 mph
