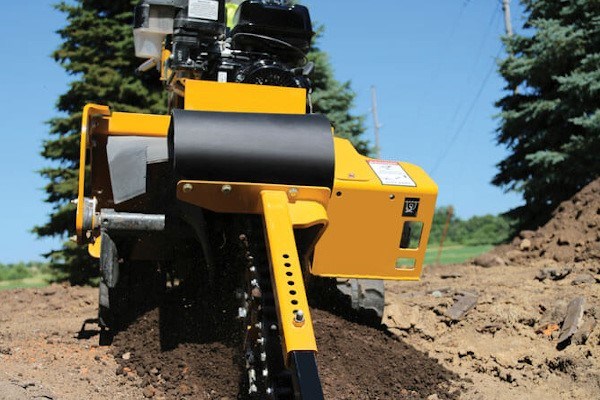

RTX130 Pedestrian Trencher Features & Benefits

Effortless steering

Steers effortlessly with the VZ steering system that requires minimal effort to the handlebars.

Compact Design

Elimination of the tail wheel on the track unit provides trenching depth control in uneven ground conditions and convenience to move through tight spaces.

Fits into narrow areas with a footprint that measures only 35 in (89 cm) wide.

Powerful performance

The RTX130 is equipped with a 13-hp (9.7-kW) Honda engine for optimal power on your jobsite.

Smart safety

Promotes on-the-job safety with an operator presence system that disengages the trencher and ground drives if the operator leaves the controls, in addition to a trenching cleat that restricts backward motion.

RTX130 Pedestrian Trencher Specs & Compare

GENERAL DIMENSIONS AND WEIGHTS
Length (Tractor with Tires)83 in
Width (Over Rubber Tracks)35 in
Width (Over Rubber Tires)35 in
Height46 in
Weight (Tractor with Tires)880 lbs
Wheel Base From Centerline of Axles33.2 in
Tread Width with Rubber Tires (Centerline to Centerline)8.5 in
ENGINE - OPTION ONE
Make and ModelHonda GX390
Fuel TypeGasoline
Gross Horsepower13 hp
Horsepower at Maximum RPM (Gross)13 hp
Displacement23.7 cu-in
Number of Cylinders1
Cooling MediumForced Air
Maximum Operating Angle (Fore/Aft)*20 deg
Maximum Operating Angle (Left/Right)*20 deg
HYDRAULIC SYSTEM
Attachment Pump Relief Pressure (Trencher/Forward)2500 psi
Ground Drive Pump Relief Pressure Forward/Reverse2400 psi
Ground Drive Pump gpm at Maximum Engine RPM5.4 gpm
Hydraulic Supply Filter Rating100 mesh strainer
Attachment Pump gpm at Maximum Engine RPM8 gpm
Hydraulic Return Filter Rating3 micron
CAPACITIES
Fuel Tank1.6 gal
Hydraulic Tank10.8 gal
Hydraulic System11.3 gal
Engine Oil.3 gal
GROUND DRIVE
Ground Drive TypeHydrostatic
Clutch Typenone
Maximum Forward Transport Speed at Full Throttle3.1 mph
Maximum Reverse Transport Speed at Full Throttle1 mph
