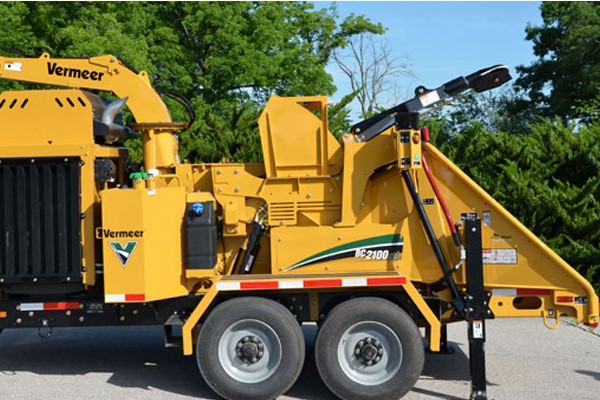

Vermeer BC2100XL Tier 4 Final Brush Chipper
- Designed to tackle large-tough jobsite conditions
- Warranty backed by confidence
- Intelligent chipping for increased productivity
Shopping Tools
BC2100XL Tier 4 Final Brush Chipper Features & Benefits
Powerful and control
A 275-hp (202.3-kW) Cummins® diesel engine provides all the power needed for tough, demanding jobs.
Offset horizontal feed rollers, coupled with a robust pulling force, facilitate ease of material feeding and reduce the need for manual control of the upper feed roller when chipping large-diameter material.
An optional winch can be added to aid in transporting large material to the infeed table, helping reduce manual material handling.
The optional Tree Commander™ remote control enhances jobsite productivity by enabling remote operation of brush chipper functions and can be conveniently attached to the operator’s belt or mounted on a Vermeer mini skid steer.
Intelligent feeding
The EcoIdle™ engine control system reduces engine speed to a preset lower rpm after one to five minutes of inactivity, saving fuel and reducing jobsite noise.
With a 21-in (53.3-cm) capacity and one of the largest infeed tables in its class, the BC2100XL allows for smooth feeding of large material.
The exclusive SmartCrush system provides increased down pressure on the material being fed and assists when feeding forked or branchy material.
SmartFeed, a patented feed-sensing control system, boosts operator productivity and reduces engine strain by monitoring engine rpm and controlling feed rollers.
Safety
The patented bottom feed stop bar is strategically positioned so the operator can strike it to shut off the feed mechanism.
Your access to MORE: VermeerOne™
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real time data to make smarter decisions, and help maximize productivity and profitability.
BC2100XL Tier 4 Final Brush Chipper Specs & Compare
| GENERAL DIMENSIONS AND WEIGHTS | |
| Length - Feed Table Up, Tongue In | 235 in |
| Length - Table Down, Tongue Extended | 259 in |
| Width | 95.8 in |
| Height | 116.5 in |
| Weight - Engine Option One | 16200 lbs |
| Tongue Weight - Engine Option One | 2950 lbs |
| Weight With Winch (Additional) | 1380 lbs |
| ENGINE - OPTION ONE | |
| Make and Model | Cummins QSB 6.7 L Tier 4 Final |
| Number of Cylinders | 6 |
| Gross Horsepower (Maximum) | 275 hp |
| Torque (Max) | 730 ft-lb |
| Fuel Tank Capacity | 65 gal |
| Max Fuel Consumption | 14 gph |
| Fuel Type | Ultra-low sulfur diesel |
| Air Cleaner | DF900P Series Fleetguard Direct Flow with integral precleaner and secondary element |
| Oil Filter | Spin-on |
| Recommended Oil | API CJ-4 |
| Oil Volume with Filter | 17.6 qt |
| Maximum Angle of Continous Operation | 30 deg |
| Cooling Medium | Liquid |
| Coolant Capacity (Engine and Radiator) | 8.8 gal |
| Alternator | 130 amp Delco-Remy 245I |
| Fan | 26" (66 cm) suction |
| Clutch Drive Engagement | Clutchless PTO |
| FEED SYSTEM | |
| Feed Roller Orientation | Horizontal |
| Number of Feed Rollers | 2 |
| Feed Roller Clamp Load | 3500 lbs |
| Feed Roller Clamp Type | Hydraulic |
| Feed Roller Minimum Distance to Drum | 10 in |
| Feed Roller Dimension | 19 " (48.3 cm) |
| Weight of Feed Roller | 972 lbs |
| Motor Displacement | 4.9 CID |
| Motor Manufacturer | Eaton |
| Feed Speed | 100 ft/min |
| Infeed Table Width | 72 in |
| Infeed Table Length | 60.5 in |
| Infeed Hopper Height | 38.5 in |
| Infeed Throat Capacity | 40 in x 24 in |
| Distance from Feed Table to Ground | 30.8 in |
| Infeed Table Material Thickness | .4 in |
| SAFETY SYSTEM | |
| Bottom Feed Stop Bar | Standard |
| Reset Method | Green-hold-to-run button |
| Four Position Feed Control Bar | Standard |
| Positions | 4: E-stop, Forward, Neutral, and Reverse |
| Green Hold to Run Button | Standard |
| DRUM/DISC CUTTING SYSTEM | |
| Material Capacity | 21 in |
| Width | .5 in |
| Thickness | 28 in |
| Diameter | 36 in |
| Speed | 1084 rpm |
| Weight With Shaft | 1500 lbs |
| Safety Lock - Number of Positions | 4 |
| Number of Knives | 4 |
| Knife Thickness | .6 in |
| Material | A8 chipper steel |
| Useable Edges | 2 |
| Knife Size | 5 " x 14 " (12.7 cm x 35.6 cm) |
| Number of Bolts/Knife | 6 |
| Replaceable Threaded Knife Block | Yes |
| Number of Paddles | 4 |
| Fixture Method | Weld-on |
| Air Flow | 3600 cfm |
| Bedknife Size | 3 " x 27.5 " (7.6 cm x 69.9 cm) |
| Bedknife - Number of Useable Edges | 4 |
| CUTTER DRIVE COMPONENTS - ENGINE OPTION ONE | |
| Number of Bearings | 2 |
| Bore | 3.4 in |
| Type | Spherical roller |
| Manufacturer | Dodge |
| Dynamic Capacity | 65500 lbs |
| Belt Idler/Tensioner | Torsion arm spring-loaded |
| Belt Type | 5V chipper poly type |
| DISCHARGE SYSTEM | |
| Chute Height | 116 in |
| Bottom Thickness | .1 in |
| Top Thickness | .2 in |
| Side Wall Thickness | .1 in |
| Deflector Thickness | .1 in |
| Chute Rotation Angle | 270 deg |
| Rotation Type | Hydraulic |
| HYDRAULIC SYSTEM | |
| Tank capacity | 24 gal |
| Recommended Oil Type | Vermeer Hy-Power 68 |
| System Type | Open center |
| Filtration Method | 10 micron return, 100 mesh suction |
| Pump Flow at Maximum RPM | 13 gpm |
| System relief pressure | 2750 psi |
| Auto Reverse PSI | 2550 psi |
| Directional Control | Yes |
| Oil Cooler | Yes |
| ELECTRICAL SYSTEM | |
| System Voltage | 12 |
| Battery | 2 - 950 CCA |
| Standard Gauges | Tachometer, hour meter, coolant temperature, engine oil pressure, battery voltage, engine fault code, engine shutdown light and engine fault warning light |
| Switches | Engine speed, SmartFeed droop (non-remote only), EcoIdle™ engine control system |
| Controller | C148 |
| Shutdown System | Coolant temperature, intake manifold temperature, oil pressure |
| Radio Remote Control | Engine speed, discharge chute, forward, stop, reverse feed, Smart Crush down pressure level, SmartFeed droop setting and engine stop. |
| CHASSIS | |
| Frame Description | 2.5" x 8.75" (6.4 cm x 22.2 cm) C-channel |
| Toolbox Description | Lockable |
| Tongue Description | 2.5" x 4.5" x .38" (6.4 cm x 11.4 cm x 1 cm) |
| Tongue Extension | Two position 12" extension (30.5 cm) |
| Hitch Type | 3 " (7.6 cm) pintle |
| Fender Description | Bolt-on |
| Axle/Suspension | Tandem torsion 8000 lb (3628.7 kg) capacity |
| Type - Option One | Tandem torsion |
| Manufacturer - Option One | Dexter |
| Capacity - Option One | 235/75R17.5 load range J |
| Tires - Option One | 17.5" x 6.75" B.C. of 8 on 6.5" (16.5 cm) |
| Brake Type | Electric |
| Trailer Light Type | LED |
| OTHER OPTIONS | |
| Special Paint | Optional |
| Extended Warranty | Optional |
| Preventive Maintenance | Optional |
| Adjustable Height Discharge Chute | Optional |
| Remote Control | Optional |
| Hydraulic Outriggers | Optional |
