Robust performance
A fixed infeed table design and oversized infeed opening gives the operator optimal performance and durability when mechanically feeding.
The AX19 delivers maximum pull-in force, making feeding of large-diameter logs and branchy limbs easier.
The AX19 is built to handle large land-clearing operations and other tough jobs that require high feed capacity and throughput.
Intelligent feeding
The EcoIdle™ engine control system reduces engine speed to a preset lower rpm after one to five minutes of inactivity, saving fuel and reducing jobsite noise.
SmartCrush minimizes down pressure until the feed roller climbs onto the material, then increases pressure to push it to the cutter drum, allowing the operator to focus on the next load.
Dual offset horizontal feed rollers lessen the need for the operator to manually control the machine when feeding large-diameter logs.
SmartFeed, a patented feed-sensing control system, boosts operator productivity and reduces engine strain by monitoring engine rpm and controlling feed rollers.
Jobsite efficiency
The winch operates with or without the easily removable boom. Removing the boom lets operators feed the chipper mechanically without interference.

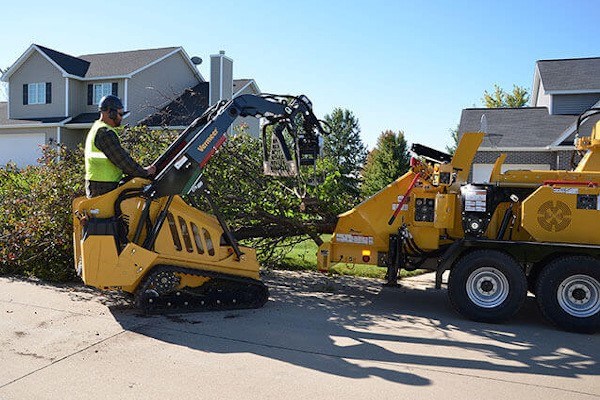

The optional full-function remote allows machine operation from a loader to maximize productivity and minimize crew size.
Safety
The patented bottom feed stop bar is strategically positioned so the operator can strike it to shut off the feed mechanism.
Your access to MORE: VermeerOne™
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real time data to make smarter decisions, and help maximize productivity and profitability.
GENERAL DIMENSIONS AND WEIGHTS | |
Width | 79 in |
Height | 108 in |
Weight (without winch and hydraulic jack) | 11000 lbs |
Weight (with winch, hydraulic jack and hydraulic chute) | 11400 lbs |
Weight with outriggers (additional) | 170 lbs |
ENGINE - OPTION ONE | |
Make and Model | John Deere 4045HFC09 |
Number of Cylinders | 4 |
Gross Horsepower (Maximum) | 173 hp |
Torque (Max) | 492 ft-lb |
Fuel Tank Capacity | 40 gal |
Max Fuel Consumption | 6.8 gph |
Fuel Type | Diesel |
Air Cleaner | 2 Stage Dry |
Oil Filter | Spin-on |
Recommended Oil | ACEA E-7 & E-6 or API CI-4 |
Oil Volume with Filter | 15.5 qt |
Maximum Angle of Continuous Operation | 30 deg |
Cooling Medium | Liquid |
Coolant Capacity (Engine and Radiator) | 32 gal |
Alternator | 90 |
Fan | 26" Suction |
Clutch Type | 12" Spring Loaded |
Clutch Drive Engagement | Manual Lever |
FEED SYSTEM | |
Feed Roller Orientation | Horizontal |
Number of Feed Rollers | 2 |
Feed Roller Clamp Load | 4000 lbs |
Feed Roller Clamp Type | Hydraulic |
Feed Roller Minimum Distance to Drum | 5 in |
Feed Roller Dimension | 19" dia x 28.25 length |
Number of Knives | 12 |
Weight of Feed Roller | 350 lbs |
Feed Roller Dimension (Two) | 11" dia x 28.25 length |
Number of Knives (2) | 10 |
Weight of Feed Roller (Option Two) | 186 lbs |
Number of Feed Roller Motors | 4 |
Motor Displacement | 28.4 |
Motor Manufacturer | White RE470 |
Feed Speed | 119 ft/min |
Infeed Table Width | 71 in |
Infeed Table Length | 60.5 in |
Infeed Hopper Height | 35 in |
Infeed Throat Capacity | 28.875" wide x 24" tall |
Distance from Feed Table to Ground | 30.3 in |
Infeed Table Material Thickness | .3 in |
SAFETY SYSTEM | |
Bottom Feed Stop Bar | Standard |
Bottom Feed Stop Bar Diameter | 2 in |
Bottom Feed Stop Bar Material Thickness | 11 GA |
Actuation Force (BFSB) | 34 lbs |
Normal Sensitivity | 22 deg |
Reduced Sensitivity | 12 deg |
Reset Method | Green Hold to Run Button |
Four Position Feed Control Bar | Standard |
Diameter | 1.5 in |
Material Thickness | 11 in |
Positions | 4: E-Stop, Forward, Neutral, Reverse |
Actuation Force | 34 lbs |
Green Hold to Run Button | Standard |
DRUM/DISC CUTTING SYSTEM | |
Material Capacity | 19 in |
Width | .5 in |
Thickness | 26.1 in |
Diameter | 36 in |
Speed | 1100 |
Weight With Shaft | 1160 lbs |
Safety Lock - Number of Positions | 4 |
Number of Knives | 4 |
Knife Thickness | .6 in |
Material | A8 Modified Chipper Steel |
Useable Edges | 2 |
Knife Size | 0.625 x 5 x 10 |
Number of Bolts/Knife | 5 |
Replaceable Threaded Knife Block | Yes |
Number of Paddles | 12 |
Fixture Method | Weld-on |
Bedknife Size | 3" x 20.25" |
Bedknife Thickness | 1.3 in |
Bedknife Material | 1018 CD |
Bedknife - Number of Useable Edges | 4 |
CUTTER DRIVE COMPONENTS - ENGINE OPTION ONE | |
Number of Bearings | 2 |
Bore | 2.5 in |
Type | Spherical Roller |
Manufacturer | Linkbelt |
Dynamic Capacity | 31400 lbs |
Static Capacity | 53500 lbs |
Belt Idler/Tensioner | Spring loaded |
Belt Type | 5V |
DISCHARGE SYSTEM | |
Chute Height | 108 in |
Bottom Thickness | .1 in |
Top Thickness | .2 in |
Side Wall Thickness | .1 in |
Deflector Thickness | .1 in |
Chute Rotation Angle | 270 deg |
Rotation Type | Worm gear with rotational lock |
Rotational Lock | Self lock |
HYDRAULIC SYSTEM | |
Tank capacity | 20 gal |
Recommended Oil Type | HY POWER 68 |
System Type | Open Center |
Filtration Method | 6 micron return, 100 micron suction |
Pump Flow at Maximum RPM | 14.8 gpm |
System relief pressure | 3000 psi |
Auto Reverse PS | I2800 psi |
Flow Control | No |
Directional Control | Yes |
Oil Cooler | No |
ELECTRICAL SYSTEM | |
System Voltage | 12 |
Battery | 950 CCA |
Standard Gauges | Digital Display with tachometer, hourmeter, oil pressure, water temp, battery voltage and engine error codes. Fuel and DEF gauges |
Switches | Control Panel: Ignition, throttle, Smartfeed, exhaust regeneration, and ECOIdle. Rear: Lower feed bar sensitivity, Chute controls, Manual Crush |
Controller | Vermeer ACS: C248 |
Display | MFD |
Shutdown System | High temp, low pressure, Tier 4 emissions related |
Radio Remote Control | Optional |
CHASSIS | |
Frame Description | 7.5" Z-Channel x 0.25" Thick |
Toolbox Description | Standard |
Tongue Description | 5" x 3" x 0.375" |
Tongue Extension | Extendable 12" |
Hitch Type | Pintle |
Fender Description | Bolt-on |
Axle/Suspension | Tandem Torsion 7000 lb capacity |
Type - Option One | TandemTorsion |
Manufacturer - Option One | Dexter |
Capacity - Option One | 14,000 (Tandem 7,000 lbs) |
Tires - Option One | LT285/75R16 Load Range E |
Wheels - Option One | 16" |
Brake Type | Electric |
Trailer Light Type | LED |
WINCH OPTION | |
Winch Relief System | 2300 psi |
Winch Boom Structure | 0.25 GR50 detachable |
Winch Input Speed | 87 rpm |
Winch Controls | Forward, Reverse, Free Spool |
Winch Rope | 9/16" |
Rope Length | 150 ft |
Rope Line Pull | 3250 lbs |
OTHER OPTIONS | |
Special Paint | Optional |
Extended Warranty | Optional |
Preventive Maintenance | Optional |
Adjustable Height Discharge Chute | Optional |
Remote Control | (Basic or optional Deluxe) |
Hydraulic Outriggers | Optional (Manual only) |
Hydraulic Chute Controls | Standard |
