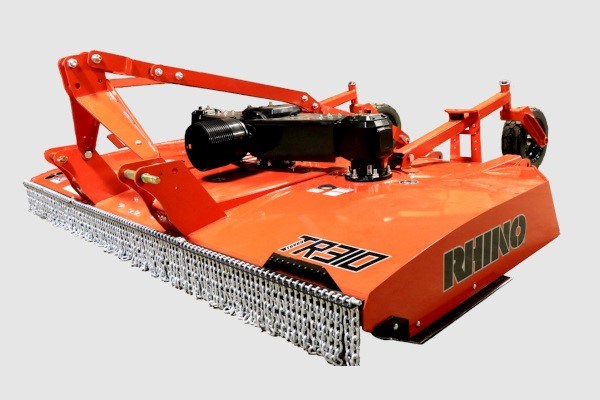

Rhino TR310

Innovative new suspension and driveline designs.

The robust TR Series is the latest addition to RhinoAg’s already-impressive lineup of multi-spindle cutters. These rugged cutters offer superior cut quality, easier maintenance, and longer life expectancy to give you the years of dependable service you’ve come to expect from RhinoAg.

The 300 pull types feature a rigid-deck suspension system that creates a more even cut and offers longer part life due to reduced impact load on critical components. As heavier units, the TR308 and TR310 need this independent axle suspension to help reduce the hard, continuous impacts that cutters see out in the field daily.

Get a Quote Value Your Trade Request Brochure
Send to a Friend
Payment Calculator

Get information on the TR310

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Title

Name*

Email*

Phone

Comments*

Request Brochure

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Item*

Name*

Email*

Phone*

Address*

City*

Postal Code*

Send your friend information on the TR310

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Requesting Trade In on TR310

Contact Information

Equipment Interested In

Trade Information

Request A Demo

Fields with asterisks* are required.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools

Contact Salesman

Request Demo

Apply for Financing

Features
Specifications

TR310 Features & Benefits

Clean, modernized deck design for easy cleaning and maintenance
CV drivelines on all pull-type units
CAT 2 & 3 hitch compatible
Slip clutch driveline protection
EZ cutting boxes on every unit; EZ160 divider box and EZ160 cutting box on the TR310

TR310 Specs & Compare

Model	TR310
Cutting Width	10' (120'')
Overall Width	127 1/4''
Overall Length	107 1/4'' - Lift 155" - Pull
Cutting Height	1'' - 14''
Height Adjustment	Cylinder - Pull
Jack Stand	Std. - Pull
Hitch	CAT 2/ CAT 3 Std. CAT 2/ CAT 3 Q.H., Pull
Blade Carrier	Infinity - Steel
Blades	1/2'' x 4'' Parallel Updraft
Blade Over-Lap	4''
HP Required	80 HP - Lift 55 HP - Pull
Gearbox Rating* - Center	210 HP
Gearbox Rating* - Outboard	210 HP
Gearbox Oil (85W-140)	85W - 140 Factory Filled Lucas Oil
Output Shaft Diameter	2 3/8''
Blade Tip Speed - 540 RPM	16,215 FPM
Blade Tip Speed - 1000 RPM	16,238 FPM
Cutting Capacity (Max)	3''
Drive-line Size	CAT 4 - Lift CAT 5 - Pull
Drive-line Protection	Slip Clutch
Deck Thickness	10 Ga
Side Skirt	1/4''
Tires & Wheels	Laminated or Rhino Trax
Safety Tow Chain	Single or Double Chain Guards
Tongue Weight	1,280 lbs
Weight	2,670 lbs (Lift), 3,100 lbs (Pull)
* Gearbox power ratings based on actual field performance
