No brush is safe when you’re running the Icon series!

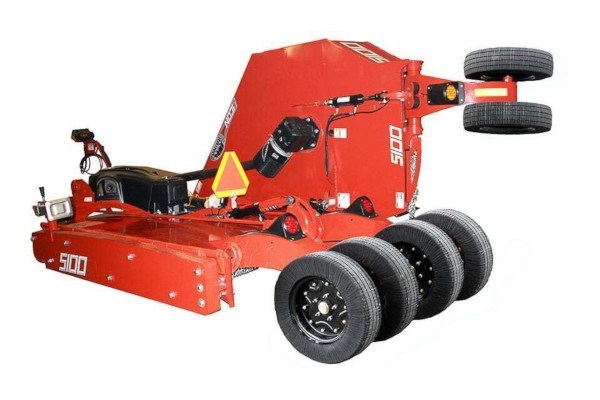

The 5000 Icon Rotary Cutters are bigger machines that demand bigger tractors with a minimum of 70 horsepower. All that power allows the Icon Cutters to cut brush up to 5” in diameter. With a 250 horsepower gearbox and a CAT CV 6 driveline, the 5000 series are not to be trifled with! With slip clutch protection and strong and sturdy chain guards, the engineering keeps both you and your cutter safe on the job!

  • Get a Quote Value Your Trade Request Brochure
  • Send to a Friend
  • Payment Calculator

    • Get information on the 5100

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the 5100

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on 5100

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

5100 Features & Benefits

  • 70 Horsepower Requirement
  • 5” Cutting Diameter
  • 250 Horsepower Tested Gearbox
  • CAT CV 6 Driveline

5100 Specs & Compare

Model5100
Cutting Width126''
Transport Width88''
Transport Height *80''
Overall Width133''
Overall Length187''
Cutting Height2''-14''
Height AdjustmentHydraulic Cylinder
Jack StandStandard
HitchPull
Blade CarrierInfinity
Blades1/2'' x 5'' Parallel Lift
Blade Overlap6''
PTO Horsepower Required70 HP
Gearbox Rating (based on field performance) - Divider **250 HP
Gearbox Rating (based on field performance) - Center & Wing **225 HP
Gearbox Oil (85W-140)Factory Filled
Output Shaft Diameter3''
Blade Tip Speed - Center 540 RPM13,436 FPM
Blade Tip Speed - Center 1000 RPM13,704 FPM
Blade Tip Speed - Wing 540 RPM13,169 FPM
Blade Tip Speed - Wing 1000 RPM13,367 FPM
Cutting Capacity (Diameter)5''
Driveline Size - MainCat 6 CV
Driveline Size - WingCat 6
Driveline ProtectionSlip Clutch
Deck Thickness1/4''
Side Skirt1/4''
Tires & WheelsSee Options
Wing Lift HydraulicsStandard
Wing Flex (Degrees)90 degrees Up/25 degrees Down
Safety Tow ChainStandard
LED Light KitStandard
Safety DeflectorsSee Options

* Dependent on tire size
** Gearbox Ratings Based on Field Performance
