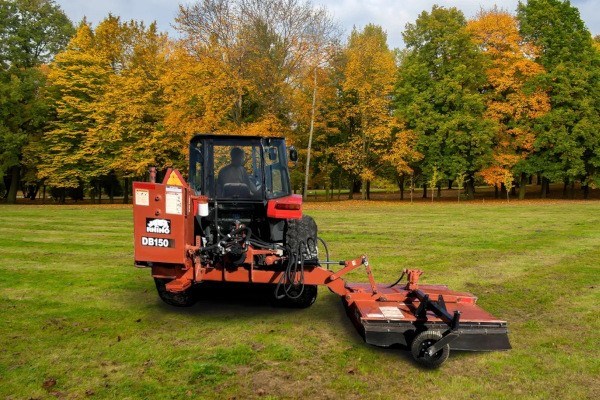

Rhino DB150
The preferred choice of experienced operators for mowing hard-to-reach areas
Over 30 years of hydraulic mower design experience has made the Rhino® DB150 the preferred choice of experienced operators for the mowing of pond banks, levees, drainage ditches, and hard-to-reach areas.
The DB150 can extend to a maximum of 158" from centerline, allowing the 60 inch rotary head to cut areas that are difficult or impossible to reach with ordinary mowers. Being hydraulically driven, maintenance is reduced. The DB150 utilizes a 60 gallon max hydraulic system, allowing cooler operation. The reservoir serves as a stationary counterweight on the mainframe, eliminating the traffic hazard of a movable counterweight. To ensure a clean cut, the DB150 features updraft blades and a blade tip speed of 20,028 FPM.
Shopping Tools
DB150 Features & Benefits
- CAT II-III Quick Hitch
- Hydraulic Breakaway
- 60 Gallon Oil Reservoir
- 190 Degrees of Head Movement
- 2” Diameter Cut Capacity
- 9 ½ Foot Transport Width
DB150 Specs & Compare
| Model | DB150 |
| Cutting Width | 60'' |
| Transport Width | 119'' |
| Overall Width (Head) | 65 1/4'' |
| Overall Length (Head) | 71 3/8'' |
| Cutting Height (Min) | 1'' |
| Hitch | CAT 2 & 3 QH Compatible w/ Adapter Kit |
| Blade Carrier | Pan |
| Blades | 1/2'' x 4'' Updraft |
| Blade Rotation | Clockwise |
| HP Required | 60, with adequate front wt. |
| Tractor PTO Speed | 540 RPM |
| Oil Reservoir Capacity | 55 Gallons, factory filled |
| Max System Pressure | 3,000 PSI |
| Blade Tip Speed | 16,870 FPM |
| Horizontal Reach (Max.) | 158'' from center of tractor |
| Extension Cylinder Stroke | 30'' |
| Cutting Capacity (Max.) | 1'' |
| Driveline Size | CAT 4 |
| Overload Protection | Relief Valve |
| Deck Thickness | 10 Ga |
| Side Skirt | 10 Ga x 9 1/4'' |
| Range of Head Movement (Degrees) | 85 Up / 90 Down |
| Hydraulic Pump Capacity | 18.32 GPM |
| Skid Shoes | Replaceable |
| Safety Deflectors | Rubber Deflectors or Chain Guards |
| Weight (Approx.) | 2,140 lbs. with oil |
