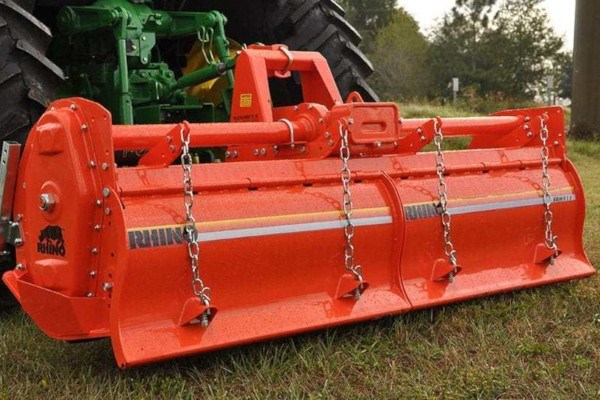

Rhino SRM81V
Perfect for heavy-duty use from sod farms to vineyards.
Rhino rotary tillers offer state-of-the-art design and superior features for unparalleled quality and performance in a number of applications.
The rugged SRM series tillers are ideal for heavy-duty commercial contractor or agricultural uses including sod farms, vegetable farms, and vineyards. Built in 81" and 91" widths, Rhino SRM tillers are available with a single or variable speed gearbox for varying applications. SRM tillers are rated for tractors from 40 to 70 HP and feature a Cat 4 driveline with slip clutch protection and a massive gear rotor drive system running in an enclosed oil bath for dependability in extreme conditions.
Shopping Tools
SRM81V Features & Benefits
- Rotor Speeds of 185, 208, 235, or 266 RPM
- 4-Speed Gearbox
- CAT 4 Driveline
- Slip-Clutch Protection
- Gear Driven
- Quick-Hitch Compatible
SRM81V Specs & Compare
| Model | SRM81V |
| Tilling Width | 81" |
| Overall Width | 87" |
| Tilling Depth (Max.) | 8" |
| Support Stand | Std |
| Hitch | CAT 1-2, CAT 1 QH |
| Knife Type | C |
| Number of Knives | 48 |
| Number of Flanges | 8 |
| Recommended PTO HP (Min/Max) | 40 / 70 |
| Rotor Speed (RPM) (at 540 RPM) | 185/208/235/266 ** |
| Driveline Size | Cat 4 |
| Driveline Protection | Slip Clutch |
| Housing Thickness | 4mm |
| End Plate Thickness | 8mm |
| Rotor Drive Type | Gear |
| Weight (Approx.) (lbs.) | 981 Lbs. |
** 4-Speed Gearbox
