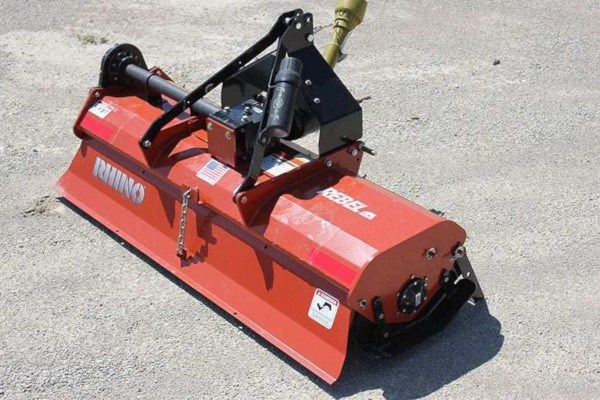

Rhino REB84R
Unparalleled quality and performance
Rhino rotary tillers offer state-of-the-art design and superior features for unparalleled quality and performance in a number of applications.
Rhino’s Rebel Series tillers are built tough. Every size in this line is available in both forward and reverse tillage. Each rotor comes equipped with a hardened, “L” shaped blade. With hitches continuously welded to the mainframe, as well as slip-clutch protection on the drive train, repairs and downtime are sure to be rare!
Shopping Tools
REB84R Features & Benefits
- Six Hardened "L" Blades per Rotor Flange
- Cast Iron Gearbox Housing
- Front to Rear Hitch Points are Continuously Welded to the Mainframe
- Metal Debris Deflector (Reverse Model Only)
- CAT 1 Standard and QH (5 & 6 ft. Model Only)
- CAT 1 & 2 Standard and QH (7 ft. Model)
- Slip Clutch Driveline Protection Comes Standard
- 1/2" Steel End Plates
REB84R Specs & Compare
| Model | REB84R |
| Tilling Width | 82.5" |
| Overall Width | 90" |
| Tilling Depth (Max.)* | 7-1/2" |
| Hitch - Standard | CAT 1 & 2 |
| Hitch - Quick Hitch | CAT 1 & 2 QH |
| Knife Type | "L" |
| Number of Knives | 66 |
| Number of Flanges | 11 |
| Recommended PTO HP (Min/Max) | 45 / 65 HP |
| Rotor Speed | 211 RPM |
| Driveline Size | CAT 4 |
| Driveline Protection | Slip Clutch |
| Gearbox Housing | Cast |
| End Plate Thickness | 1/2" |
| Rotor/ Blade Rotation Dia | 17" |
| Rotor Shaft Dia | 3" |
| Rotor Drive Type | Gear Driven |
| Tine Rotation | Reverse |
| Weight (Approx.) | 831 lbs. |
