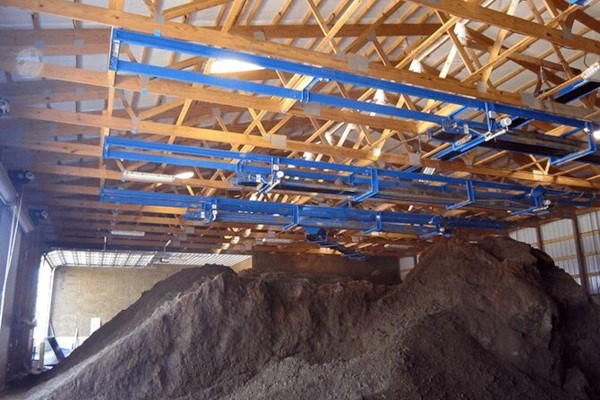

Track system design automates material loading

  • Automate loading of material into bins, containers, bays, truck boxes, semi-trailers, and more!
  • Adaptable to 12", 16", and 24" belt widths
  • Reversing drive allows conveyor to continuously move back and forth
  • One-way or two-way conveying, adjustable elbow or straight-line conveying and plow-off.
  • Choice of track packages (up to 120 ft/36.6 m)
  • Get a Quote Value Your Trade Request Brochure
  • Send to a Friend
  • Payment Calculator

    • Get information on the Distribution Conveyor System

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the Distribution Conveyor System

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on Distribution Conveyor System

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

Distribution Conveyor System Features & Benefits

Sorry, currently there are no features but check back with us later.

Distribution Conveyor System Specs & Compare

Distribution Conveyor System16052405
Overall Lengths
Recommended max length of track is 120′ (36.58m)		10′ - 60′ (3.05 - 18.29m)
10′ (3.05m) increments		10′ - 60′ (3.05 - 18.29m)
10′ (3.05m) increments
Belt Width16″ (406mm)24″ (610mm)
Belt Speed3,700 ft/min (112.8m/min)
260 ft/min(79.2m/min)
130 ft/min (39.6m/min)
65 ft/min (19.8m/min)		3,700 ft/min (112.8m/min)
260 ft/min(79.2m/min)
130 ft/min (39.6m/min)
65 ft/min (19.8m/min)
Drive Pulley (diameter)
Crowned, steel, rubber lagged		5″ (127mm)5″ (127mm)
Tail Pulley (diameter)
Finned, steel		5″ (127mm)5″ (127mm)
Max Load Capacity<90 ft3/min (2.6m3/min)
1600 lb/min (725 kg/min)		<209 ft3/min (5.9m3/min)
3700 lb/min (1678 kg/min)
