Schedule to Clean Alleys Automatically

  • Sentinel Control Panel learning system constantly adjusts to weather, bedding, and manure changes while recalculating the amount of torque needed to pull to the drop point
  • Use on concrete alleys or rubber flooring
  • Drive unit design includes technology for precise scraper automation
  • Energy-efficient drive system
  • Get a Quote Value Your Trade Request Brochure
  • Send to a Friend
  • Payment Calculator

    • Get information on the IntelliCable® Alley Scrapers

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the IntelliCable® Alley Scrapers

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on IntelliCable® Alley Scrapers

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

IntelliCable® Alley Scrapers Features & Benefits

Standard Features & Options

SENSOR CONTROLS
Sensor disc and proximity sensors provide the control panel with necessary information to keep track of scraper’s position and direction.

SENTINEL CONTROL PANEL
Advanced learning system continuously adjusts to weather, bedding, and manure changes by recalculating the amount of energy required to clean on every cycle.

CABLE CHOICES
Size Options:
Galvanized Aircraft or Stainless Steel Cable:  3/8″, 7/16″, or 1/2″

Plastic Jacketed Galvanized Steel Cable: 3/8″.  This is a cow-friendly option that has superior wear resistance and provides longer service life than steel cable.

SELF-LOCKING RATCHET SYSTEM
The self-locking ratchet system allows easy tightening of cable.

GUARD DOORS
Guard doors provide safety for operators and protects drive unit components.  Opening the door activates a safety interlock that automatically shuts the unit down.

SCRAPERS
FOLDING V SCRAPER
Low-profile scraper wings and folding design allow easy passage for animals and equipment.  Cleans alleys 64″ – 174″ wide.

FOLDING ANGLED TIP-UP SCRAPER
Wings pivot to follow wall tightly for better cleaning; blades tip up and the wings pivot inward on reverse movement. Suitable for alleys with widths from 84″ – 192″ (2.1-4.9 m).

VERSA FOLDING V-SCRAPER
This versatile, low-profile scraper is available in: 6, 8, 10, 12, and 14 foot sizes.  Cleans 64″ – 174″ wide alleys with widths.  Choose from three economical, replaceable blade edges: AR400 steel, rubber, or urethane.

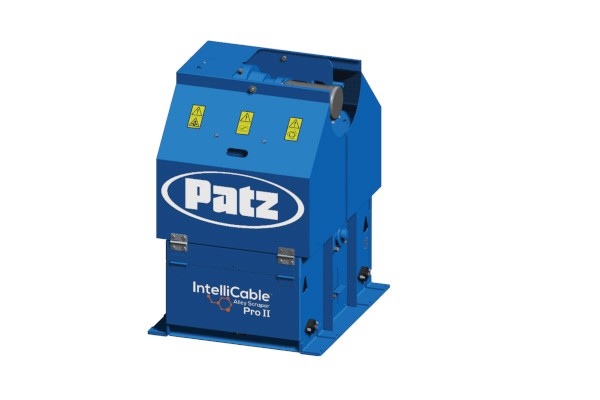

IntelliCable® Alley Scrapers Specs & Compare

IntelliCablePro IIPro III
Motor3/4 HP Electric3/4 HP Electric
Cable OptionsGalvanized or Stainless Steel:
3/8″, 7/16″, 1/2″
Plastic Jacket:
3/8″		Galvanized or Stainless Steel:
3/8″, 7/16″, 1/2″
Plastic Jacket:
3/8″
Scraped Alley Length (SAL), Maximum1/2″: 215′ (66m)
7/16″: 250′ (76m)
3/8″: 280′ (85m)		1/2″: 440′ (134m)
7/16″: 510′ (155m)
3/8″: 570′ (174m)
Total Circuit Length (TCL), Maximum1/2″: 850′ (259m)
7/16″: 1000′ (305m)
3/8″: 1100′ (335m)		1/2″: 1760′ (536m)
7/16″: 2040′ (622m)
3/8″:  2280′ (695m)
