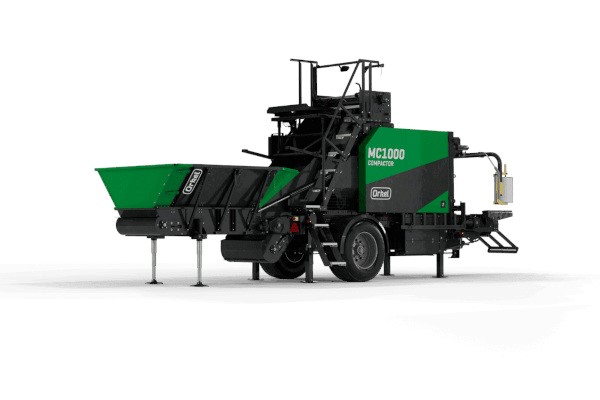

Orkel MC1000
A reliable compactor for customers with a limited need of capacity, ideal for baling maize silage, chopped grasses, forage mixes and more.
Like its smaller predecessor MC850, the Orkel MC1000 compactor is an optimal option where reduced capacity and lighter bales are preferred. The MC1000 model makes bales with a diameter of ø100×85 cm, ranging from 300 kg to 750 kg per bale depending on the type of material and its moisture content. Compared to the MC850 model, baling with the MC1000 model increases the bale volume by 40%, enabling an increased customizable bale weight to fit your production line.
In line with other Orkel models, the MC1000 compactor is currently compatible with over 25 different materials and is still expanding to new areas of use.
Shopping Tools
MC1000 Features & Benefits
Important Functions
Compatible with 25+ materials
The MC1000 compactor can bale a variety of bulk materials such as saw dust, chopped forage maize, chopped grasses and many more.
Widefilm
Choose between net or widefilm when baling with the MC1000 compactor. Widefilm adds extra protection to your material and simplifies the waste handling.
Convenient bale size
The bale size of the MC1000 compactor simplifies storage and handling due to the small size.
The High-Density Baling Process
Click the “+” icons for more information about each stage in the high-density baling process.
MC1000 Specs & Compare
| Technical Details | |
| Maximum capacity (bales/h) | 65 |
| Tractor power (min. PTO hp) | 90 |
| Chamber pressure (bar) | 240 |
| Bale size (cm) | ø100 x 85 |
| Volume (m³) | 0,67m³ |
| Bale weight (kg) | 300 - 750 |
| Feed hopper | F5 |
| Drawbar | Telescopic |
| Control system | Conventional |
| Weighing system | No |
| Transport length (mm) | 7860 |
| Transport height (mm) | 3390 |
| Transport width (mm) | 2860 |
| Operation length (mm) | 9170 |
| Operation height (mm) | 3860 |
| Operation width (mm) | 2860 |
| Net. weight (kg) | 7220 |
| Wrapper film width (mm) | 500 |
| Wide film width (mm) | 950 |
