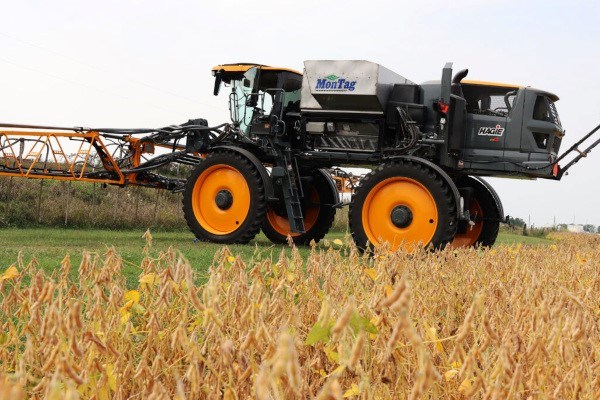

Montag 2212 (Hagie STS)
Fortifier GEN 2 – 2212
Shopping Tools
2212 (Hagie STS) Features & Benefits
When Montag decided to enter the Cover Crop market, we knew we had the core product to meet growers’ needs. With thousands of acres behind the Generation 2 delivery system, we had just the platform to build off of. Partnering with Hagie Manufacturing, we started from the ground up and designed a machine to fit the STS10, STS12, STS16, & STS20 platforms.
E1 STS is for model year 2014 – 2021
E2 STS is for model year 2022 – Current
For other Cover Crop application options, check out the GEN 2 – 2108 mounted on the Hagie 204.
2212 (Hagie STS) Specs & Compare
| Model | GEN 2 - 2212 |
| Boom Size | 90′ - 120′ |
| Hydraulic Capacity | 25 gpm (76 lpm) |
| Hydraulic Pressure | 2850 psi (197 bar) |
| Pressure | 3/4 inch |
| Return | 1 inch |
| Case Drain | 1/2 inch |
| Option | Benefit |
| Partnership Driven Design | Developed in close calibration between Hagie and Montag, this solution is truly an integrated product, that benefits from a close and open communication between industry leaders. |
| Operates on Standard Hagie Hydraulic System | There is no added cost to upgrade the hydraulic pump/system on the Hagie. This reduces hydraulic requirements, which allows for more options for grower. |
| Sealed Bin | Tank is sealed to maintain air pressure between bins for greater row to row accuracy. Simple yet ruggedly designed bin & lid seal which uses an automotive grade rubber gasket. |
| ISOBUS Rate Controller | Controller is specifically developed to operate Fortifier system with full functionality. Controller is compatible with John Deere and Raven task controllers. Ag Leader systems installed on the Hagie platform do not offer full functionality. Contact Montag representative to discuss compatibility if using a task controller other than John Deere or Raven. |
| ISOBUS Scale | The Fortifier comes standard with a scale system which measures weight on each bin individually. ISOBUS scales are integrated into the Montag ISOBUS rate controller for easy field run auto-calibration. |
| Fortifier Air Delivery System | Fortifier air delivery system is streamlined to improve aerodynamics and reduce horsepower requirements. Product is introduced into the air stream at the air chamber which requires less pressure to deliver product to the rows. |
| Standard Section Configurations | App based auto-section control capable w/ task controller integration. Sections are controlled with hydraulic motors and PWM valves for infield reliability.
|
| Bin Design | The Fortifier comes with two bins that increase field application options while maximizing capacity and staying within the transport window on the STS10 - STS20. |
| Bin Chaining | Bin chaining allows the user to put the same product in both bins and run a single product application. |
| Expand STS Usability | Once the boom kit is installed on the machine, one can simply remove the drops and switch tanks, hook up the liquid and hydraulic ports and be ready to go to the field. |
| Plastic Augers | Plastic augers provide consistent row-to-row metering and a large rate range (8lbs. - 50lbs. per bin) See rate capacity chart for more details. No need to change metering drive for full rate range. |
| 3 Year Warranty | Montag builds a high-quality product for high customer satisfaction and confidence. |
