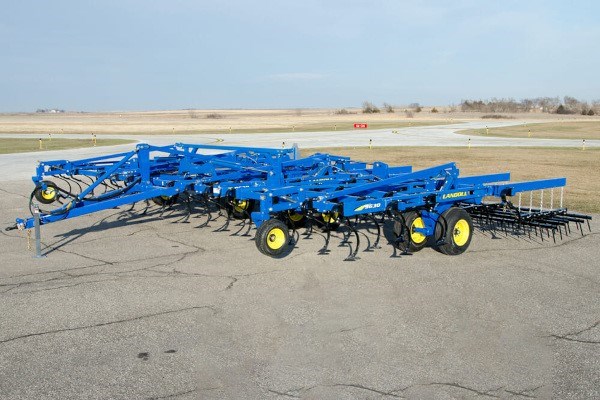

The new era in Field Cultivators begins with the 9600 Series from Landoll, the ultimate seedbed preparation tool built to handle today's demanding conditions.
  • Get a Quote Value Your Trade Request Brochure
  • Send to a Friend
  • Payment Calculator

    • Get information on the 9630-32

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the 9630-32

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on 9630-32

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

9630-32 Features & Benefits

  • Laser Cut, Robotically Welded Frame
  • 135” Frame Depth
  • 30” Minimum Between Shank Ranks
  • Self-Leveling Hitch
  • Cast Single Lip Hitch Cat. III or Cat. IV  (Model Dependent)
  • Outrigger Gauge Wheels on 28’ - 50’ Models
  • Shanks with 190 lbs. Point Load (Spring Clamp or Two Piece S-Tine)
  • 26 ½” Under Frame Clearance
  • 6” Shank Spacing
  • 8” Sweeps, 47 degree
  • Shanks Centered on Tires
  • Walking Tandems in All Locations
  • 11L x 15-12 Ply, 12.5L x 15-12 Ply, 12.5L x 15 Load Range F (Model Dependent)
  • Single Point Depth Control
  • Blue Powder Coat Paint
  • Safety Warning Lights

9630-32 Specs & Compare

Product Attributes 9630-32
Hitch Style Self-Leveling Hitch
Approximate Weight - Spring Shanks 11,720 lbs. (5,316 kg)
Approximate Weight - S-Tine Shanks 10,745 lbs. (4,874 kg)
Working Width 32 ft. 6 in. (9.9 m)
Transport Width 17 ft. 4 in. (5.3 m)
Transport Height 13 ft. 10 in. (4.2 m)
Number of Shanks 65
Number of Shanks per Section 19--27--19
Shank Type Spring Clamp Shanks or 2-Piece S-Tine Shanks
Shank Size 0.625 in. x 1.75 in. (15.9 x 44.5 mm) On Edge
Point Load 190 lbs. (86 kg)
Spring Shank Tower Laser Cut/Matchcut Components
Spring Shank Pivots Nitrotec Coated Inter-Locking Clamp Bushing
Spring Size 0.46875 in. (11.9 mm) Wire Diameter
Shank Spacing 6 in. (152 mm), Split the Middle Pattern
Spacing Between Shank Rows 30 in. (762 mm) Minimum
Shank Position Rear Shanks Centered on Tires
Sweeps 8 in. (203 mm) with 47 Degree Mount
Under Frame Clearance 26.5 in. (673 mm)
Fore-to-Aft Depth 135 in. (3.4 m)
Frame 3 in. x 4 in. x 0.25 in. (76.2 x 102 x 6.4 mm)
Frame Construction Laser Cut/Matchcut Components, Robotically Welded
Frame Type Truss Type with Wrapped Shank Tube Joints
Transport Lift Axles 4.5 in. (114 mm) Axle with Tower Lift System
Walking Tandems Standard with Maintenance Free Pivot Bushings
Tire Size - Main Frame (4) 320/70Rx15 Radial Tires
Wheel Hubs - Main Frame 8-Bolt
Spindles - Main Frame 2.25 in. (57.2 mm) Slip-In Spindles
Tire Size - Wing Frame (4) 280/70Rx15 Radial Tires
Wheel Hubs - Wing Frame 6-Bolt
Spindles - Wing Frame 2.25 in. (57.2 mm) Slip-In Spindles
Hitch Type Self-Leveling with Manual Adjustment
Hitch Category Cat. IV Ball Hitch
Machine Depth Control Single Point, Front Mounted
Hydraulics 10 in. (254 mm) Stroke Cylinders
Gauge Wheels (2) 20.5x8-8 Ply Standard
Safety Warning Lights & SMV Emblem Standard
Safety Chain Kit Standard
Powder Coat Paint, Blue Sapphire Standard
Rear Hitch with Hydraulic Hoses Optional
Cat. V Ball Hitch N/A
9 in. Sweeps Optional
8 in. Ultra Wing Sweeps Optional
9 in. Ultra Wing Sweeps Optional
Spare Tire and Wheel Optional
Flexible Five Row Spike Harrow Optional
Four Row Coil Tine Harrow Optional
Three Row Spike and Reel Optional
Three Row Tine and Reel Optional
Horsepower Requirements 7 to 9 HP (5 to 7 kW) Per Foot

Specifications subject to change with or without notice.



Flexible 5-Row Spike Harrow Attachment PDF Specs

4-Row Coil Tine Harrow Attachment PDF Specs

3-Row Spike and Reel Attachment PDF Specs

3-Row Tine and Reel Attachment PDF Specs

3-Row Spike and Double Flat Blade Reel Attachment PDF Specs
