9430FH-30 Features & Benefits

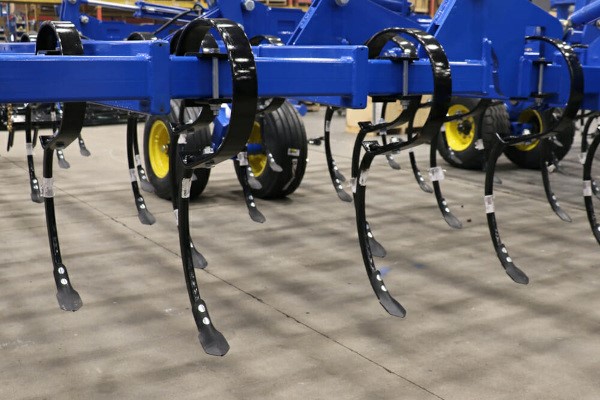

The 9400 Series comes with Danish Tines on 4" shank spacing. The 9600 Series has 6" shank spacing.

9430FH-30 Specs & Compare

Product Attributes 9430FH-30
Approximate Weight TBD
Working Width 30 ft. 6 in. (9.3 m)
Transport Width 17 ft. 4 in. (5.3 m)
Transport Height 13 ft. 0 in. (4.0 m)
Number of Shanks 91
Number of Shanks per Section 26--39--26
Shank Type Two-Piece Danish Tine
Shank Size - Upper 0.5 in. x 2.5 in. (12.7 x 63.5 mm)
Shank Size - Lower 0.375 in. x 2 in. (9.5 x 50.8 mm)
Shank Spacing 4 in. (102 mm), Split the Middle Pattern
Spacing Between Shank Rows 30 in. (762 mm) Minimum
Sweeps 0.3125 in. x 2.75 in. (7.9 x 69.9 mm)
Under Frame Clearance 26.5 in. (673 mm)
Fore-to-Aft Depth 165 in. (4.2 m)
Frame 3 in. x 4 in. x 0.25 in. (76.2 x 102 x 6.4 mm)
Frame Construction Laser Cut/Matchcut Components, Robotically Welded
Frame Type Truss Type with Wrapped Shank Tube Joints
Transport Lift Axles 4.5 in. (114 mm) Axle with Tower Lift System
Walking Tandems Standard with Maintenance Free Pivot Bushings
Tire Size - Main Frame (4) 320/70Rx15 Radial Tires
Wheel Hubs - Main Frame 8-Bolt
Spindles - Main Frame 2.25 in. (57.2 mm) Slip-In Spindles
Tire Size - Wing Frame (4) 280/70Rx15 Radial Tires
Wheel Hubs - Wing Frame 6-Bolt
Spindles - Wing Frame 2.25 in. (57.2 mm) Slip-In Spindles
Hitch Type Floating Hitch
Hitch Category Cat. IV Ball Hitch
Machine Depth Control Single Point, Front Mounted
Hydraulics 10 in. (254 mm) Stroke Cylinders
Gauge Wheels - Main Frame (2) 320/70Rx15
Gauge Wheels - Wing Frame (2) 280/70Rx15
Safety Warning Lights & SMV Emblem Standard
Safety Chain Kit Standard
Powder Coat Paint, Blue Sapphire Standard
Rear Hitch with Hydraulic Hoses Optional
Cat. V Ball Hitch N/A
Spare Tire and Wheel Optional
Flexible Five Row Spike Harrow Optional
Four Row Coil Tine Harrow Optional
Three Row Spike and Reel Optional
Three Row Tine and Reel Optional
Three Row Spike and Double Flat Blade Reel Optional
Horsepower Requirements 7 to 9 HP (5 to 7 kW) Per Foot
