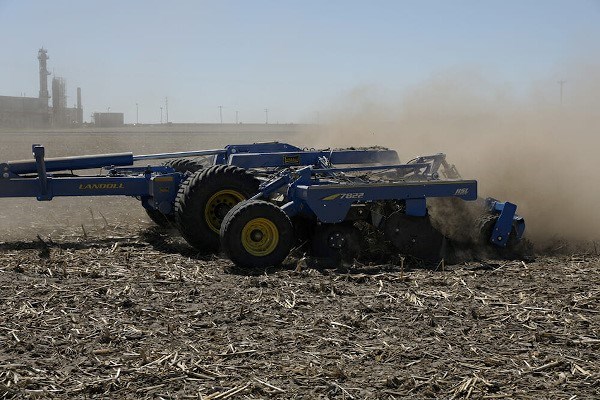

Get high speed residue management with features that leave the competition behind with the High Speed Landoll (HSL) from Landoll.
  • Get a Quote Value Your Trade Request Brochure
  • Send to a Friend
  • Payment Calculator

    • Get information on the 7822-17

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the 7822-17

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on 7822-17

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

7822-17 Features & Benefits

  • Laser Cut, Robotically Welded Frame
  • Heavy-Duty Transport Axles with UHMW Maintenance Free Pivots
  • (2) 710/40R x 22.5 Tires with 10-Bolt Wheels and 4” Slip-In Spindles on Center Section
  • (4) 32/1550 x 16.5 Tires with 8-Bolt Wheels and 2 1/4” Slip-In Spindles on Wings
  • Individually Mounted 24” Notched or Smooth Blades on 10" Spacing and 17 Degree Angle
  • Option of an Aggressive Compound or Vertical Blade Angle
  • Torsion Mounted Disc Mount
  • Maintenance-Free Dual Tapered Roller Disc Bearings
  • Floating Hitch
  • Front Mounted Depth Adjustment
  • Depth is Gauged by Wheels in Front and Reels in Rear
  • Operating Depth Range of 2” to 5”
  • Cast Lip Cat. IV Hitch
  • Available with Chevron Reels, Spring Tine Reels, Rubber Rollers or Double Chevron Rollers (Model Dependent)
  • 13’ Three-Point Hitch Model
  • 15', 17', 20' and 22' Two-Section Folding Models
  • 25’, 30’, 35’ and 40’ Pull-Type Three-Section Folding Models
  • Blue Powder Coat Paint
  • LED Safety Warning Lights

7822-17 Specs & Compare

Model 7822-17
Approximate Weight (with Chevron Reels) 21,661 lbs. (9,825 kg)
Working Width 16 ft. 8 in. (5.08 m)
Transport Width 13 ft. 2 in. (4.0 m)
Transport Height 13 ft. 4 in. (4.1 m)
Operating Depth Range 2 in. to 5 in. (50.8 to 127 mm)
Number of Blades - Front 21
Number of Blades - Rear 20
Blade Diameter 24 in. (610 mm)
Blade Thickness 0.25 in. (6.35 mm)
Blade Concavity 3 in. (76.2 mm)
Blade Spacing - Front and Rear 10 in.
Disc Angle - Front and Rear Pre-Set Non-Adjustable Compound Angle
Number of Disc Bearings - Front 21
Number of Disc Bearings - Rear 20
Disc Protection Torsion Mounted
Disc Bearings Individually Mounted with 5-Lip Seal
Frame Construction Laser Cut/Matchcut Components, Robotically Welded
Transport Axles 5.5 in. (140 mm) with UHMW Maintenance Free Pivots
Wing Axles Single Wheel
Main Frame Tires (2) 710/40R x 22.5 Tires
Main Frame Spindles 4 in. (102 mm) Slip-In Spindles
Main Frame Hubs 10 bolt
Wing Frame Tires (2) 410/50R x 16.5 Tires
Wing Frame Spindles 3 in. (76.2 mm) Slip-In Spindles
Wing Frame Hubs 8-Bolt
Hitch Type Floating Hitch
Hitch Category Cat. III Single Lip Ball Hitch with 1 1/2" (38.1 mm) Hole
Machine Depth Control Single Point, Front Mounted Depth Control
Safety Warning Lights and SMV Emblem Standard
Safety Chain Kit Standard
Adjustment Wrenches Standard
Powder Coat Paint, Blue Sapphire Standard
Cat. V Single Lip Hitch with 3 in. Hole N/A
Spare Tire and Wheel for Center Section Optional
Horsepower Requirements 15 to 17 HP (11 to 13 kW) per Foot

Specifications subject to change with or without
