Features
| Skid steer type quick attach that meets SAE | Fits most Skid Steers Easy hook-up and unhook capabilities. Loader arms can be used to apply additional down force. |

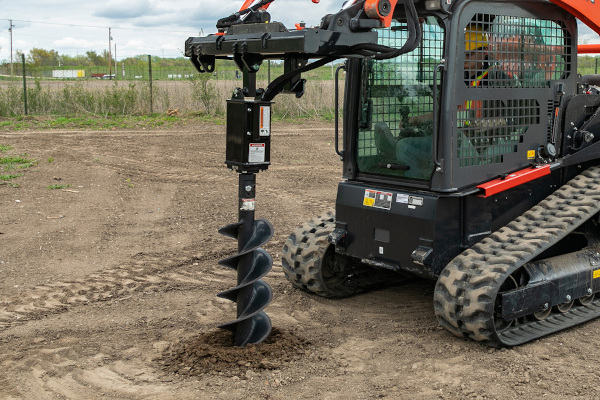

| Maneuverability | Skid Steer Post Hole Diggers are able to reach over fences or other obstructions. |
| Replaceable hardened steel points on auger | Hardened points will last longer than non-hardened. Points are replaceable. Fish tail tips and steel point make it easier to start a hole. |
| SA35 Series | Fits 10 – 30 gpm hydraulic systems |
| Output shaft options | 2" Hex shaped output shaft, or 2 9/16" shaft. Both offer high torque resistance, with the hex shaft being the heaviest available. |
| Planetary gearbox | Design is a tougher, more construction grade than chain and sprocket designed gearboxes. Boxes are completely sealed with all moving parts running in oil for constant lubrication. |
| Large selection of augers | Variety of Dirt, Tree, and Rock Auger sizes and styles to suit many applications. |
| Large selection of Bolt-on Rock Heads (Accessory) | Pengo Dirt Augers can be converted to Rock Augers with this accessory. |
| Auger length | 46" on 9" Auger, 48" on all others. |
| Puff augers | Available with 2" hex hub or 2 9/16" round hub. Used for drilling 2" rock T-post holes in tough conditions. |
Specs
| Skid Steer Hydraulic Requirements | 10 - 30 gpm @ 1500 to 3500 PSI |
| Hydraulic Motor | 18.3 CID |
| Gearbox | Hydraulically driven planetary gearbox; reversible |
| *Output Torque | 2,732 ft-lbs based on 3,000 psi @ 20 gpm |
| Hitch | Skid steer type quick attach that meets SAE |
| Weight without Auger | 372 lbs. |
| Auger Length | 9" Auger size = 49" All other auger sizes = 50 3/4" |
| Auger Flighting Thickness | 5/16" |
| Auger Pipe | 2 1/2" ID |
| Auger Teeth | Forged, Individually Replaceable. 40 Degree angle installed on flat side and 50 degree angle installed on angled side |
| Number of Teeth | Dirt Augers 6" - 2 teeth 9" & 12" - 4 teeth 15" - 5 teeth 18" - 6 teeth 24" - 8 teeth 30" - 10 teeth 36" - 12 teeth Tree Augers 24" - 9 teeth 30" - 11 teeth 36" - 13 teeth Rock Augers 6" - 6 teeth 9" - 10 teeth 12" - 12 teeth 15" - 14 teeth 18" - 16 teeth 24" - 20 teeth |
| Number of Teeth | Tree Augers 24" - 9 teeth 30" - 11 teeth 36" - 13 teeth |
| Number of Teeth | Rock Augers 6" - 6 teeth 9" - 10 teeth 12" - 12 teeth 15" - 14 teeth 18" - 16 teeth 24" - 20 teeth |
| Pilot | Cast Steel, 3 -Drill Points Cast Steel, 4 - drill points |
| Hex hub puff auger Part# .317-318A | 2" Pilot bit x 2" hex hub x 38.7" overall length |
| RND hub puff auger Part# 317-318A | 2" Pilot bit x 2 9/16" round hub x 38.7" overall length |
| Options and Accessories | |
| Gearbox Output Shafts (Options) | 2" Hex shaft or 2 9/16" round shaft |
| Auger sizes (Options). | Dirt, 2" hex hub: 6", 9", 12", 15", 18", 24", 30", & 36" Dirt, 2 9/16" round hub: 9", 12", 15", 18", 24", 30", & 36" Tree, 2" hex & 2 9/16" round hubs: 24", 30" & 36" |
| Bolt-on Rock Head (Accessory) | 6", 9", 12", 15", 18", & 24" |
| Auger Extensions (Accessories) | 2" Hex extension: 24" & 48" Extensions Available 2 9/16" OD round extension: 24" & 48" Extensions Available |
