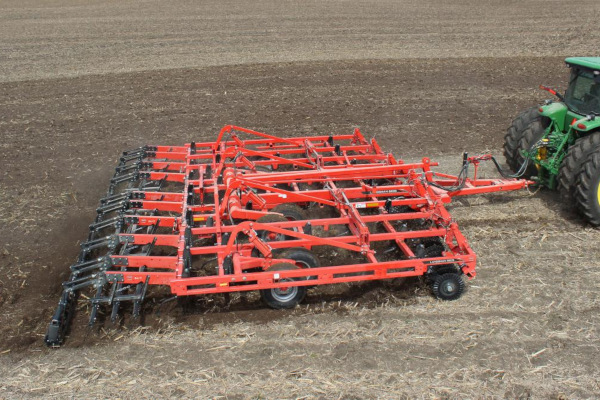

Kuhn LANDSMAN 6205-45

EXCLUSIVE 4-STEP PROCESS

Exclusive 4-Step Process

1. Cut Residue
   Exclusive KUHN Krause Excalibur^® blades with their 32-flute edge uniformly size residue for smooth flow through the machine. The gang, angled 8 degrees toward the rear of the machine, minimizes lateral soil movement to improve the leveling action of the shanks.
2. Mix
   Cultivator shanks provide thorough mixing action, dislodge weeds and settle soil. The Landsman^® offers a choice of 7” spacing for smaller clod sizing and more residue coverage, or 9” spacing for maximum residue handling capabilities.
3. Level Soil
   Tine or spike harrows provide excellent clod breaking and additional leveling action. Choose the harrow system that best fits your cropping practice.
4. Enhance Seedbed Condition
   The exclusive 24/7^® Soil Conditioning Reel, available in 3-row tine with reel or 3-row spike with reel, accomplishes final clod sizing and soil firming with the ability to select a range of constant down pressure or float position to extend the weather/tillage window.

MAXIMUM RESIDUE MANAGEMENT

Manage Residue
Crop residue management is critical for a healthy, productive soil environment. Sized residue, properly mixed into the soil, minimizes soil compaction, releases stored nutrients and aids in moisture infiltration. Residue cover provides protection against soil erosion from heavy rainfall and high winds.

The front-mounted gangs on the Landsman^® are the beginning of this crop residue management process. The 8° gang angle and Excalibur^® VT blades combine to minimize lateral soil movement. The exclusive 32-flute Excalibur blade uniformly sizes residue and begins the leveling process. The 9-1/8” blade spacing provides 24% more residue cutting force than competitive models with narrower blade spacing. Hydraulic gang control, providing on-the-go adjustment is standard.

Maximum Residue Capacity
The Landsman^® cultivator shanks provide thorough mixing action, dislodge weeds and settle soil. Two shank spacing options are available. For smaller clod sizing and average residue coverage, choose the 7'' spacing. The 9'' spacing easily accommodates heavy residue coverage. KUHN Krause offers several agronomic shank choices to meet your specific needs.

AGRONOMIC CHOICES

Shank Mount and Shank Options
With a variety of shank and mount options, the KUHN Krause Landstar™ can be configured to meet your agronomic needs.

24/7 Leveling Systems
KUHN Krause offers a variety of harrows to meet your specific soil and residue requirements. These harrows are available for all sizes and provide time saving features to increase overall productivity.
