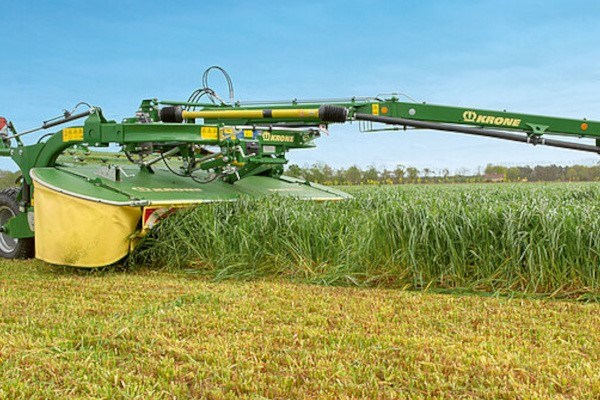

Krone EasyCut TC 320 CV

EasyCut TS/TC - The new trailed mowers from KRONE

• Mowers with side-mounted (TS) and mid-mounted drawbar (TC)
• Robust and fully welded cutterbar with massive and permanently lubricated sprockets
• SmartCut: Stripe-free swath with especially wide overlap of the blade tracks
• SafeCut: Individually protected cutting discs
• Quick-change blades are standard specification
• DuoGrip: Centre of gravity mounting with double guidance for best ground adaptation
• Tine conditioner (CV) or roller conditioner (CR) for fast and uniform wilts
• Optional Collect cross belt increases your swathing options

The EasyCut TS/TC models

• Multiple attachment options for great versatility
• Choice of conditioners to suit different crops
• Tried-and-tested – the solid EasyCut cutterbar
• Hydraulic suspension for superb contouring and sward protection

Performing in the most versatile conditions around the world, the new and stylish EasyCut TS/TC models stand out for their enormous versatility and flexibility. Choose from various drawbar ends and three different conditioners and opt for the Collect swathing belt as examples of the versatility on offer.

The KRONE cutterbar

• Fully welded cutterbar Robust, sealed and permanently lubricated
• Durable satellite drive with large spur wheels Very quiet running and optimum power transmission
• Without inner shoe for trouble-free mowing

The enclosed and fully welded cutterbar meets the highest quality standards and operates dependably and leak-free over many years of hard work. Massive and oil-immersed spur gears impress by very quiet and reliable running in sustained peak-load operation.

The KRONE cutterbar – Stripeless cuts, swathing, spreading

• The wedge-shaped cutterbar guarantees clean cuts
• SmartCut: Generous blade overlap for an optimum crop flow to the rear
• Swathing or not swathing

Offering flexible height control, the wedge-shaped cutterbar gives users the versatility to cut short grass in meadows and pastures but also long-stemmed forage crops. An EasyCut mower delivers a reliable performance and clean cut.

The KRONE quick-change blade system

• Quick-change blades
  allow operators to swap blades in the field quickly
• Modular disc design
• Minimal blade wear
  360° swivel range of the blades
• Excellent cut thanks to KRONE SmartCut
  Optimum overlap of the blade tracks

The quick-change blades, the modular design and the perfect arrangement of the mowing discs for a stripe-free swath are just a few examples which speak in favour of choosing an EasyCut disc mower.

The KRONE SafeCut system

• Full driveline protection for added reliability
• Neighbouring discs will not collide
• Wear-free
• Quick replacement of the roll pins to ensure high operational reliability and minimum costs

Colliding discs may cause damage and involve costly repairs. KRONE SafeCut offers a maximum of protection and peace of mind. The award winning system on all EasyCut models offers a unique level of protection and operator comfort. SafeCut is part of the basic equipment of all EasyCut F series disc mowers.

The KRONE DuoGrip suspension

• DuoGrip
  Dual steering of the cutterbar - "Supported in the centre of gravity - guided by suspension arms"
• Uniform ground pressure
  across the entire work width
• Optimum guidance
  Less side pull, clean cuts
• Hydraulic mower relief
  for even better contouring and protection of the sward

The KRONE DuoGrip suspends the mower in its centre of gravity and guides it via two arms. This design allows the cutterbar to follow the ground contours even more accurately for a better protection of the sward. This way, the machine produces high-quality forage even in difficult conditions.

EasyCut TS 320

• Ideal for lighter tractors – with their own running gear
• Light-pulling and compact machine with a sturdy V-Frame
• All-round mowing with slewing gear Turns on the spot
• DuoGrip centre-of-gravity Suspension
• Working heit setting Comfortable via spindle

Are you looking for a powerful trailed mower without conditioner that works at a width of about 3.16 m? Then the KRONE EasyCut TS 320 with DuoGrip centre-of-gravity suspension is the machine for you. This mower stands out for an extremely low power input, maximum stability as well as a superior level of specification and operator comfort.

The KRONE conditioner with V-type steel tines

• Easy and quick Operation
• Optional deflectors spread the material across the full width
• Infinitely variable swath widths
• Manual gearbox, Adjustable degree of conditioning

The KRONE CV rotor with V-shaped and grippy steel tines spreads the crop at the full working width. Its massive 64 cm diameter and the helical arrangement of the tines warrant a continuous crop flow, high throughputs and superior conditioning.

Die Krone Walzenaufbereiter

• Consistent crop flow
  by 25 cm diameter rollers
• High throughput
  from powered crop processor rollers
• Excellent conditioning
  with profiled rollers - "grip effect"
• Roller conditioner
  optionally with polyurethane rollers or as M-Rolls with steel profile

Leafy crops like Lucerne or clovers require a different type of conditioning than crops that are predominantly grass. The CR roller conditioners give particularly gentle treatment, leaving intact the delicate leaves which are so rich in protein and safeguarding the value of the feed. Spreading the crop will speed up wilting.

The KRONE Collect swathing belt

• Drive via own on-board hydraulics
• Infinitely variable crop throw
• Belt auto on/off during lift/lower
• Wide and high-capacity swathing belt
• Frameless design for reduced machine weight
• Massive and stronger drive rollers warrant a continuous crop flow also in difficult conditions

The hydraulic cross conveyor belt which is available for some of the trailed models saves time, reduces the number of passes and minimizes compaction. By feeding the crop to the swath without it contacting the ground, this system guarantees particularly clean forage.

EasyCut TS/TC models with conditioner

• Enhanced operator comfort from hydraulic suspension
• New and modular frame
  with tensioned curtains for enhanced contouring
• Hydraulic height control or tilt function
  is an option
• Standard slewing gearbox
  for a straight power flow
• Optional KRONE Collect swathing belt

The new trailed mowers with conditioners offer a maximum in flexibility and versatility. These machines satisfy a wide range of different needs and requirements. The TS models are impressive thanks to their compact design, the TC models thanks to their wide range of applications. The mid-mounted drawbar allows the mower to track offset on either side behind the tractor. All conditioner models can be specified with the KRONE Collect system as an option.

KRONE EasyCut TC Connect

• Coupling frame
  for two trailed mowers for maximum efficiency
• Designed for the centre drawbar models
  EasyCut TC 400 CV/CR and EasyCut TC 500 CV/CR
• CTF Ready (Controlled Traffic Farming)
  with over 12 m working width
• Maximum efficiency
  by combination of existing mower components
• Transport position and solo operation
  of the mowers still possible

The EasyCut TC Connect allows the attachment of two trailed centre drawbar mowers. Combined with a KRONE front mounted mower, the result is a working width of up to 13 m. Maximum efficiency and Control Traffic Farming are the logical conclusion. The solo operation of the mowers is maintained, no conversion measures need to be carried out.

Wildlife protection

My 'First Cut' check list

1. Hunters informed on the cutting date
2. Area searched for wildlife and nests
3. Hubertus wildlife warning system used
4. Mowing strategy correctly chosen
   (mowed from the inside to the outside)

Let's take preventive measures together:
There are many different approaches to protect local wildlife and reap a high-quality forage feed. The Hubertus audible alarm device is certainly a good initial step in scaring off animals but it can never replace the communication between farmers, contractors and hunters, because visual inspections of the fields are indispensable. Applying the proper mowing strategy is also of key importance.
