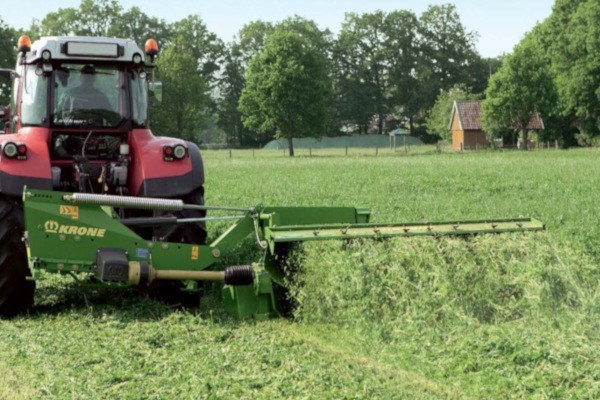

Krone EasyCut R 280 CV

Rugged and easy use, tried and tested around the world

• Quick-change blades
• SafeCut: Individually protected discs
• SmartCut: Stripeless cuts from optimum blade overlaps
• DuoGrip: The centre-of-gravity suspension system with dual grip control
• Optimum ground pressure control by means of responsive and adjustable springs
• Available conditioner versions: CV conditioner with V-type steel tines, CR conditioner with rubber rollers or M-Rolls
• Compact in transport as the mower tilts to the middle of the tractor – for optimum weight distribution and visibility

The EasyCut R rear mowers

Without conditioner

• Working widths from 2.73 m to 4.50 m |
• DuoGrip centre of gravity mounting
• Smart-Cut cutterbar for maximum lifetime
• Very responsive spring relief

With conditioner

• Working widths of 2.7 m or 3.2 m
• With tine or roller conditioner (polyurethane rollers or M-Rolls)
• DuoGrip centre of gravity mounting
• Over-centre transport position reduces transport height



The cutterbar features a host of smart details like the SafeCut disc protection system or the SmartCut blades with optimum overlaps. EasyCut R - professional technology for farmers and contractors.

The KRONE cutterbar

• Fully welded cutterbar  Robust, sealed and permanently lubricated
• Durable satellite drive with large spur  wheels, Very quiet running and optimum power transmission
• Without inner shoe for trouble-free mowing

The closed, all-round welded cutterbar meets the highest quality standards and remains leak-proof and in shape even after many years of use. The large spur wheels in an oil bath can withstand the highest continuous loads and impress with their particularly quiet running.

KRONE SmartCut for a perfect spread

• The wedge-shaped cutterbar guarantees clean cuts
• Robust spur wheel drive with double bearing and large bearing distance
• Swathing or wide spreading as required

The wedge-shaped cutterbar offers great flexibility to adjust through a large range of settings and leave a short stubble in meadows and pastures as well as long stubble in long-stemmed field crops. An EasyCut lets you work trouble-free and leaves a clean cut.

The KRONE quick-change blade system

• Quick-change blades for quick blade handling in the field
• Modular design of cutting discs
• Minimal blade wear 360° swivel range of the blades
• Excellent cut thanks to KRONE SmartCut Optimum overlap of the blade tracks

There are many reasons for choosing an EasyCut disc mower. Just think of the quick-change blades, the inexpensive wear parts and the perfect arrangement of the cutting discs for stripe-free swaths.

The KRONE SafeCut system

• Fully protected drives for greater reliability
• No collision with neighbouring cutting discs
• No signs of wear
• Quick replacement of the roll pins to ensure high operational reliability and minimum costs

Collisions may cause damage and incur repair costs. KRONE SafeCut offers a maximum of protection and peace of mind. The
DLG award-winning protection of the cutting discs against foreign objects for all EasyCut models is unique in terms of safety and operator comfort. SafeCut is part of the basic equipment of all KRONE disc mowers.

The KRONE DuoGrip centre-of-gravity suspension

• Dual steering of the cutterbar Supported in the centre of gravity- guided by suspension arms
• Uniform ground pressure across the entire work width
• Optimum guidance Less side pull, clean cuts
• Short and high-strength beam

Quality forage requires a clean swath. Clean cuts are attributed to the special design of the cutterbar and the special suspension. The KRONE DuoGrip not only supports the disc mower at its centre of gravity, but also guides it using suspension arms. The constant bearing pressure across the entire working width ensures a uniform cutting pattern, with maximum low drag resistance and excellent lateral guide.

The KRONE cutter suspension system

• Centrally adjustable relief springsfor uniform cut with optimum bearing pressure
• Ground pressure control without tools
• Optional Hydraulic adjustment of the bearing pressure while driving
• Double protection by impact damage protection system

The hydraulic and the mechanical suspension springs are extremely responsive and provide perfect cuts even in undulating terrain and at high forward speeds. This is the first step in making clean and high-quality forage and a
requirement for a fast and uniform re-growth. Thanks to the kinematics between the spring and carrying bar, the set bearing pressure remains constant even on uneven ground.

Work position and transport position

• Folding beyond the vertical.For low transport height, optimum weightdistribution and overview
• Hydraulic lifting at the headland Tractor lower links are not actuated
• Large suspension travel

Increasing working widths require special designs with regard to transport and ground adaptation. The Z-shape and the low pivot point of the outrigger arm, the swivelling of the mower into the transport position beyond the dead centre and the headland position without actuating the tractor's lower links are just some of the features which meet the specific requirements. KRONE disc mowers keep you safe on the road and give you the best mowing results even under difficult conditions.

EasyCut R 280 CV and R 320 CV: The tine conditioner models

• Easy and quick operation
• Optional deflectors spread the material across the full width
• Optional hydraulic swath flap
• Infinitely variable swath widths
• Manual gearbox; varlable degree of conditioning

The KRONE CV rotor with V-shaped and grippy steel tines spreads the crop at the full working width. The large diameter of 64 cm and the helical arrangement of the tines ensure a continuous crop flow, high intake capacity and excellent conditioning.
