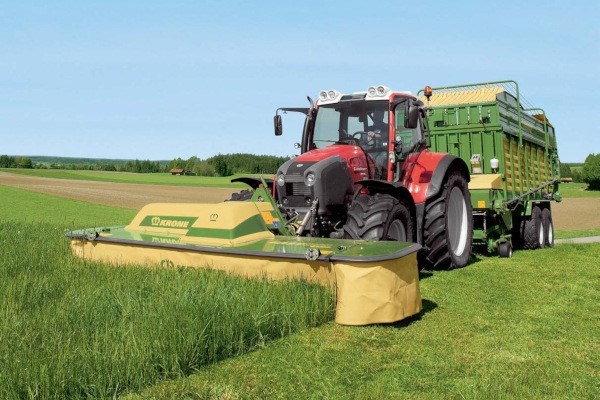

Krone EasyCut F 280

The EasyCut F model range

• 2.71 m - 4.04 m working widths
• Push-type or Pull-type cutterbar
• With or without conditioner
• Compact M models
• Models with powered swath drum
• EasyCut F 400 Fold and F 400 CV Fold with folding cutterbar

The EasyCut F series is a line-up of innovative front mounted mowers with or without tine or roller conditioner and work widths of 2.71 m to 4.04 m. At the same time, the range comprises particularly compact and light-weight front mounted mowers for mountain fields and applications. Powered swath drums are available for some models. These form narrow swaths that the tractor cannot straddle.

The KRONE cutterbar

• Fully welded: Robust, sealed and permanently lubricated
• The durable satellite drives have massive spur gears for quiet running and superior efficiency
• No inner shoe for trouble-free cutting

The enclosed and fully welded cutterbar meets the highest quality standards and operates dependably and leak-free over many years of hard work. Massive and oil-immersed spur gears impress by very quiet and reliable running in sustained peak-load operation.

KRONE SmartCut for a perfect spread

• The wedge-shaped cutterbar guarantees clean cuts
• Heavy-duty spur gears run in widely-spaced double bearings
• Swathing or spreading depending on needs

The wedge-shaped cutterbar offers great flexibility to adjust through a large range of settings and leave a short stubble in meadows and pastures as well as long stubble in long-stemmed field crops. An EasyCut mower delivers a reliable performance and clean cut.

The KRONE quick-change blade system

• Quick-change blades allow operators to swap blades in the field quickly
• Modular disc design
• Minimum blade wear: 360° blade action
• Excellent cuts from KRONE SmartCut: Optimum blade overlap

There are many reasons for choosing an EasyCut disc mower. Just think of the quick-change blades, the inexpensive wear parts and the perfect disc arrangement for stripeless cuts.

The KRONE SafeCut system

• Full driveline protection for added reliability
• Neighbouring discs will not collide
• Wear-free
• Quick-change roll pins for minimum downtime and costs

Colliding discs may cause damage and involve costly repairs. KRONE SafeCut offers a maximum of protection and peace of mind. The award winning system on all EasyCut models offers a unique level of protection and operator comfort. SafeCut is a base specification feature on all EasyCut F models.

EasyCut F 280 · F 320: With powered swath flap extensions

• Powered top hats present the swath between the tractor wheels
• Uniform swath presentation
• Continuous crop flow

The KRONE EasyCut F 280 and F 320 and stand out for their massive top hats which mount behind the discs on either end of the cutterbar. Driven from within the cutterbar, they provide a consistent flow of crop to the centre of the machine so that the tractor wheels will not run on the fluffy swath and the harvester will pick up the material without losses.

EasyCut F 280 · F 320: With push-type headstock

• A compact combination
• Generous pivoting range
• Optional telescopic top link
• No hydraulic connections
• Ideal when combined with EasyCut B mower

The front mounted KRONE mowers stand out for easy handling, a straightforward design and superior functionality. The pushed version is compact in size and low in weight. Suspended by a pivoting support in its centre of gravity and close to the tractor's front wheels, the unit benefits from very little travel for perfect cuts, uncontaminated forage and fast regrowth.
