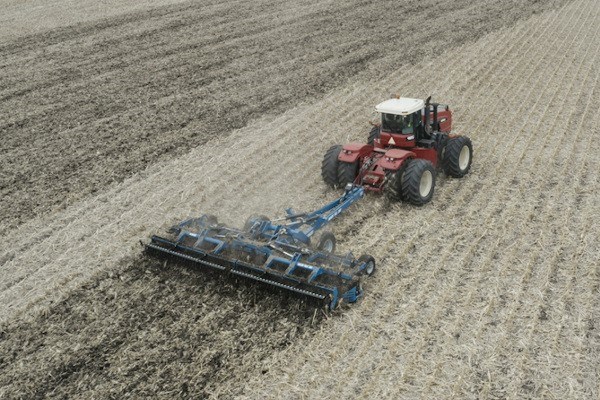

Kinze Mach Till 261

KEY BENEFITS:

• Independently mounted discs have 11½” of clearance to enable discs to clear rocks and other obstacles while following land contours
• Four robust rubber spring elements pre-load the disc arms and keep discs firmly engaged with the soil
• Heavy-built frame provides the weight necessary for working in all soil conditions and is supported by four high-flotation tires
• Consistent working depth is maintained by distributing the frame weight wing-to-wing by the pressure compensated hydraulic weight distribution system
• The full width rubber furrow roller provides optimum, non-compacting soil and residue firming in various soil conditions
• Both the concave smooth and double-V discs are shallow-faced to provide an aggressive cutting edge while eliminating soil compaction layers
• Discs are spaced 10″ apart to enhance residue flow and eliminate plugging
• Maintenance-free double-sealed bearings, carbide roller scrapers, composite bushings, and oversized pins throughout provide many acres of low maintenance operation
• Tills an average of 32 acres per hour at 10 mph using a 390–450 HP tractor operating at 80% field efficiency

FEATURE & OPTIONS:

• Category 4 articulating hitch
• Tungsten carbide scrapers
• Hydraulic weight distribution
• 2-Section heavy built frame
• OTICO furrow rollers
• Independent disc arms
• Mechanical depth control
• Hydraulic jack
• Transport width of 13′-10″
• 20″ or 22″ smooth and double-V discs
