Kinze 3505
PIVOT FOLD MODEL
8 ROW 30″ | 6 ROW 30″

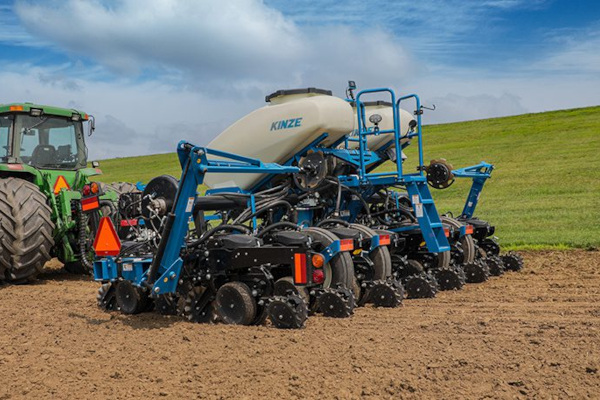

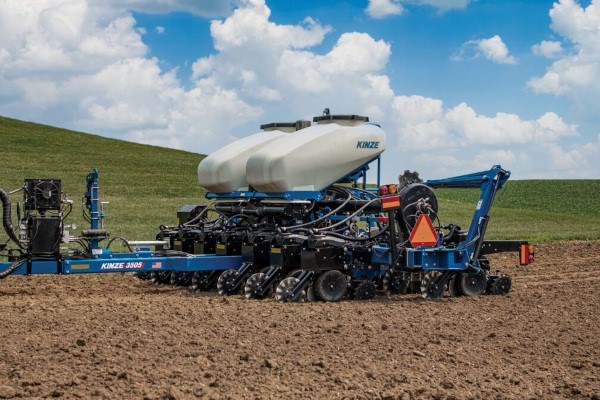

The uniquely outfitted Kinze 3505 rigid frame, pivot fold planter is available as either a small frame classic or advanced technology planter that is ideal for small farms or easily navigating smaller fields. It is easy to operate, designed for high performance, and available with optional split rows, bulk-fill hoppers, and liquid and dry fertilizer for optimum efficiency.
Shopping Tools
3505 Features & Benefits
KEY BENEFITS:
- Simple and easy to use Blue Vantage display with shared coverage data and up to four planter-mounted cameras
- True high-performance and accurate split row planting with True Speed high speed meters, and Blue Drive electric drive
- Consistent seed depth control from the optional True Depth hydraulic down force system
- Exceptional seed handling capabilities with upgraded bulk fill entrainer—up to 11 different crops
- Fewer stops from scale-equipped bulk fill seed hoppers with a total capacity of 50 bushels
- Narrow transport and easy serviceability achieved with double frame, lift and pivot folding frame design
- Improved durability, longer wear life, and lower cost of ownership with the 3005 Series row unit
- Efficient fertilizer application with up to 300 gallons of liquid or 2,200 lbs. of dry fertilizer capacity
FEATURES & OPTIONS:
- Blue Vantage display
- Blue Drive electric drive
- True Speed high speed and True Rate vacuum electric meter
- True Depth hydraulic down force
- Liquid or dry fertilizer
- 50 bu. bulk fill capacity with scale
- 3005 Series row unit
- Split rows
- Narrow transport
3505 Specs & Compare
| MODEL: 3505 | 8R 30" | 6R 30" |
| Length | ||
| Planting - row unit hoppers | 19' 8" | 19' 8" |
| Planting - bulk fill hoppers | 19' 8" | - |
| Transport - row unit hoppers | 26' 5" | 23' 9" |
| Transport - bulk fill hoppers | 26' 5" | - |
| Width | ||
| Planting - row unit hoppers | 21' 10" | 16' 10" |
| Planting - bulk fill hoppers | 21' 10" | - |
| Transport - row unit hoppers | 11' 2" | 11' 2" |
| Transport - bulk fill hoppers | 11' 2" | - |
| Height | ||
| Planting - row unit hoppers | - | - |
| Planting - bulk fill hoppers | 8' 0" | - |
| Transport - row unit hoppers | 10' 6" | 10' 6" |
| Transport - bulk fill hoppers | 12' 0" | - |
| Weight (empty) | ||
| Base machine - row unit hoppers | 5,886-6,269 lbs | 5,163-5,443 lbs. |
| Base machine - bulk fill hoppers8 | 6,919-10,890 lbs | - |
| Hitch - row unit hoppers | - | - |
| Hitch - bulk fill hoppers | 2,260 lbs (with split rows) | - |
