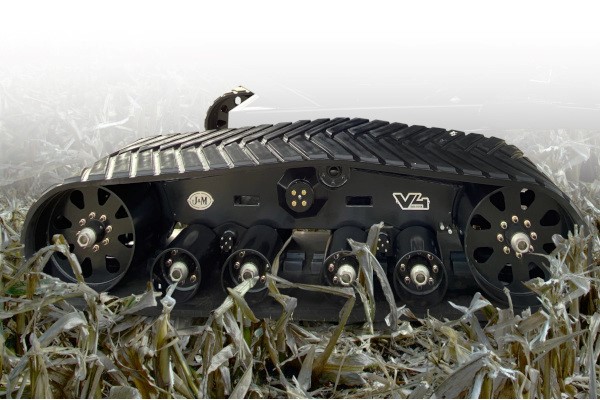

J&M Manufacturing V4 LT (36"×119")

• Swivel Hitch Alignment
  The convenient alignment mechanism uses two bolts for adjustment and is accessible from each side of the cart. Two steel keepers prevents loosening during operation.

• 2Upper Tensioning Roller
  The upper tensioning roller keeps tension on the belt, limiting unsightly belt flop.

• 3Super High-Strength Axle
  The axle is constructed with 12”×12”×½" thick tubing for maximum shear and bending strength, capable of withstanding the heaviest loads under the most extreme conditions.

• 4Tensioner
  V4 tracks feature a maintenance-free "Set it and forget it" spring tensioner, which eliminates the need for adjustment once set.

Less Compaction

• Efficient, high strength design offers largest ground footprint per track weight in the industry
• Smaller diameter end wheels allow for more evenly spaced wheels, resulting in a more uniform ground footprint

Low Maintenance

Virtually Maintenance Free During Day-to-Day Operations

• Oil bath hubs
• Synthetic oil provides superior bearing protection and excellent lubricant flow, even in the coldest weather
• Each oil bath hub has a cassette style seal, a separate seal guard, and an external v-ring seal for a total of 6 contacting sealing lips and 2 non-contacting sealing lips for better sealing under the harshest conditions
• Composite "greaseless" sleeve bearings
• "Set it and forget it" spring tensioner
• End wheel cutouts provide an exit point for mud/debris during cleaning and an access point for inspection/maintenance
• Sleek design leaves few places for mud and debris to settle, keeping buildup to a minimum

Other Advantages

• Axle mount height is among the lowest in the industry, reducing the overall height of the implement
• Upper rollers limit unsightly belt flop
• Bogie wheel pivots are closer to the ground than on competitors' models, allowing the bogies to more easily and smoothly walk over obstacles
• Lower profile end wheels result in less bearing stress during turns, leading to longer bearing life
