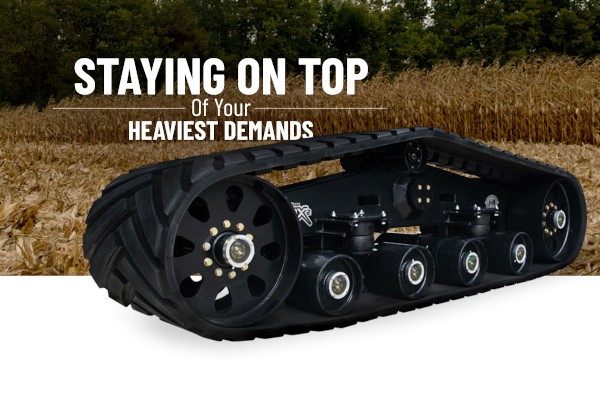

J&M Manufacturing 36" Stabilizer Trax

• Tensioner
  A single, large‑diameter compression spring provides active tension for the track belt. The spring tensioner requires no daily adjustment, eliminating the hassle of hydraulic or other tension systems.

• Oil Bath Hubs
  Oil bath hubs utilize synthetic oil for superior bearing protection and excellent lubricant flow, even in the coldest weather. There is no need for constant greasing of hubs. Multi-lip cassette seals with separate seal guards provide better sealing under the harshest conditions. Large sight windows make checking the oil level a breeze, even from a distance.

• Self-Lubricated Sleeve Bearings
  All pivots and bogie rollers utilize self-lubricated sleeve bearings, requiring no daily greasing.

• Rubber Springs
• Rubber springs and pivoting bogies significantly reduce tank shock loads and vibration while providing more uniform ground contact over uneven terrain. Each bogie pair can pivot 14° front‑to‑back and 7° side‑to‑side, reducing stress on the belt, wheels and hubs.

• Swivel Hitch Alignment
  The convenient alignment mechanism uses two bolts for adjustment and is accessible from each side of the cart. Two steel keepers prevent loosening during operation.

• Undercarriage Beam
  Constructed from high‑strength plate steel, the undercarriage beam provides superior strength at a reduced weight. The sleek design stays cleaner with minimized locations for mud buildup.

• Upper Roller
  Upper roller keeps tension on the belt and reduces belt flop.

Raised End Wheels

• End wheels remain up when cart is empty for reduced belt wear during transport and easier running.
• End wheels move down when cart is under load for maximum flotation.
• Raised end wheels easily climb over obstacles and make turning easier than traditional tracks

Independently Suspended, Oscillating Bogie Wheels

• Independently suspended bogie wheels oscillate 14° front to back and 7° side-to-side to supply more uniform ground contact.
• Belt tension spikes are minimized, increasing bearing life.

Low Maintenance

Virtually Maintenance Free During Day-to-Day Operations

• Oil bath hubs
• Synthetic oil provides superior bearing protection and excellent lubricant flow, even in the coldest weather
• Each oil bath hub has 6 contacting sealing lips and 2 non-contacting sealing lips for better sealing under the harshest conditions
• Self-lubricated sleeve bearings
• "Set it and forget it" spring tensioner
• End wheel cutouts provide an exit point for mud/debris during cleaning and an access point for inspection and/or maintenance
• Upper rollers limit unsightly belt flop
