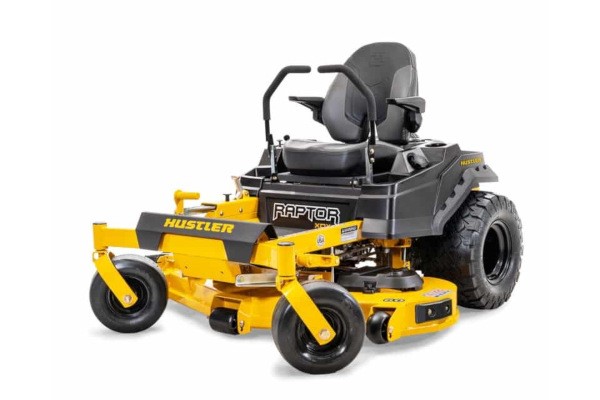

Hustler Turf Raptor XDX 60"
The Raptor® XDX is at the top of Hustler's residential zero-turn category. It has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and toolless removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions. The 5-inch-deep deck is designed to allow for mowing through thick grass at top speeds. The heavy-duty XDX is backed by a 3yr / 300hr limited warranty and 1yr / 300hr commercial limited warranty.
Shopping Tools
Raptor XDX 60" Features & Benefits
Commercial Grade Deck
Heavy-duty 11 gauge steel and front bull nose bumper design for unmatched durability. Up to 60” deck sizes available.
Extra High-back Seat
A premium extra high-back seat with armrests.
22" BigBite™ Tires
More aggressive tire to handle tough jobs.
Raptor XDX 60" Specs & Compare
| Model | Raptor XDX 60" |
| ENGINE MANUFACTURER | Kawasaki FR730 |
| ENGINE HORSEPOWER | 24 |
| TRANSMISSION | Hydro-Gear ZT3100 |
| FUEL CAPACITY | 3 gal. |
| GROUND SPEED (FWD) | Up to 8 mph |
| CUTTING WIDTH | 60" |
| CUTTING HEIGHT | 1.5" to 4.5" |
| FRONT TIRE | 13 x 6.5 |
| DRIVE TIRE | 22 x 11-10 BigBite™ |
| Engine | |
| ENGINE MANUFACTURER | Kawasaki FR730 |
| ENGINE HORSEPOWER | 24 |
| DISPLACEMENT | 726cc |
| COOLING | Air Cooled |
| AIR CLEANER | |
| Drive System | |
| TYPE | Dual Hydrostatic |
| TRANSMISSION | Hydro-Gear ZT3100 |
| FUEL CAPACITY | 3 gal. |
| GROUND SPEED (FWD) | Up to 8 mph |
| PARKING BRAKE | Integrated with steering levers |
| Deck | |
| CUTTING WIDTH | 60" |
| CUTTING HEIGHT | 1.5" to 4.5" |
| DECK DEPTH | 5.0" |
| DECK LIFT | Foot Operated |
| NUMBER OF BLADES | 3 |
| BLADE LENGTH | 20.50" |
| BLADE TIP SPEED | 18,400 |
| SPINDLES | Aluminum with 1" shaft and sealed ball bearings |
| DECK ENGAGEMENT | Ogura GT1.5 |
| DECK MATERIAL | Fabricated 10 gauge steel |
| SPINDLE MOUNTS | Reinforced 11 gauge steel |
| IMPACT TRIM AREA | 11 ga. formed channel w/ rolled edge |
| ANTI-SCALP WHEELS | |
| Construction | |
| FRAME | 1.5" X 3.0" steel tubing |
| ENGINE PLATE | |
| OPERATOR PLATFORM | |
| FRONT AXLE | Fabricated with sealed ball bearings |
| FRONT CASTER WHEEL | Sealed ball bearings |
| FRONT CASTER FORK | Fabricated 3/8" steel |
| General | |
| SEAT | Premium bolstered high-back seat with armrests and built-in lumbar support |
| CUP HOLDER | Yes |
| Dimensions | |
| FRONT TIRE (INCHES) | 13 x 6.5 |
| DRIVE TIRE (INCHES) | 22 x 11-10 BigBite™ |
| WING TIRE (INCHES) | |
| WEIGHT (LBS) | 710 |
| HEIGHT (INCHES) | 43.7 |
| LENGTH (INCHES) | 71.1 |
| WIDTH W/ CHUTE UP (INCHES) | 62.2 |
| TIRE-TO-TIRE WIDTH (INCHES) | 48.6 |
| PRODUCTIVITY (ACRES PER HOUR) | 3.88 |
| Dimensions with Catcher | |
| CATCHER STYLE | 2-bag |
| POWERED / NON-POWERED | Powered |
| CATCHER CAPACITY | 7.2 bushel |
| MOWER LENGTH W/ CATCHER | 92.3 |
| MOWER WIDTH W/ CATCHER | 69.2 |
