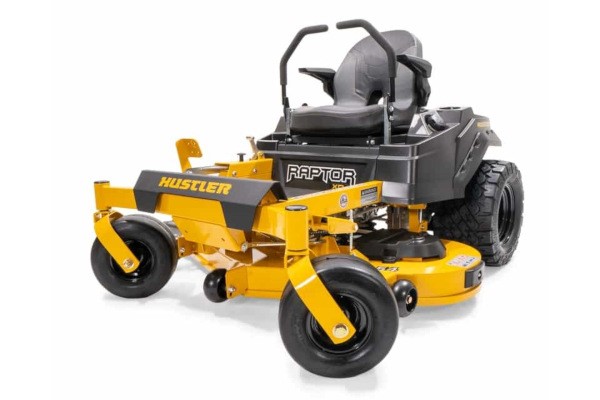

Hustler Turf Raptor XD 54"
The Raptor® XD is the ideal zero-turn for homeowners with up to five acres of property. The up to 24hp Kawasaki® engine and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, we’ve spent decades and thousands of hours perfecting our durable fabricated decks that provide a crisp, clean cut-quality. Raptor XDs are backed by a 3yr / 300hr limited warranty.
Shopping Tools
Raptor XD 54" Features & Benefits
BigBite™ Rear Tires
We worked directly with the tire manufacturer on this design. You will not find them anywhere else.
Premium Seat
Premium bolstered high-back seat with armrests and built-in lumbar support.
Welded Steel Deck
Welded fabricated steel deck adds durability & extends mower's life. Up to 60" deck size available.
Raptor XD 54" Specs & Compare
| Model | Raptor XD 54" |
| ENGINE MANUFACTURER | Kawasaki FR691 |
| ENGINE HORSEPOWER | 23 |
| TRANSMISSION | Hydro-Gear ZT2800 |
| FUEL CAPACITY | 3 gal. |
| GROUND SPEED (FWD) | Up to 7.5 mph |
| CUTTING WIDTH | 54" |
| CUTTING HEIGHT | 1.5" to 4.5" |
| FRONT TIRE | 13 x 6.5 |
| DRIVE TIRE | 20 x 12-12 BigBite™ |
| Engine | |
| ENGINE MANUFACTURER | Kawasaki FR691 |
| ENGINE HORSEPOWER | 23 |
| DISPLACEMENT | 726cc |
| COOLING | Air Cooled |
| AIR CLEANER | |
| Drive System | |
| TYPE | Dual Hydrostatic |
| TRANSMISSION | Hydro-Gear ZT2800 |
| FUEL CAPACITY | 3 gal. |
| GROUND SPEED (FWD) | Up to 7.5 mph |
| PARKING BRAKE | Integrated with steering levers |
| Deck | |
| CUTTING WIDTH | 54" |
| CUTTING HEIGHT | 1.5" to 4.5" |
| DECK DEPTH | 4.5" |
| DECK LIFT | Foot Operated |
| NUMBER OF BLADES | 3 |
| BLADE LENGTH | 18.50" |
| BLADE TIP SPEED | 18,800 |
| SPINDLES | Aluminum with 1" shaft and double lip sealed ball bearings |
| DECK ENGAGEMENT | Ogura GT1.5 |
| DECK MATERIAL | Fabricated 11 gauge steel |
| SPINDLE MOUNTS | Reinforced 7 gauge steel |
| IMPACT TRIM AREA | 3/8" x 1" steel bar |
| ANTI-SCALP WHEELS | |
| Construction | |
| FRAME | 1.5" X 3.0" steel tubing |
| ENGINE PLATE | |
| OPERATOR PLATFORM | |
| FRONT AXLE | Fabricated with sealed ball bearings |
| FRONT CASTER WHEEL | Sealed ball bearings |
| FRONT CASTER FORK | Fabricated 3/8" steel |
| General | |
| SEAT | Premium bolstered high-back seat with armrests and built-in lumbar support |
| CUP HOLDER | Yes |
| Dimensions | |
| FRONT TIRE (INCHES) | 13 x 6.5 |
| DRIVE TIRE (INCHES) | 20 x 12-12 BigBite™ |
| WING TIRE (INCHES) | |
| WEIGHT (LBS) | 653 |
| HEIGHT (INCHES) | 43.7 |
| LENGTH (INCHES) | 71.1 |
| WIDTH W/ CHUTE UP (INCHES) | 58.5 |
| TIRE-TO-TIRE WIDTH (INCHES) | 48.6 |
| PRODUCTIVITY (ACRES PER HOUR) | 3.27 |
| Dimensions with Catcher | |
| CATCHER STYLE | 2-bag |
| POWERED / NON-POWERED | Non-powered |
| CATCHER CAPACITY | 5.4 bushel |
| MOWER LENGTH W/ CATCHER | 91.4 |
| MOWER WIDTH W/ CATCHER | 69.5 |
